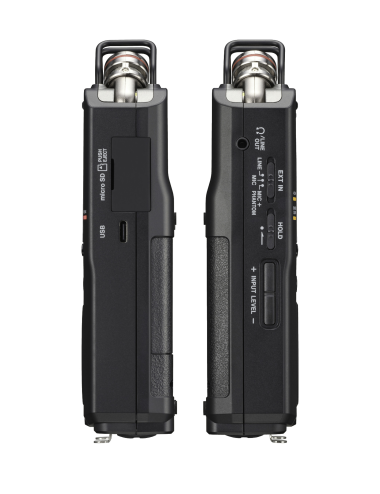

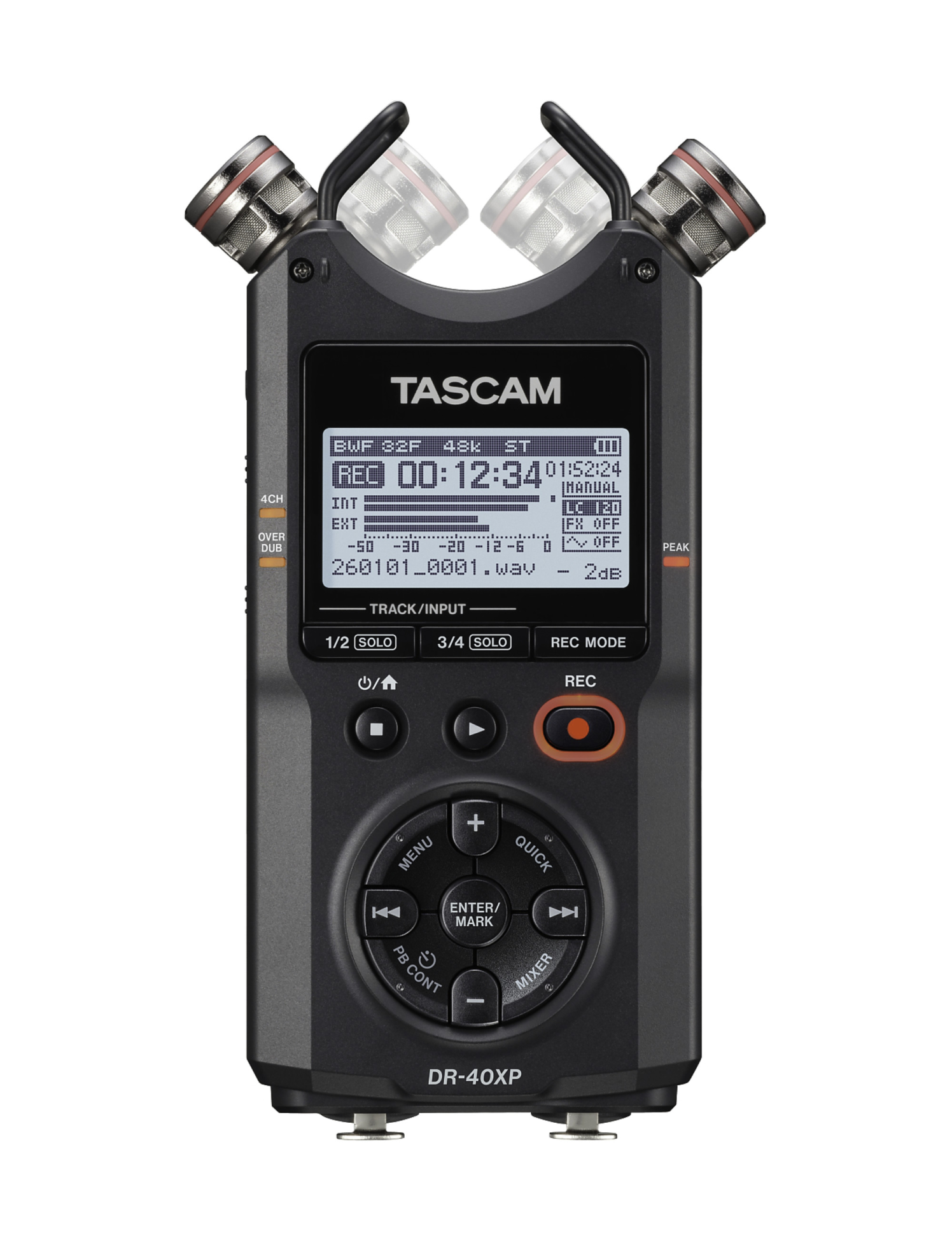

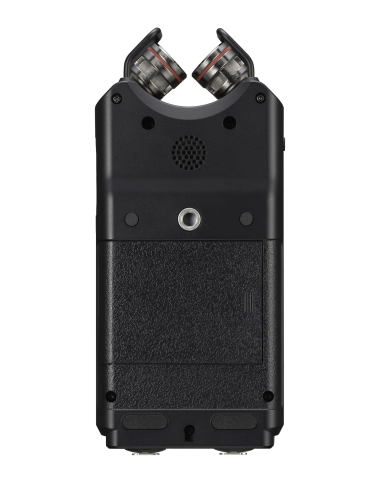

Tascam DR-40XP – Portable 4-track 32-bit float recorder with adjustable microphones and XLR inputs
The Tascam DR-40XP is a professional field recorder designed for musicians, content creators, filmmakers, podcasters, and sound recordists seeking a compact yet highly capable solution. With its 32-bit floating-point recording, adjustable stereo microphones, and ultra-low-noise HDDA preamps, it ensures clean, distortion-free audio capture even in demanding environments.
Featuring four tracks, overdub and re-record functions, internal mixdown, and XLR/TRS combo inputs with phantom power, the Tascam DR-40XP adapts to every situation: interviews, concerts, rehearsals, sound effects, cinematic ambience, voice-overs, or music creation. The 32-bit float format removes the risk of clipping and eliminates the need for critical input level adjustments.
Designed with videographers and YouTubers in mind, the Tascam DR-40XP includes a synchronization slate tone, a mini-jack line output, and adjustable AB or XY microphones, offering either wide immersive stereo or focused capture for interviews and face-to-camera recording.
With up to 30 hours of battery life, compatibility with microSD cards up to 512 GB, and a USB-C connection enabling use as an audio interface, it is a reliable and versatile tool for mobile and studio production alike.
Features & Specifications:
- Architecture & Audio:
- Portable 4-track recorder
- Conversion up to 32-bit floating-point / 96 kHz
- HDDA microphone preamps (–126 dBu EIN)
- Built-in stereo microphones (AB / XY) supporting 125 dB SPL
- Recording Formats:
- WAV/BWF: 44.1 / 48 / 96 kHz in 16-bit, 24-bit, or 32-bit float
- MP3: 32 to 320 kbps, 44.1 / 48 kHz
- Simultaneous 4-track recording
- microSD / microSDHC / microSDXC support up to 512 GB
- AB/XY Adjustable Microphones:
- Stereo unidirectional capsules
- AB (wide stereo) and XY (phase-coherent) configurations
- Enhanced RF shielding
- Ideal for soundscapes, music capture, interviews, and sound effects
- Inputs & Outputs:
- Two XLR/TRS combo inputs
- Phantom power: 24 V / 48 V
- Line-level support up to +24 dBu
- 3.5 mm mini-jack headphone/line output
- USB-C port for data transfer & 2×2 audio interface mode
- Recording Functions:
- Non-destructive overdub
- Internal stereo mixdown
- Overwrite (punch-in) function
- Low-cut filter: 40 / 80 / 120 / 220 Hz
- Automatic settings: Peak Reduction, Auto Level, Limiter
- 2-second pre-recording
- Auto-record start based on input level
- REC delay (5 or 10 s)
- Up to 99 track markers
- Automatic file creation
- Playback Functions:
- Variable Speed Audition (50–200%, pitch-corrected)
- A–B loop, Repeat, Playlist
- Playback equalizer
- ID3 tag display
- Built-in mono speaker
- Additional Features:
- Built-in reverb (6 types)
- Chromatic tuner
- File manager + File Divide
- Hold function to prevent unintended operation
- Backlit LCD screen
- Multilingual menu (including English/French)
- 1/4" mounting thread for tripods and mic stands
- Power & Battery Life:
- 3 × AA batteries (alkaline, lithium, or NiMH)
- USB power supply
- Optional AC adapter
- Up to 30 hours of operation
- Dimensions & Weight:
- 70 × 155 × 35 mm (microphones folded)
- 90 × 155 × 35 mm (microphones extended)
- 213 g without batteries / 282 g with batteries
Key Points:
- 32-bit float recording: impossible to clip, no need to adjust levels.
- Adjustable AB/XY microphones adaptable to any sound environment.
- Ultra-low-noise HDDA preamps (–126 dBu).
- Four simultaneous tracks with overdub, mixdown, and overwrite.
- XLR/TRS inputs with 24/48 V phantom for professional microphones.
- Up to 30 hours of battery life + microSD support up to 512 GB.
- USB-C audio interface (2×2) for Mac/PC/iOS.
- Compact and durable, ideal for music, video & field recording.
