M-1620 Pro d

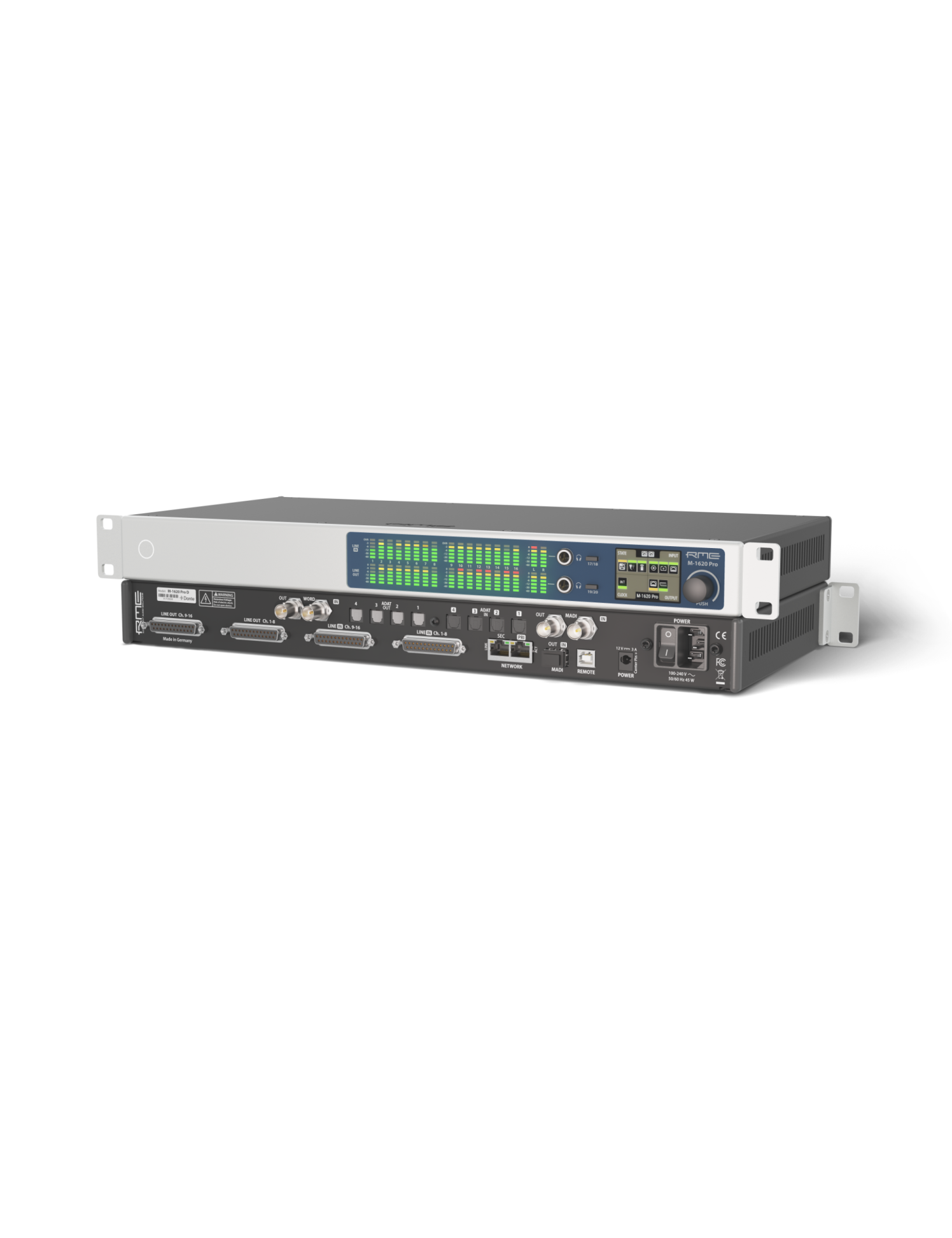

RME M-1620 Pro D – 16-Channel A/D, 20-Channel D/A Converter with Dante®, MADI and ADAT

The M-1620 Pro D is a high-end audio converter designed for demanding professional environments, integrating ADAT, Dante® and MADI technologies into a compact 1U 19’’ rack unit. With its 16 balanced line inputs and 20 analog line outputs, it enables seamless integration into any modern audio network, offering unrivaled flexibility and pristine conversion quality.

Its newly developed front panel combines precise LED level meters with a built-in display, and features two independent headphone outputs for direct monitoring. Thanks to its flexible internal routing and next-generation converters, the M-1620 Pro D stands out as an essential hub for fixed installations, broadcast facilities, and professional touring setups.

Built for maximum reliability, it offers multiple redundancy layers: AC power with monitored DC input, dual MADI connections and dual Dante® networking. Fully compatible with Audinate Dante Virtual Soundcard™, it can also operate in stand-alone mode with user presets. With SteadyClock FS technology, it ensures reference-grade clocking and maximum jitter immunity. Controllable via USB, network, or directly from the front panel, the M-1620 Pro D combines ease of use with advanced integration.

Specifications:

• 16 balanced line inputs, individually switchable up to +24 dBu


• 20 analog line outputs, DC-coupled with ultra-low distortion and > 110 dB channel separation


• 2 independent headphone outputs (6.3 mm jack) with adjustable level


• 4x ADAT I/O providing 32 digital channels


• Triple MADI: coaxial, optical (optional SFP) with full redundancy


• 64-channel Dante® connectivity via 2 Gigabit Ethernet ports


• Word Clock I/O with SteadyClock FS


• USB for firmware updates and remote control


• Advanced control via JSON API, MIDI SysEx and network software


• 19’’ rack format, 1U – robust and compact build



Key Features:

• 16 A/D and 20 D/A conversion with high-precision performance


• Dante®, MADI and ADAT connectivity for universal network integration


• Full redundancy: dual network, dual MADI, dual power supply


• SteadyClock FS technology for reference-grade jitter-free clocking


• Flexible control: front panel, USB, network and stand-alone presets
