Single DP-1

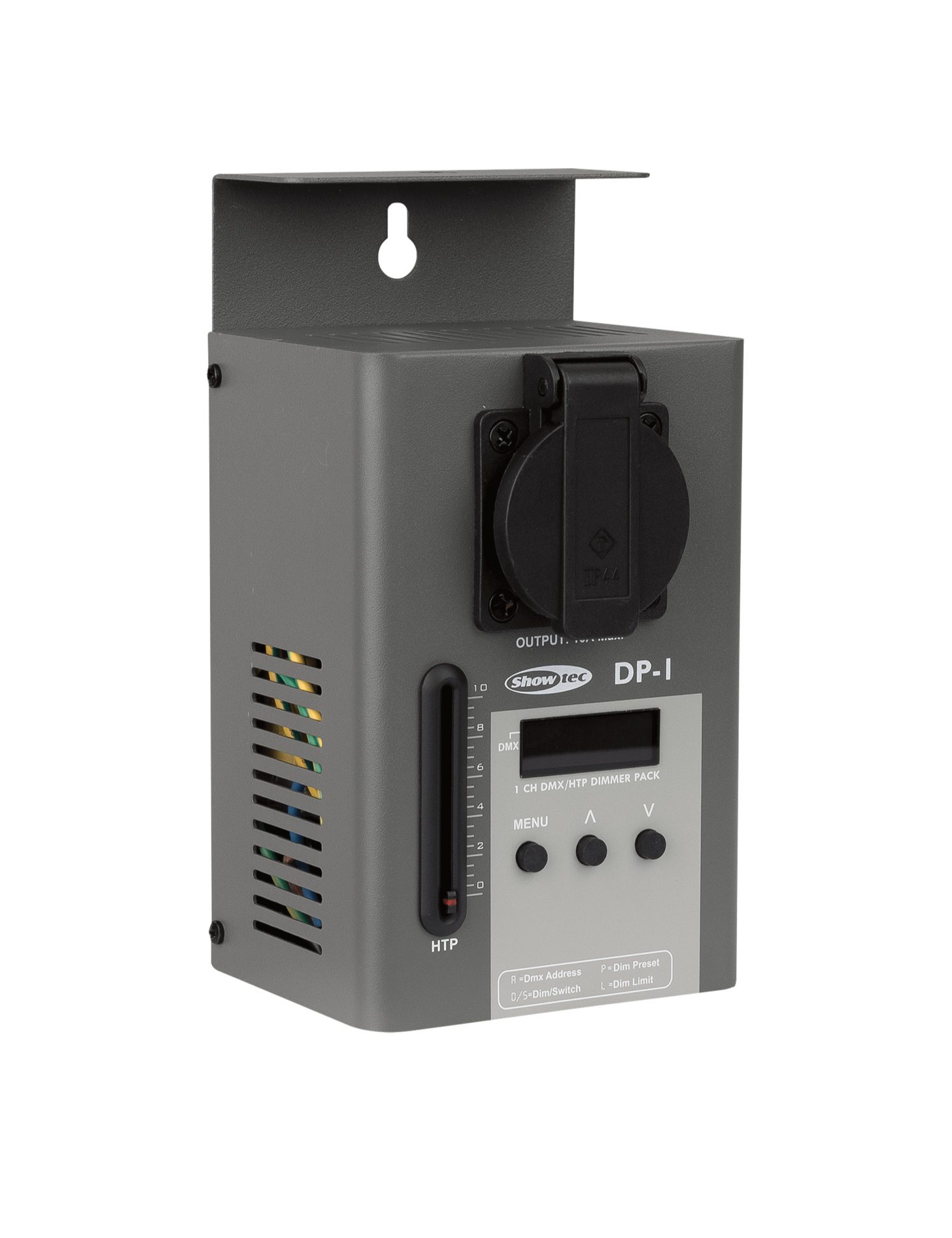

The Showtec Single DP-1 is a compact 1 channel power block, ideal for fixed or temporary installations requiring precise control of a lighting circuit. With a gradation cursor 50 mm, this switchpack combines the functions of variable intensity and switch in a robust and easy to install format.

This block can be used in manual mode or via DMX (1 channel) to adapt to all types of light configurations. It bears loads capacitive up to 10 A and inductive up to 3 A, enabling both conventional and resistive projectors to be managed. One preset and limit of variation allow precise adjustment. Ideal for use indoors, on structure or in wall mounting.

Characteristics:

• Reference modele : Single DP-1


• DMX Power Block 1 channel


• Control mode : DMX, Manual


• DMX channels : 1


• Intensity variable with fader 50 mm


• Function switch (On/Off)


• Limit and preset of variation


• Maximum consumption : 2300 W


• Exit current : 10 A capacitive / 3 A inductive


• Power connectors : Schuko IN / OUT (type F)


• DMX connector : XLR 3 pins (IN / OUT)


• Metal housing


• Dimensions (W x H x P): 80 x 195 x 100 mm


• Weight (kg) : 1.4


• IP classification IP20 (domestic use only)

Key Points:

• Double function dimmer/switch : ideal to adjust the intensity or simply activate/disable a lighting circuit


• Flexible control : works in DMX or manual mode with built-in fader 50 mm


• Compact and robust : durable metal format, designed for installation on wall or structure
