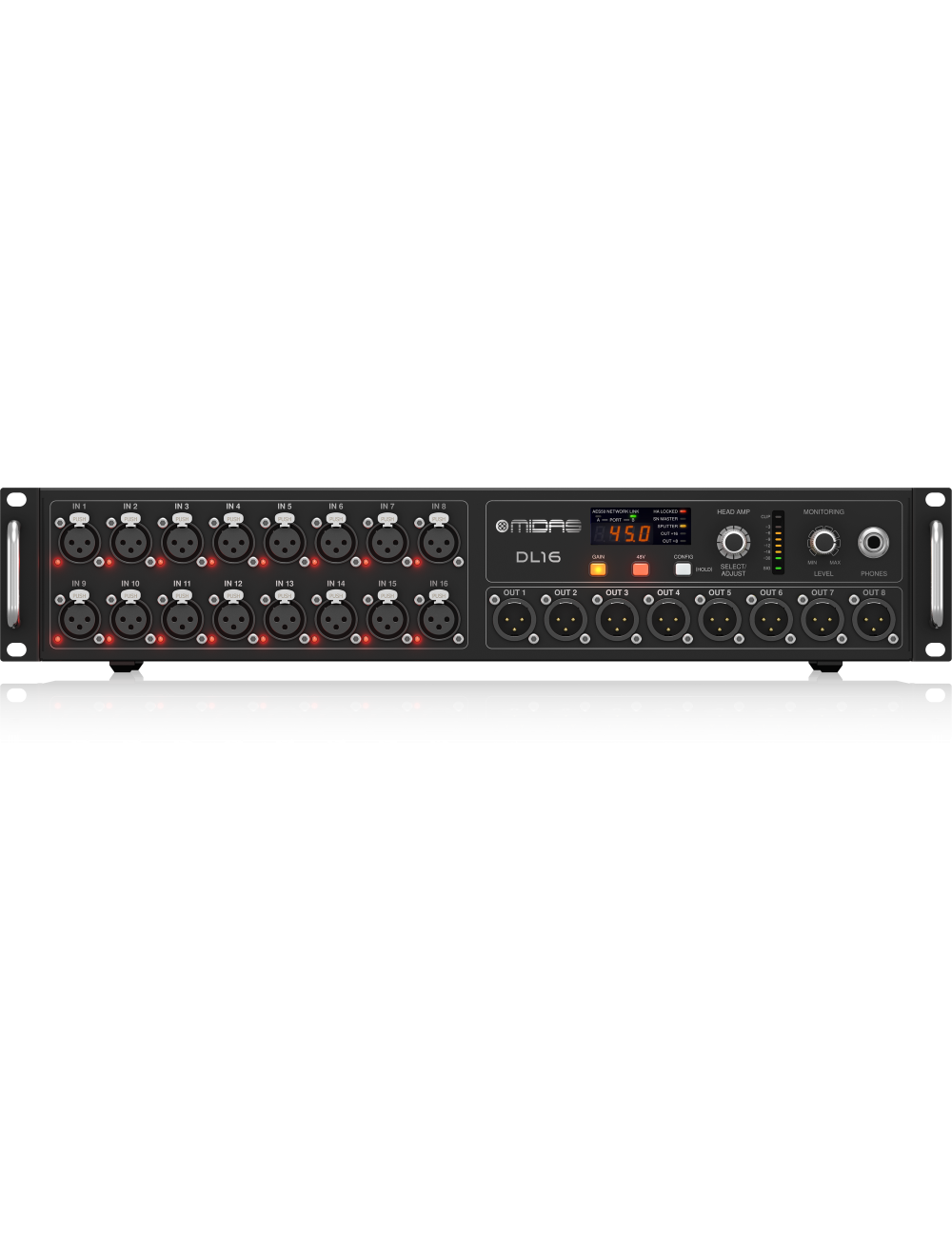

Midas DL16

The Midas DL16 is a professional digital stage enclosure designed for perfect integration with consoles MIDAS M32, Behringer X32 or any other AES50 compatible system. It offers 16 micro preamps MIDAS high-end remote, 8 XLR line outputs, and aES50 port in double link, for redundant or chain configuration. Ideal for stage, studio or fixed installation environments, the DL16 allows high quality digital audio management over long distances without signal loss.

The Midas DL16 is equipped with 16 micro preamps MIDAS digitally controlled, designed to capture each sound detail accurately. The legendary sound quality of MIDAS is found in each channel, with a extended dynamic response remarkable transparency and one ultra-low noise level. Thanks to remote control, these preamps can be controlled directly from the mixing console.

With two AES50 ports with cascade capacity (up to 100 m on CAT5e cable), the DL16 allows easy and fast integration in complex digital audio systems. It is possible to chain several DL16 enclosures to increase the number of inputs/outputs, or to use a redundant connection for more safety in critical live applications.

Characteristics:

• 16 micro preamps MIDAS digitally controlled


• 8 XLR line outputs symmetrical


• Two AES50 ports for cascade or redundant (up to 48 kHz)


• Compatible with MIDAS M32, Behringer X32/X Air and other products AES50


• Output headphones integrated with solo/monitor function on each input


• Ultranet output for Behringer P16 Personal Monitoring Systems


• Installation in rack 2U (kit included)


• Robust metal case, suitable for tours


• Digital cable with CAT5e network cable (up to 100 m)

Key Points:

• 16 micro preamps MIDAS high-end


• 8 analog outputs Symmetrical XLR


• Double AES50 connection for chaining or redundancy


• Output headphones integrated with individual monitoring


• Ultranet port for personal mix on stage
