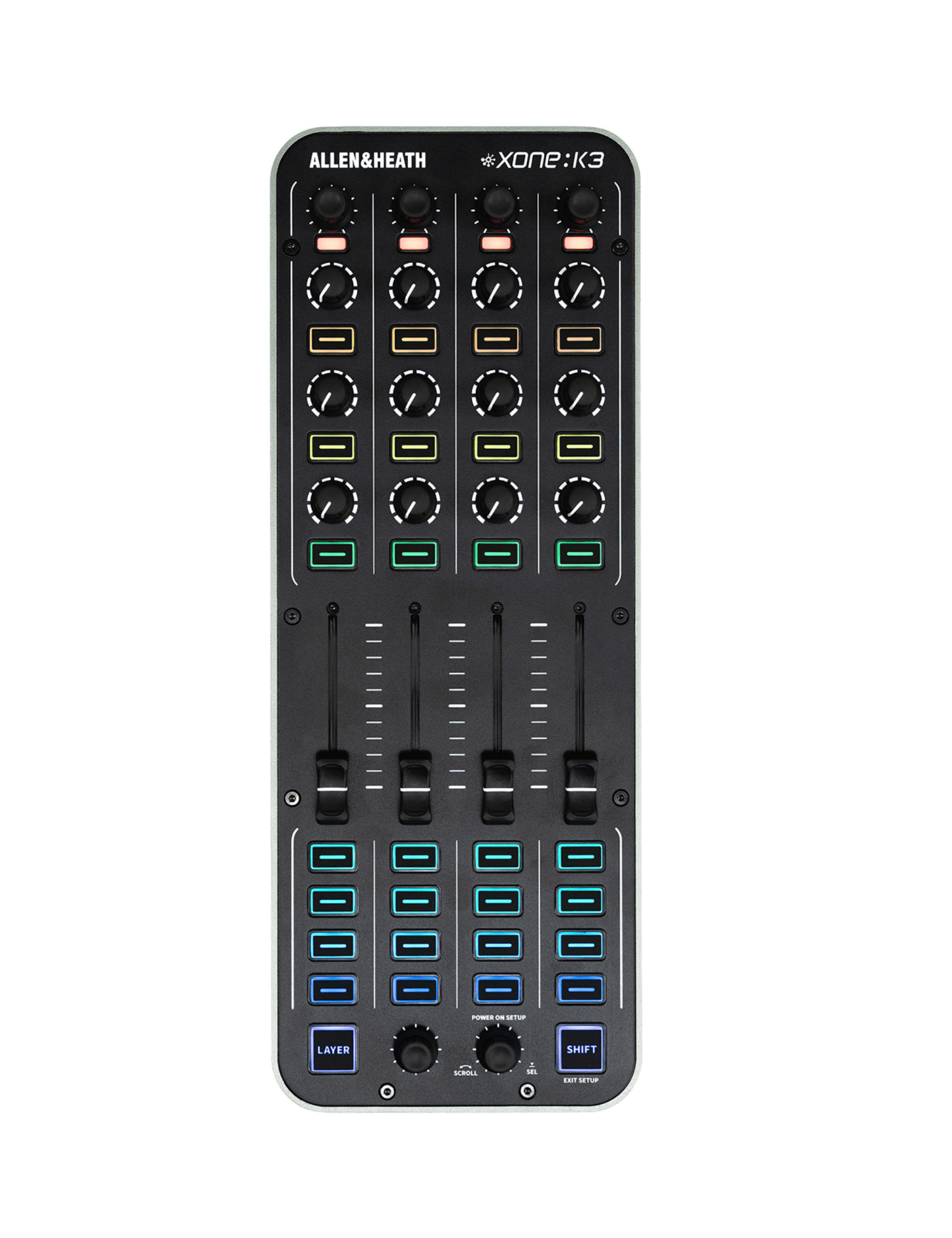

Allen & Heath Xone:K3 – 4-Channel Customizable MIDI Controller with 52 Physical Controls, USB-C and X:Link Connectivity, and Rugged Metal Chassis
The Xone:K3 represents the new generation of professional MIDI controllers from Allen & Heath, designed for DJs, producers, and performers seeking complete control over their software and hardware environment. Compact, solid, and ultra-flexible, it naturally succeeds the Xone:K2 while improving every aspect of workflow: ergonomics, connectivity, customization, and reliability.
With its 52 physical controls distributed across 3 independent layers, the Xone:K3 provides up to 174 assignable MIDI parameters — perfect for complex hybrid setups, live mixing, or complete DAW control. The 60 mm faders ensure smooth mix transitions, while the endless encoders and precision pots deliver optimal control over effects, filters, or macros. RGB backlit buttons and LED push encoders provide immediate and customizable visual feedback according to your mapping.
Thanks to the dedicated Xone Controller Editor app, the K3 offers total customization: every control can be configured as MIDI CC or Note, with adjustable color feedback, layers, and button behavior. Mappings can be saved to internal memory, your library, or exported for easy sharing between setups. Fully compatible with existing K1 and K2 mappings, the Xone:K3 integrates seamlessly into established rigs.
In terms of connectivity, it includes both a USB-C port (bus-powered) and two X:Link ports, allowing direct connection to other Allen & Heath products such as the Xone:96, PX5, 43C, or 23C. In star-topology mode, multiple K3 units can be networked together and recognized independently by your software. Finally, its diecast metal chassis, nutted pots, and tactile switches ensure exceptional durability for both club and studio environments.
Specifications:
- Type: Class-compliant DJ MIDI-over-USB controller (plug-and-play for Mac, Windows, iOS, Android)
- Number of channels: 4 channels with 3 independent user layers (up to 174 assignments per mapping)
- Physical controls: 52 total: 30 buttons (CC/Note), 12 rotary pots, 6 endless encoders with push-button, 4 x 60 mm linear faders
- Visual feedback: RGB backlighting on buttons and encoders with customizable color feedback
- Software: Free Xone Controller Editor app for mapping, layer management, and configuration storage
- Connectivity: 1 x USB-C port (bus-powered), 2 x X:Link ports for connection with Xone:96, PX5, 43C, 23C, or K2 mixers
- Mapping compatibility: Backward compatible with Xone:K1 and Xone:K2
- Chassis: Rugged diecast metal with nutted pots and tactile switches
- Dimensions (W x D x H): 440 × 190 × 90 mm
- Weight: 1.7 kg
- Power supply: USB bus-powered (no external power required)
Key Points:
- Total control: 52 physical controls and 3 layers to manage up to 174 MIDI parameters.
- Wide compatibility: Works with macOS, Windows, iOS, and Android — no drivers required.
- Advanced customization: Full mapping via Xone Controller Editor with assignable RGB feedback.
- Flexible connectivity: USB-C and X:Link ports for direct integration with Allen & Heath mixers.
- Premium design: Durable metal chassis, nutted pots, and 60 mm faders built for heavy use.
