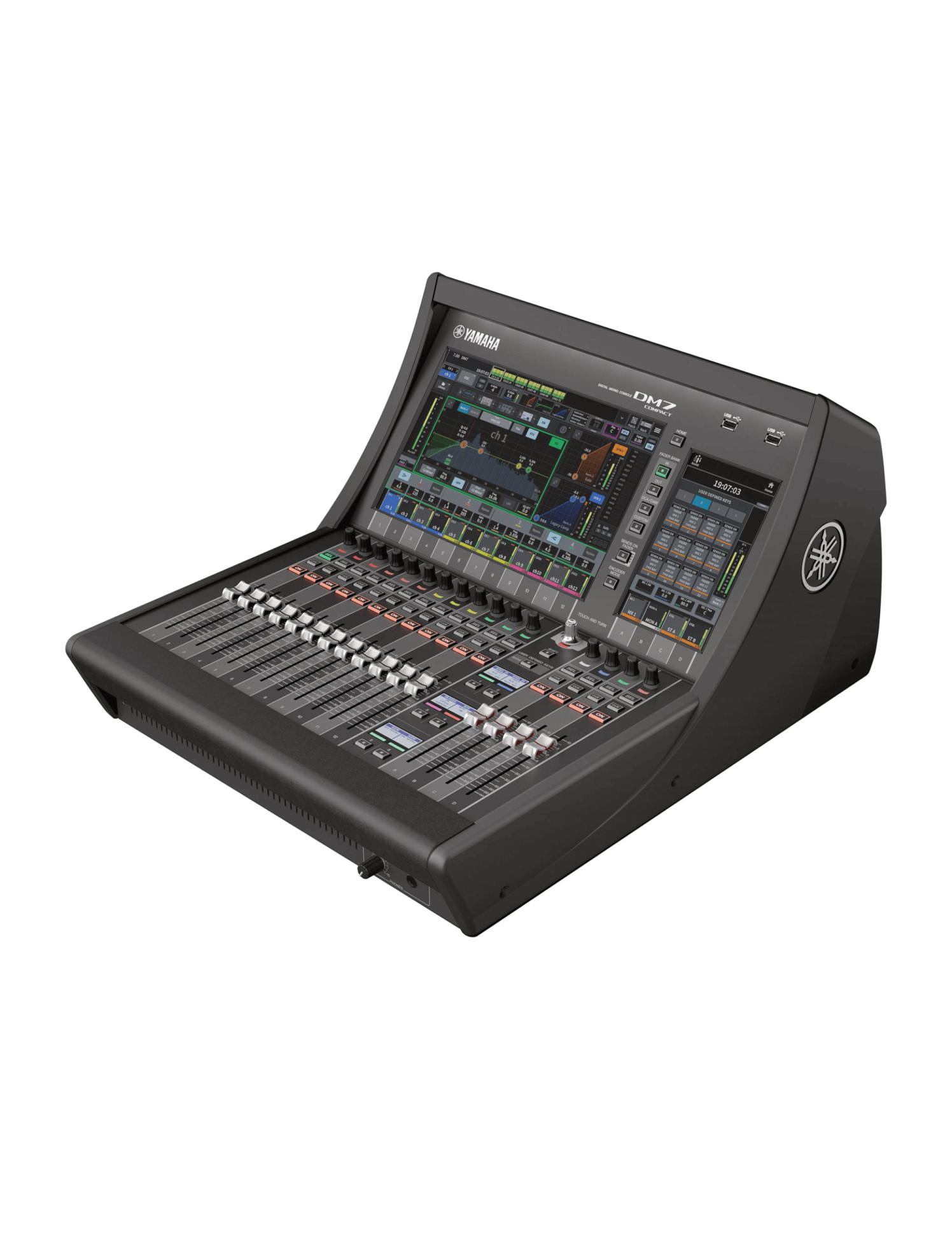

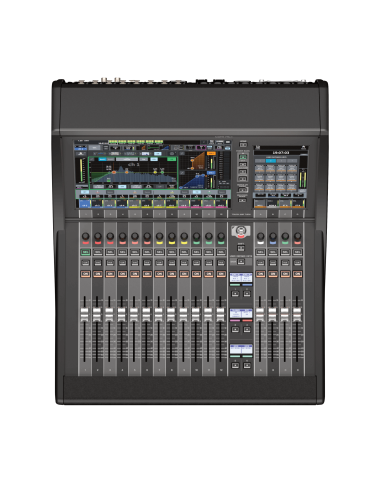

YAMAHA DM7C - 72 channel compact digital mixing console with Dante, touch screens and power source redundant
The Yamaha DM7C (DM7 Compact) is a professional digital mixing console combining power, compactness and intuitiveness. From the new DM7 series, it was designed to meet the most varied requirements, from live to broadcast, to fixed installation and corporate events. With his 72 input channels, 48 mixing buses and native Dante compatibility, the DM7 Compact offers exceptional audio processing and routing versatility in a reduced format, easily transportable or mounted in rack with the optional RK1 kit.
Equipped with two multipoint touch screens (one main screen of 12.1, and a secondary screen of 7) 12 motorised faders + 4 assignables and a careful ergonomics, it allows fluid navigation and rapid operation. The DM7 Compact also benefits from the DSP processing power and the high-end audio quality of Yamaha, with efficient converters and ultra-low latency, for a high precision sound rendering in all situations.
Integrated 16 inputs and 16 analog outputs uSB audio interface 18x18, 1 extension port PY and one aES/EBU digital output, it can easily adapt to any type of technical environment. Its direct compatibility with stageboxes Rio D3 via Dante allows to transport inputs/outputs to the stage while maintaining a total remote control, which enhances its flexibility for modular live configurations.
Thanks to his power source the Yamaha DM7C is a safe choice for professionals looking for an integrated redundant, robust design and many automation and customization possibilities compact, reliable and ready to face all field challenges.
Characteristics:
- Digital mixing console professional
- 72 channels single mixing input
- 48 mixing buses + 12 Matrix + 2 Stereo Bus
- 16 motorised faders (12 + 4 assignables)
- 1 touch screen multipoint 12.1
- 1 touch screen multipoint 7"
- 16 entries analogues (XLR/TRS)
- 16 outputs physical analogues
- 144 entries / 144 outputs via integrated Dante interface
- 1 AES/EBU digital output (2 channels)
- USB Audio Interface 18 inputs / 18 outputs
- 1 extension slot for card pY format
- Power source redundant integrated
- Compatibility with stageboxes Rio D3 via Dante
- Remote control via dedicated Yamaha software (Provisionary, DM7 Editor)
- Dimensions (W x H x P) : 468 x 324 x 564 mm
- Weight 16.5 kg
Key Points:
- Compact Digital Console with 72 entrance channels and 48 bus mix
- Double multipoint touch screen (12.1" + 7") for intuitive control
- Integration Dante native with 144 I/O network
- Direct compatibility with digital stageboxes Rio D3
- Power source redundant integrated and possible rack mounting (kit RK1)
