Allen & Heath Qu-5

Allen & Heath Qu-5 - Compact 96 kHz digital console with XCVI engine

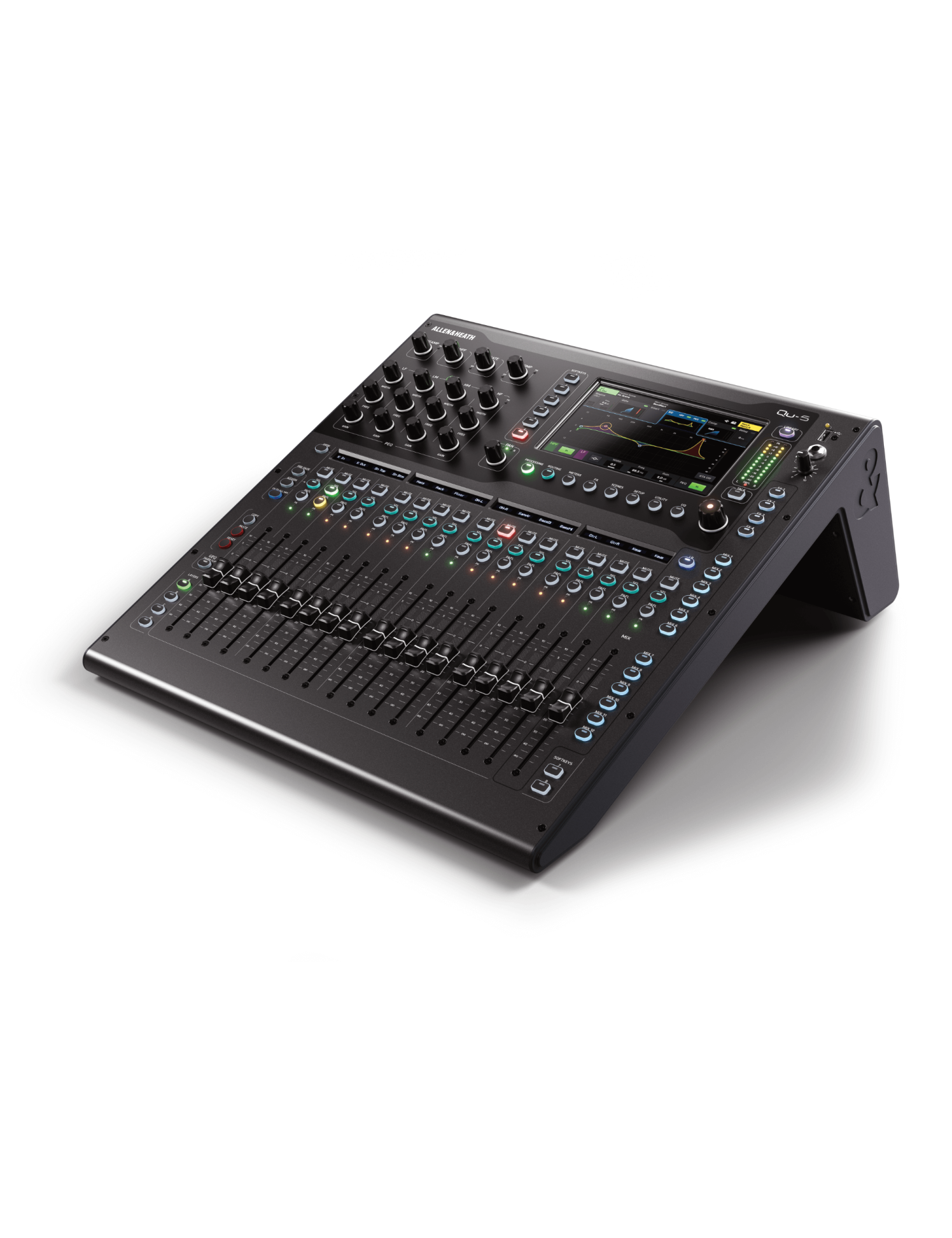

The Allen & Heath Qu-5 embodies a new generation of digital consoles combining compactness, power and user-friendliness. Taking back the iconic ergonomics of the Qu series, it now incorporates a 96 kHz XCVI engine, able to manage up to 38 mixing inputs with a dEEP treatment ultra-performance, from the dLive professional range. The console offers a fully redesigned user interface, accessible via a capacitive touch screen 7, associated with 17 motorised faders and 4 layers customizable, for an intuitive and fast mixing experience.

With 16 micro/combo preamps, of 12 XLR outputs, of 6 stereo effects engines, and port SLink 128×128 for the Everything I/O extension, the Qu-5 is positioned as a solution modular and scalable for live sound, fixed installation or recording. Thanks to its uSB-C multichannel connectivity (32×32), its compatibility SD and USB-A for multitrack or stereo recording, and its gain and anti-larsen assistants, it accompanies you with remarkable efficiency in all situations.

Thought for the demanding sound engineers, musicians and technicians, the Qu-5 focuses on speed of implementationworkflow optimization and sound quality i can't blame you. She benefits as a bonus Automatic Mic Mixer integrated 32 channels, ideal for conferences or TV sets. Its format compact and rackable 19 (optional kit) makes it a strategic choice for mobile users or restricted technical authorities.

Characteristics:

• Digital console 38 entries and 24 outputs


• Engine XCVI 96kHz based on FPGA


• Support for dEEP treatment


• 6 stereo FX engines with dedicated returns


• Assistants: Gain Assistant & Feedback Assistant


• Automatic Mic Mixer 32 channels integrated


• 38 entries (32 mono/link, 3 stereo)


• 12 mix bus (6 mono/link, 6 stereo) + LR


• 4 matrices mono/link


• 4 layers customizable

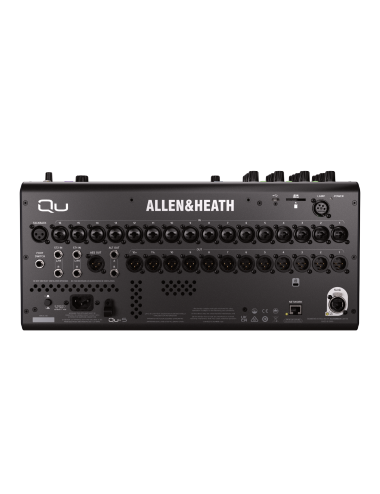

• 16 XLR/Jack combo inputs


• 2 stereo line inputs (Jack 6.3 mm TRS)


• 12 XLR outputs + 2 TRS + 1 AES3


• 1 exit headphones + 1 talkback input


• SLink 128×128 for Everything I/O


• USB-C 32×32, stereo USB-A, SD card (16×16 @ 96kHz)


• Capacitive touch screen 7


• 17 motorized faders 100 mm


• Channel displays + chromatic vumeters


• 8 keys SoftKeys Customizable


• Remote control application (Qu-Pad, Qu-You, MixPad)


• Compatible double pedal (assignable)


• 19-rack format (optional kit)


• 12V lamp socket


• Dimensions (W x H x P) : 440 x 213 x 476 mm


• Weight : 10 kg

Key Points:

• Engine XCVI 96 kHz with DEEP Processing and advanced FX


• 38 mixing inputs, 12 buses + 4 matrices + LR stereo


• Touch interface 7 motorised faders on 4 layers


• Registration multichannel via USB-C, SD or USB-A


• Compatible Everything I/O via SLink, Dante version available (Qu-5D)
