Allen & Heath Qu-6

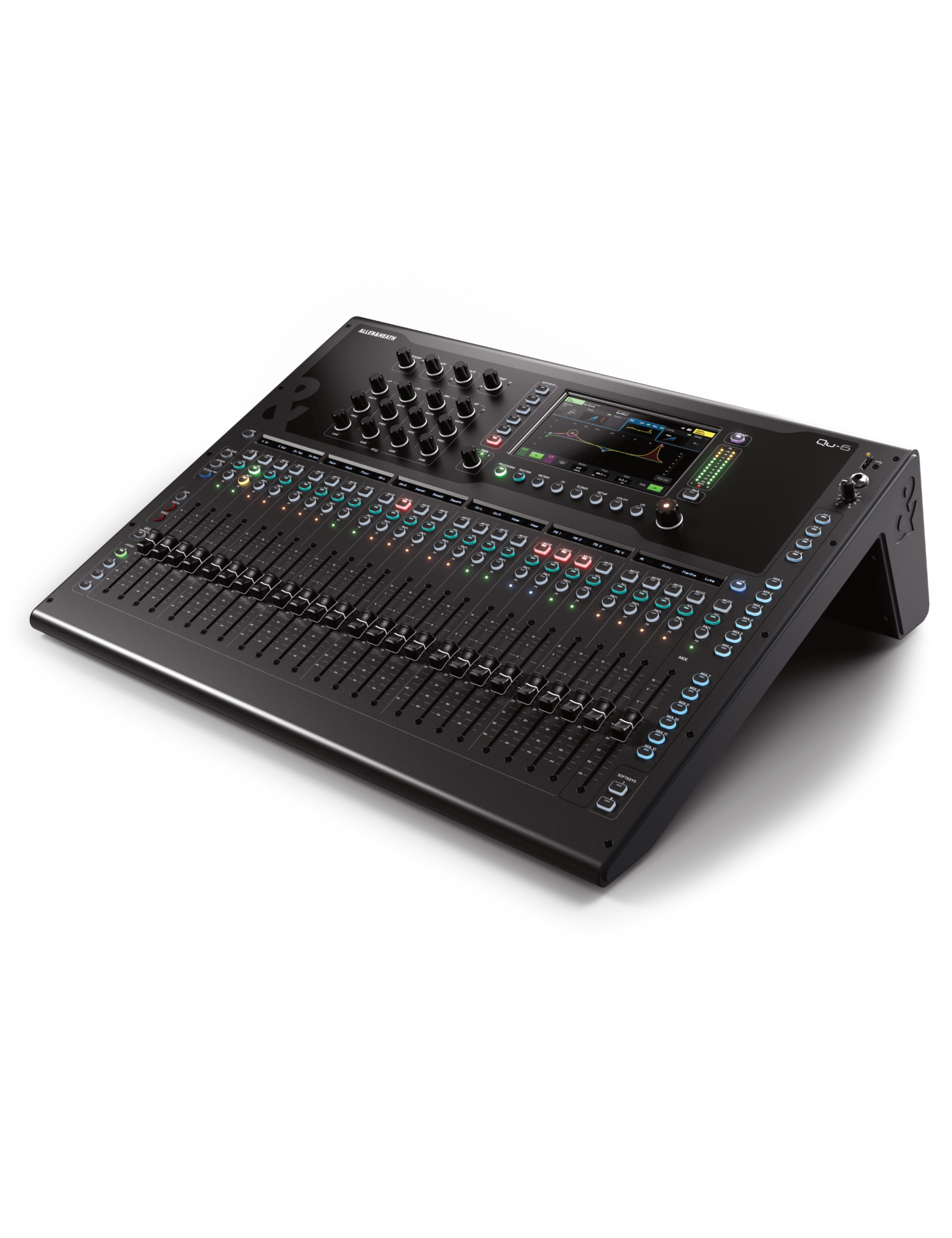

Allen & Heath Qu-6 - Compact Digital Console 96 kHz 38 inputs / 24 outputs with 25 motorized faders

The Qu series makes his big comeback with the Qu-6, a digital console supervised by FPGA XCVI engine in 96 kHz, integrating the latest Allen & Heath audio innovations. This new generation offers 38 entries to mix, 12 mix starts, 4 matrices, and 6 stereo effects engines with dedicated returns, all accessible via a capacitive touch screen of 7 and 25 motorized faders over 4 customizable layers. It combines processing power, flexibility and friendliness.

Qu-6 benefits from redesigned hardware components, of micro reworked preamps and high performance AD/DA converters for irreproachable audio loyalty. The user interface has been completely redesigned for better readability and responsiveness, and each channel now has a name/type/number display and a chromatic viewmeter. With the Qu-MixPad and Qu4You app, the console can be remotely controlled via Mac, PC, iOS or Android.

With its compatibility Everything I/O, its intelligent Gain and Feedback assistants, support for DEEP Processing and Automatic Microbial Mixing (AMM), as well as its USB/SD recording options (up to 32 tracks), the Qu-6 is designed to manage live performances, fixed installation or broadcast with rapid configuration and great scalability. A Dante (Qu-6D) version is available for network integration.

Characteristics:

• Digital console 38 entries and 24 outputs


• Engine XCVI 96kHz based on FPGA


• Support for dEEP Processing and RackExtra FX


• 6 stereo FX engines with dedicated returns


• Assistants: Gain Assistant & Feedback Assistant


• Automatic Mic Mixer 32 channels integrated


• 38 entries (32 mono/link, 3 stereo)


• 12 mix bus (6 mono/link, 6 stereo) + LR


• 4 matrices mono/link


• 4 layers customizable


• Output main LR

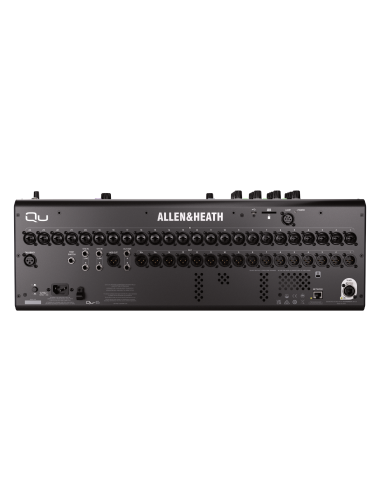

• 24 entries combo XLR/jack Mic/Line


• 2 stereo line inputs (Jack 6.3 mm TRS)


• 16 XLR outputs + 2 TRS + 1 AES3 digital stereo output


• Output headphones, talkback


• SLink 128×128 for Everything I/O


• USB-A stereo, SD card (16×16 @ 96kHz)


• USB-C 32×32 interface for multitrack recording/reading


• Capacitive touch screen 7


• 25 motorised faders (100 mm)


• Channel displays + chromatic vumeters


• 8 keys SoftKeys Customizable


• Remote control via Qu-MixPad & Qu4You (Win/macOS/iOS/Android)


• Single/double configurable pedal connection


• 19-rack format (optional kit)


• 12V lamp socket


• Dimensions (W x H x P) : 609 x 213 x 476 mm


• Weight : 13.5 kg

Key Points:

• Engine XCVI 96 kHz with treatment DEEP integrated


• 38 entries mixing and 12 starts + 4 matrices


• 25 motorized faders, touch screen 7 intuitive interface


• Registration uSB-C multitrack (32x32) + SD + stereo USB-A


• Compatible Everything I/O via SLink
