Allen & Heath Qu-5D

Allen & Heath Qu-5D - Compact 96 kHz digital console with XCVI engine and Dante interface 16 x 16 channels

The Allen & Heath Qu-5 takes over all the features of the new Qu series, incorporating a Dante 16×16 interface native, operating in 96 kHz or 48 kHz, for a professional IP audio network integration. Ideal for installed environments, audio-visual controls or events requiring IP audio connectivity, this version allows route up to 16 entrances and 16 exits via Dante, while retaining access to the qu platform powerful and versatile.

Like the standard Qu-5, she embarks the engine XCVI 96 kHz with dEEP treatment, 38 mixing inputs, 12 mixes + 4 matrices, as well as 6 stereo effects engines. The port SLink 128×128 remains available, allowing'extension via Everything I/O. Users benefit from 17 motorised faders touch interface 7, of 4 layers customizable, and many tools assisted (Gain Assistant, Feedback Assistant, 32-channel AMM) that make this console both efficient, intuitive and quick to deploy.

The dante connection is insured by a etherCon lockable port, ensuring maximum stability in both live and installation. Thanks to its recording options USB-C, USB-A and SD, the Qu-5D also allows studio quality multichannel recording, while offering a integrated network solution without external housing.

Characteristics:

• Digital console 38 entries and 24 outputs


• Engine XCVI 96kHz based on FPGA


• Support for dEEP treatment


• 6 stereo FX engines with dedicated returns


• Assistants: Gain Assistant & Feedback Assistant


• Automatic Mic Mixer 32 channels integrated


• 16×16 Dante integrated via EtherCon port (96/48 kHz)


• 38 entries (32 mono/link, 3 stereo)


• 12 mix bus (6 mono/link, 6 stereo) + LR


• 4 matrices mono/link


• 4 layers customizable

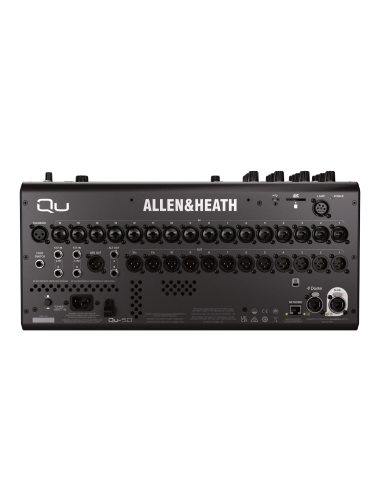

• 16 XLR/Jack combo inputs


• 2 stereo line inputs (Jack 6.3 mm TRS)


• 12 XLR outputs + 2 TRS + 1 AES3


• 1 exit headphones + 1 talkback input


• SLink 128×128 for Everything I/O


• USB-C 32×32, stereo USB-A, SD card (16×16 @ 96kHz)

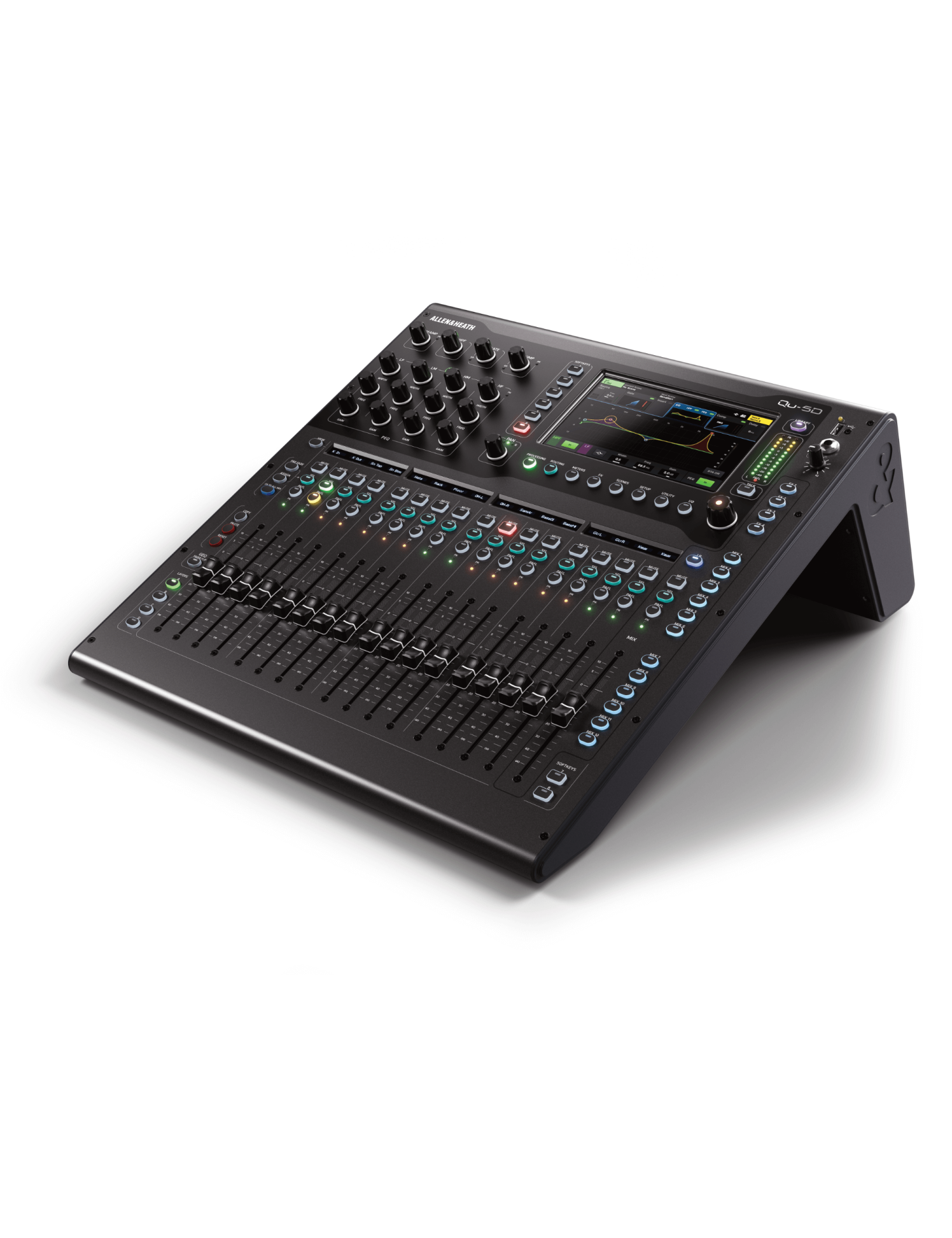

• Capacitive touch screen 7


• 17 motorized faders 100 mm


• Channel displays + chromatic vumeters


• 8 keys SoftKeys Customizable


• Remote control application (Qu-Pad, Qu-You, MixPad)


• Compatible double pedal (assignable)


• 19-rack format (optional kit)


• 12V lamp socket


• Dimensions (W x H x P) : 440 x 213 x 476 mm


• Weight : 10 kg

Key Points:

• Interface Dante 16×16 native integrated (96 or 48 kHz)


• 38 entries mixing, integrated XCVI 96 kHz and FX engine


• Rethought user interface: screen 7", 17 motorized faders


• Connection Everything I/O via port SLink 128×128


• Multichannel recording via USB-C, SD or USB-A
