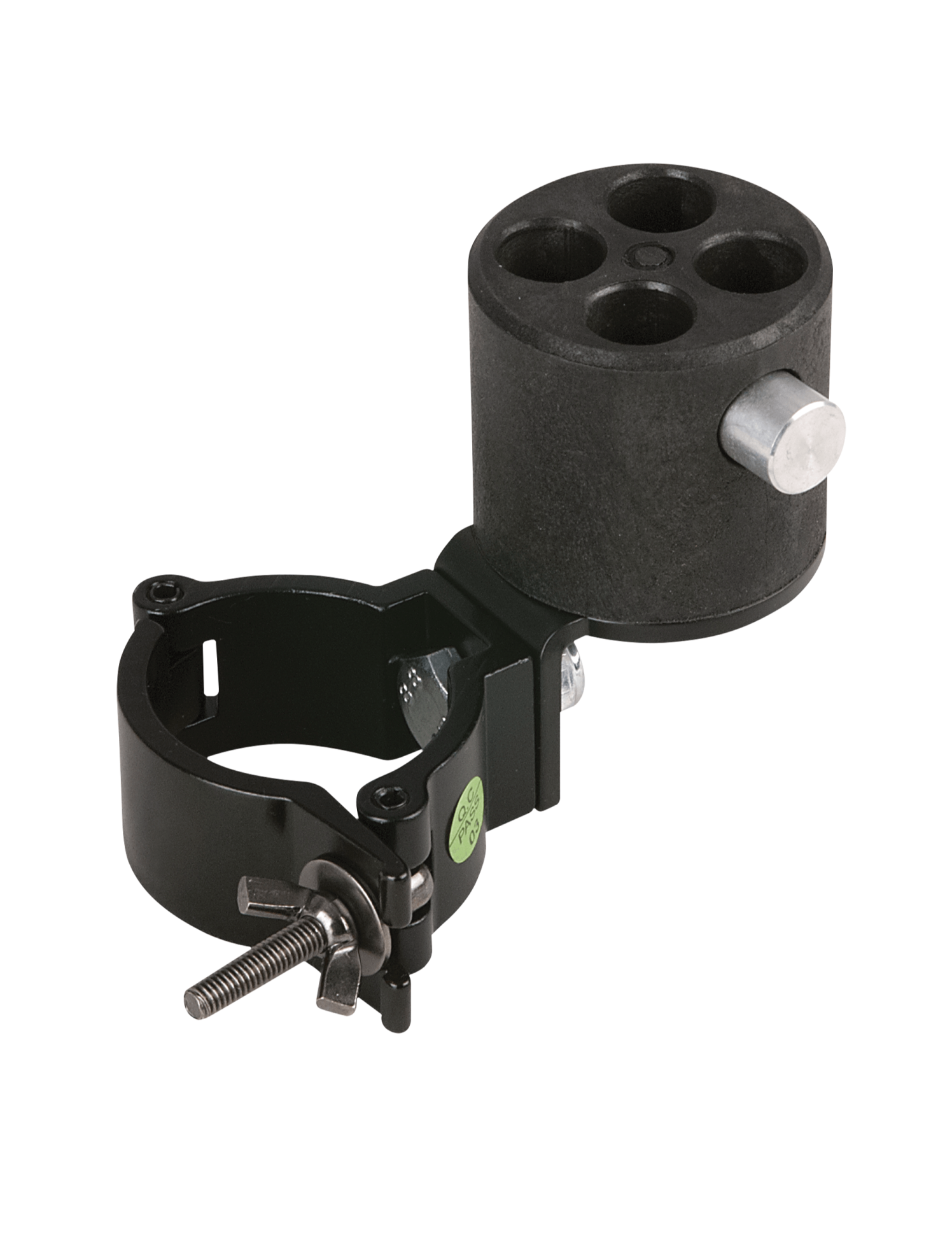

Wentex Sloping support with truss collar 50 mm

The Wentex Sloping support with 4-way connector is a versatile piece designed to attach a telescopic curtain support to a stand or a door 50 mm standard truss tube. Thanks to its integrated half-coupler, this support can be positioned at any height, on any tube compatible with the system Pipe & drape, offering a great flexibility in your stage arrangements or your temporary facilities.

Its 90° design allows create deported attachment points for your curtain supports, without requiring an additional vertical height. This component fits perfectly into the structures Pipe & drape Wentex and allows horizontal axes to be added even in restricted spaces or on structures of the type truss.

Characteristics:

• Reference modele : Wentex Sloping support with 4-way connector


• Length : 150 mm


• Height : 80 mm


• Compatible diameter : 50 mm


• Colour : Black


• Compatibility : Wentex systems Pipe & drape


• Material : Aluminium, Plastic


• Threading : M10


• Compatibility : Wentex Upright (amounts), curtain supports of Pipe and Drape systems, truss 50 mm


• Weight : 0.33 kg
