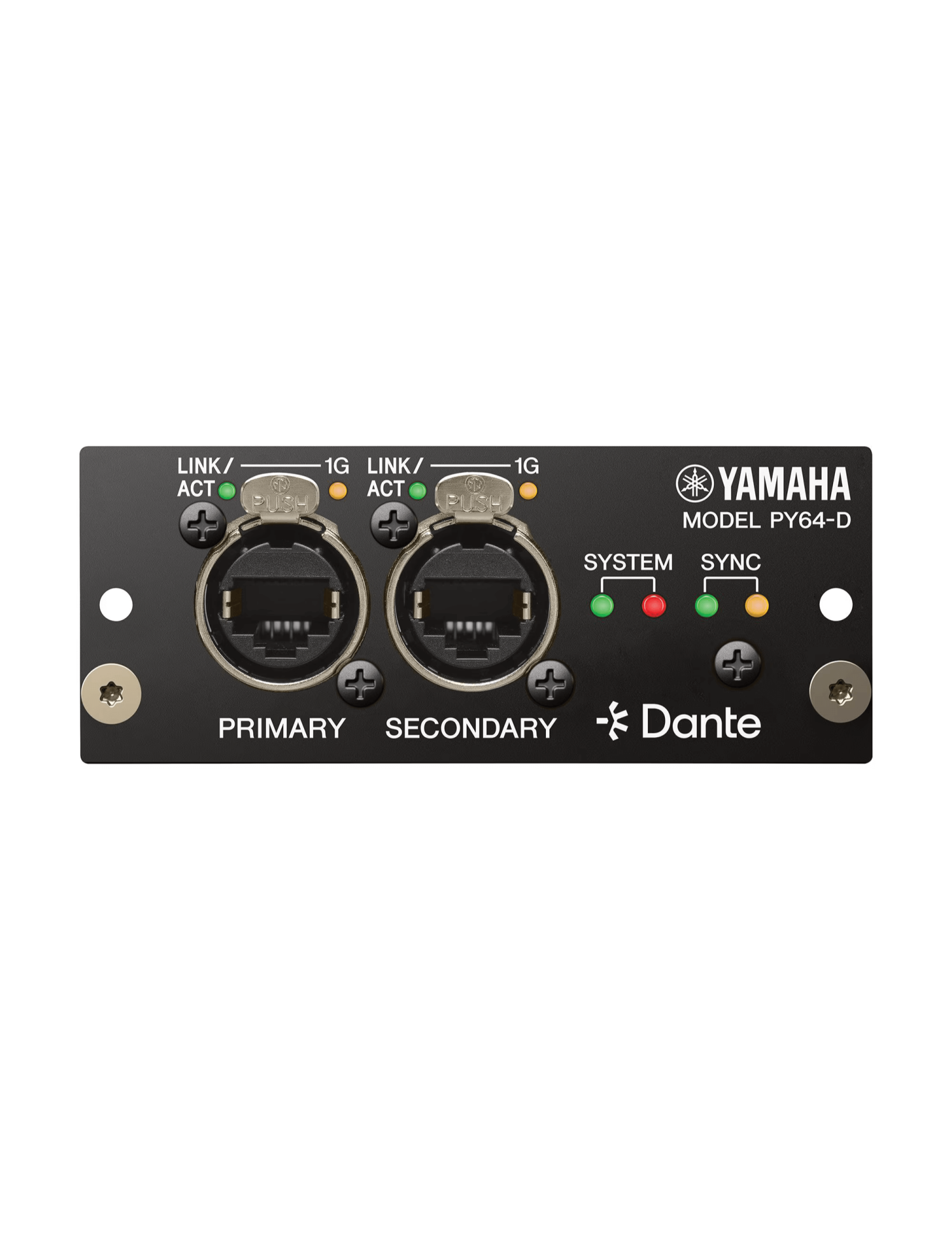

Yamaha PY64-D

The PY64-D is a professional extension card designed to add connectivity Dante 64 channels (64 inputs / 64 outputs) with compatible Yamaha digital systems, such as consoles DM7 or the processors of the brand. It allows high resolution audio transport 32 bits / 96 kHz, ideal for installations requiring a stable and accurate multichannel digital audio stream.

Thanks to its sampling frequency converters (SRCs) integrated, the card can interconnect equipment operating at different frequencies without compromising signal quality, which greatly simplifies integration into complex audio environments. The dante primary and secondary ports ensure reliable network redundancy and better operational security.

Compact and light, PY64-D inserts into the location PY compatible Yamaha consoles. It is an ideal solution for broadcast, live sound or fixed installations demanding extended Dante compatibility and irreproachable sound quality.

Characteristics:

• Map extension for DM7 PY slots


• Number of channels: 64 inputs / 64 outputs


• Protocol : Dante (main/secondary port)


• SRC converters integrated (sampling rate converter)


• Resolution : 32 bits / 96 kHz


• Dimensions (W x H x P) : 100 x 40 x 135 mm


• Net weight 0,3 kg

Key Points:

• Dante expansion card 64 channels (64 in / 64 out)


• Audio quality 32 bits / 96 kHz with integrated SRC


• Primary and secondary Dante ports with redundancy


• Compatibility with yamaha consoles with PY slot
