Power and sound coverage without loss
With the LINEAR 9, HK AUDIO offers a comprehensive professional sonorization solution that sets new standards for acoustic performance, scope and scalability. No less than 5 different models make up this new range, three broadband speakers and two bass boxes for a complete optimization of your façade and return configuration, no matter what type of application.
A Mac and PC-compatible software application offers total synergy between LINEAR systems for advanced remote control of DSP, easy to use and flexible. The high-performance DSP is controlled via an Ethernet cable linking the entire system and allowing you to adjust and optimize your configuration to get the perfect rendering.
The development of this new class of speakers takes into account the growing needs and requirements of service companies, the environment of the event and sound professionals in terms of versatility and performance technologies, acoustics and mechanical, offering outstanding durability and uncompromising reliability.
Features and features:
Amplified broadband sonorization
Application: facade and return
Speaker diameter: 12" / tweet 1.7"
Frequency response: 67 Hz - 19 kHz
Cutting frequency: 1.6 kHz
Power: 700W bi-amplification in Class D
Output level max. 128 dB SPL
Dispersal: 70° H x 50° V, pivotable flag
Mounting on foot with 35 mm base or floor in return mode
5 x M8 Inserts for air suspension
Mounting angles on foot: 7° / 3°
2 x transport handles
DSP treatment: volume, limiter, high-pass filter, mute, pass, delay, equalization
Line input / Thru output on XLR 3 pins
Output DSP Out on XLR 3 pins
Entered / RJ45 Ethernet output drives remote control
Quick access button to preset
Dimensions (W x H x P): 370 x 670 x 310 mm
Weight (kg): 20.5
Full-range active PA speaker, 15-inch speaker, 700W RMS Class D power, bluetooth, user presets
Speaker activates 12" 700W with Bluetooth, TWS and EQ Contour. Powerful, lightweight, with metal grid and ergonomic handles
2-way powered PA speaker, 15-inch with DSP and Bluetooth 5.0, 1300W power
2-way, 10-inch, ART 900 series with Bluetooth, remote touch screen and controllable, 2100W peak power
12-inch, 2-way powered loudspeaker, 1100W, frequency range 52Hz–20kHz, max SPL 134dB
Yamaha DXR12 Mk3 – Compact 12” 2-way powered loudspeaker, 2000 W Class-D amplification, 96 kHz DSP, FIR-X™ tuning, Drive Motion Calibration™, FOH/MONITOR auto-detection modes, D-Remote app control, Bluetooth® streaming, 134 dB SPL.
Yamaha DXR10 Mk3 – Compact 10” 2-way powered loudspeaker, 2000 W Class-D, 96 kHz DSP, FIR-X™ technology, Drive Motion Calibration™, FOH/MONITOR modes with automatic detection, D-Remote app control, Bluetooth® streaming, 132 dB SPL.
Yamaha DXR15 Mk3 – 2-way active 15” speaker, 2000 W Class D, 96 kHz DSP, Bluetooth® 5.0, FIR-X™ technology, max SPL 134 dB, 52° monitor angle, professional performance with powerful bass and mobile control.
12-inch active full-range 2-way PA speaker, 1200W power and Bluetooth streaming
2-way, 15-inch wide-band powered loudspeaker, power 1100W
18-inch amplified sonorization bass box, LINEAR series 9, Class D power 1100W and network connection

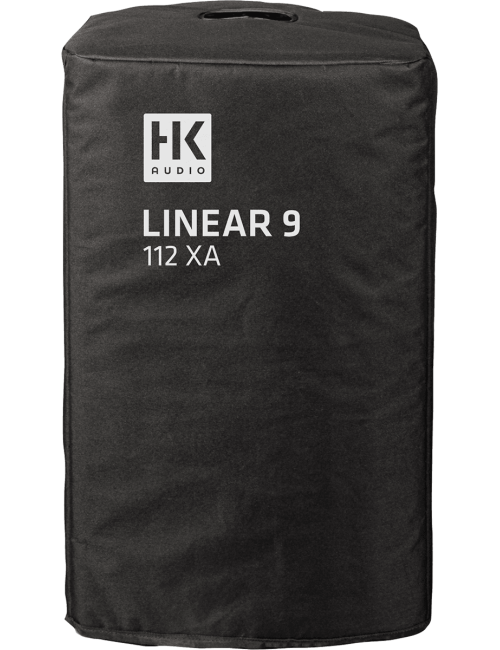

Protective cover for LINEAR L9 112 XA series
