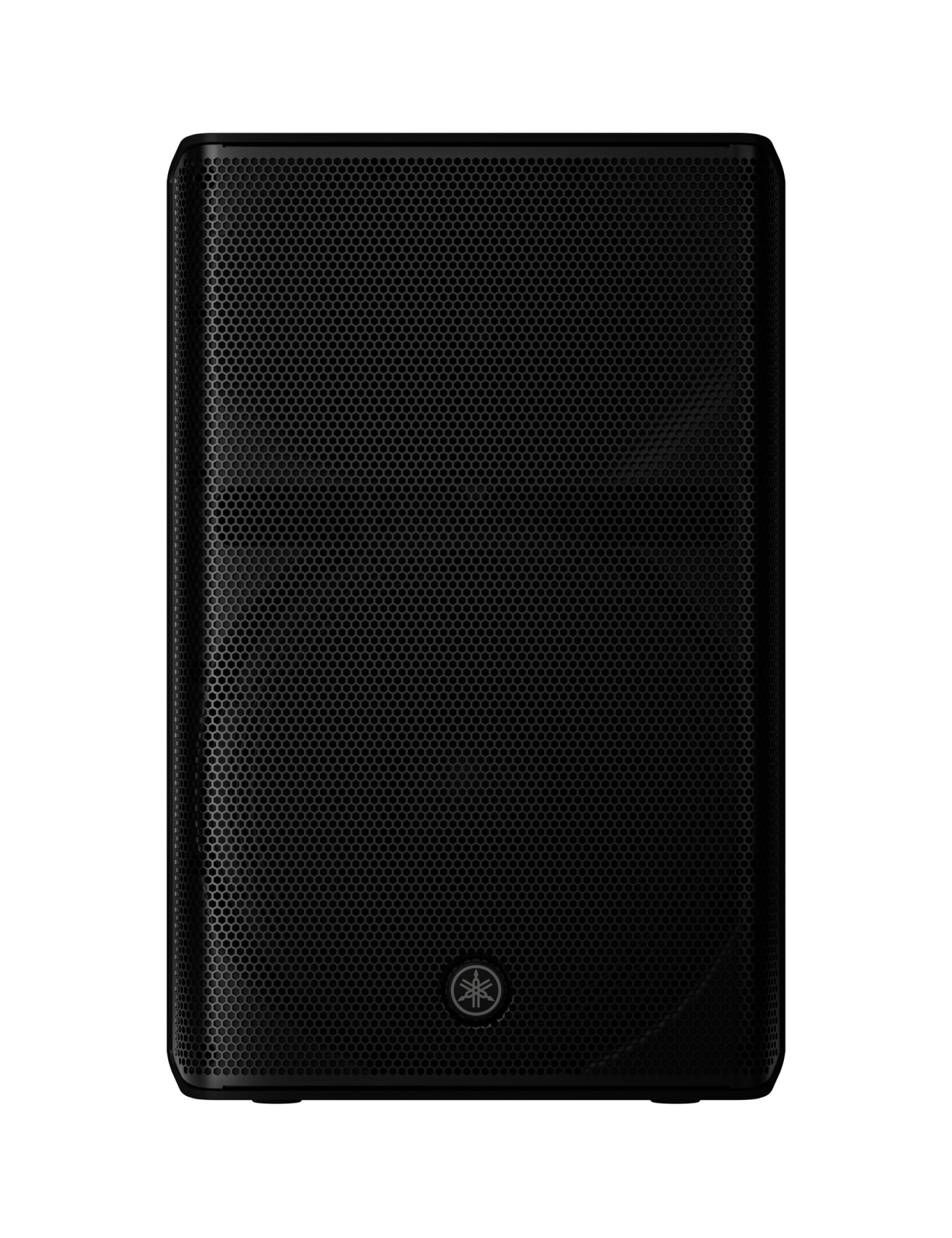

Yamaha DXR15 Mk3 – Lspeaker 2-way 15
The Yamaha DXR15 Mk3 is the most imposing and powerful model of the new generation of enclosures DXR MK3. With its speaker BF 15, its HF engine 1.75 and its amplification in Class D issuing 2000 W, it combines a wide, striking restitution and an exceptional projection. Capable of achieving a sound pressure level of 134 dB SPL, it offers an impressive dynamic reserve for DJs, live groups, technical providers and fixed installations requiring power, depth and sound impact.
Its design bass-reflex, optimized to strengthen low frequencies, guarantees a solid and controlled response to the extreme severe. The large transducers associated with the HF pavilion ensure a wide, accurate and perfectly controlled diffusion even in environments requiring wide coverage. The robust case and its professional lines offer great durability, while allowing flexible use on the facade or in the wedge monitor (angle 52°).
Equipped with a high resolution DSP 96 kHz / 32 bits, the DXR15 MK3 uses technology FIR-XTM (FIR linear phase screening) for greater consistency and clarity across the spectrum. It also proposes Adjustable HPF from 50 to 118 Hz (12 to 48 dB/Oct.) and several adapted DSP modes: FOH/MAIN, MONITOR, DJ, LIVE MUSIC and SPEECH. Each mode automatically adjusts the response of lspeaker Depending on the use or environment.
The DXR15 Mk3 incorporates the Bluetooth® 5.0 (SBC/AAFC, Class 1) allowing long-range wireless audio streaming. Advanced control via the rear interface simplifies settings (EQ, filtering, routing, utilities), ensuring quick adaptation to different sound situations.
With exceptional acoustic power, extended bandwidth (thanks to 15) advanced DSP management and robust construction, the Yamaha DXR15 MK3 is the ideal solution for all services requiring impact, accuracy, reliability and versatility.
Features and Features:
- Acoustic configuration : speaker 2-way bi-amplified, bass-reflex, max SPL level 134 dB SPL.
- Transducers :
- BF speaker 15 (Bob 3)
- HF engine 1.75 with room 1
- Optimized pavilion for wide and controlled diffusion.
- Box : robust construction optimized to reduce resonance; bass-reflex vent; angle wedge monitor 52°.
- Amplification : High efficiency D-Class module, peak power 2000 W (LF 1700 W / HF 300 W), power RMS 1000 W (LF 850 W / HF 150 W).
- Frequency response (-10 dB): 46 - 20000 Hz
- DSP 96 kHz / 32 bits :
FIR-XTM (linear FIR filter), crossover to 1.8 kHz, adjustable HPF (50–118 Hz, 12–48 dB/Oct.), DSP modes FOH/MAIN, MONITOR, DJ, LIVE MUSIC, SPEECH, OFF.
- Bluetooth® 5.0 : A2DP (SBC, AAFC), Class 1, long-range audio streaming.
- Control & supervision : management of parameters via the rear interface (EQ, DSP modes, filtering...) and application D-Remote
- Assembly & Installation : compatible foot dspeaker, wedge monitor 52°, integrated handles.
- Model compatible with standard sound bass boxes DXS MK3
- Dimensions 447 × 699 × 380 mm (L × H × P).
- Weight 21 kg.
Key Points:
- 2000 W peak / 1000 W RMS : massive power adapted to large performance.
- Speaker 15 : serious deeper, wide projection and physical impact.
- 134 dB SPL : high sound pressure with excellent stability.
- DSP 96 kHz with FIR-XTM for linear and precise response.
- Dedicated DSP modes : FOH, MONITOR, DJ, LIVE MUSIC, SPEECH.
- Bluetooth® 5.0 Class 1 : long range wireless reading.
- Wedge monitor 52° : perfect for live configurations.
- Robust box Designed for professional environments.
