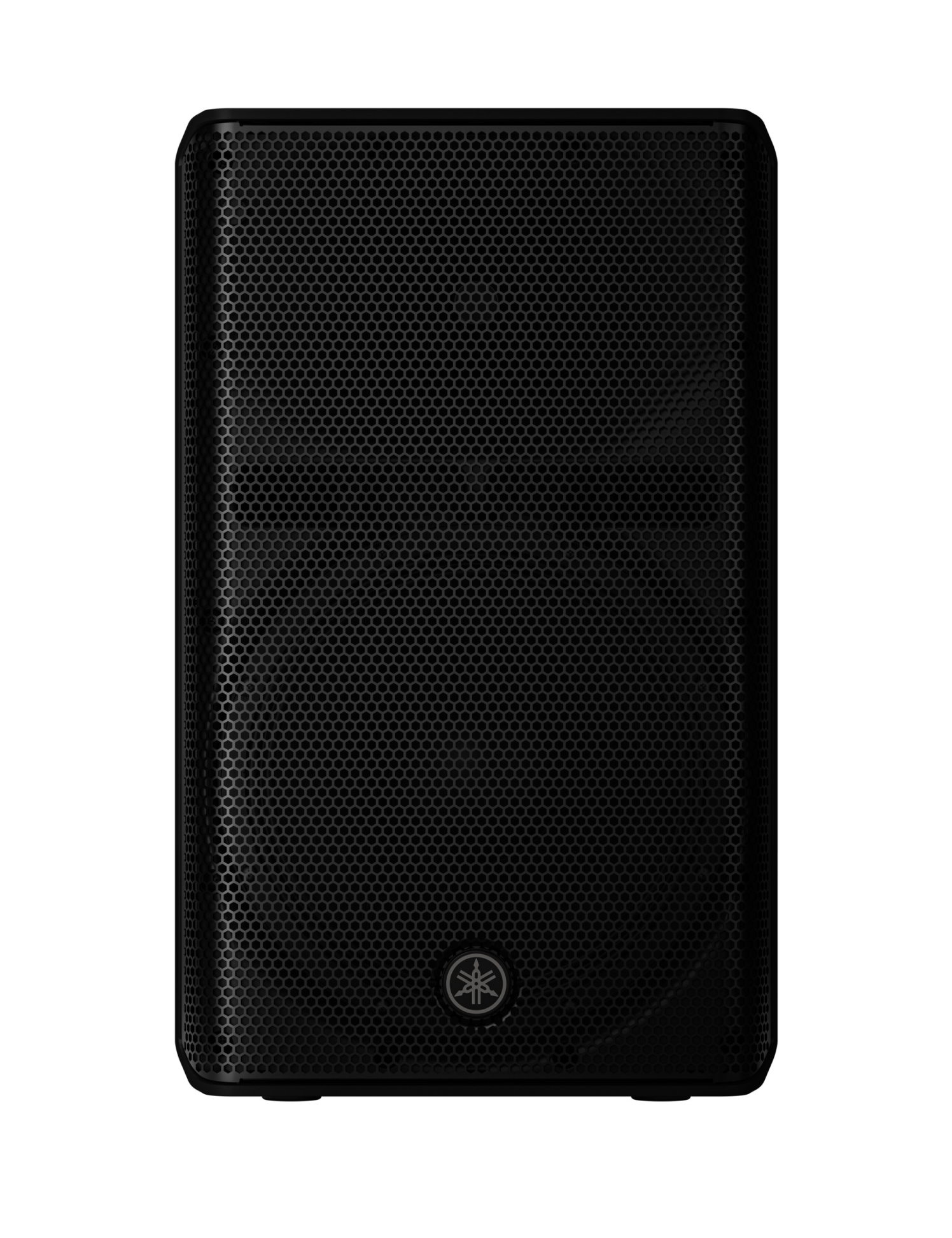

Yamaha DXR12 Mk3 – Lspeaker 2-way Powerful, versatile and designed for professional performance
The Yamaha DXR12 Mk3, from the new generation of professional enclosures DXR MK3, still raises the level of power, precision and flexibility for providers, musicians, DJs and fixed installations. Thanks to its amplification Class D of 2000 W and its speaker BF 12 associated with an HF engine 1.75, it offers an impressive sound pressure level reaching 134 dB SPL, while maintaining precise control and homogeneous diffusion.
Its bass-reflex design, exclusive Yamaha transducers and optimized pavilion guarantee a powerful and controlled projection on all frequencies. The robust, lightweight and symmetrical moulded case reduces resonances while facilitating standing configurations, speaker or wedge monitor (angle 52°).

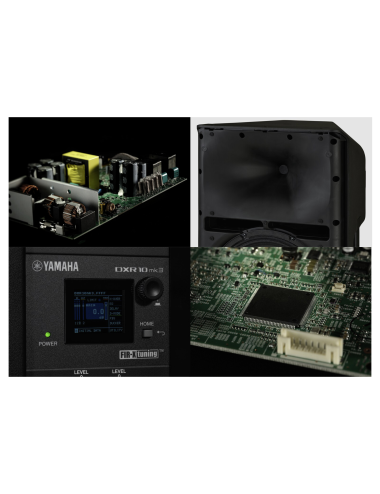

Equipped with a high resolution DSP 96 kHz / 32 bits, the DXR12 MK3 benefits from FIR-XTM (linear FIR filtering) and Drive Motion CalibrationTM, for a consistent, accurate and controlled frequency response even at high volume. DSP modes FOH/MAIN, MONITOR, DJ, LIVE MUSIC and SPEECH allow immediate adaptation according to the application.
An internal accelerometer automatically manages the mode according to the orientation (AUTO V/H POSITION), while the rear LCD screen and the encoder facilitate adjustment (EQ, delay, routing, user presets...).
The Yamaha DXR12 Mk3 also includes the Bluetooth® 5.0 (SBC/AAFC, Class 1) for long-range audio streaming, as well as the ability to control thespeaker via application D-Remote on iOS/Android. Side handles, double base 0°/-7°, compatibility with professional accessories... It is designed for demanding users.
More powerful and with higher efficiency, the DXR12 MK3 imposes itself as a loudspeaker versatile, reliable and dreadfully efficient for all professional configurations requiring impact, accuracy and adaptability.
Features and Features:
- Acoustic configuration : speaker 2-way bi-amplified, bass-reflex, max SPL level 134 dB SPL.
- Transducers :
- Speaker BF 12
- Engine HF 1.75
- Optimized flag for accurate control of directionality
- Box : robust moulded box, lightweight, symmetrical; optimized bass-reflex vent; angle wedge monitor 52°.
- Amplification : High efficiency D-Class module, peak power 2000 W (LF 1700 W / HF 300 W), power RMS 1000 W (LF 850 W / HF 150 W).
- DSP 96 kHz / 32 bits :
FIR-XTM (linear FIR filtering), Drive Motion CalibrationTM, crossover to 1.8 kHz, DSP FOH/MAIN, MONITOR, DJ, LIVE MUSIC, SPEECH, OFF, adjustable HPF (50–118 Hz, 12–48 dB/Oct.).
- Anti-larsen treatment : automatic elimination of critical frequencies.
- Bluetooth® 5.0 : A2DP (SBC, AAFC), Class 1, long-range audio streaming.
- Control & supervision : rear LCD display + encoder for EQ, delay, routing, presets, utilities.
- Mobile application : complete control via D-Remote (iOS / Android).
- Assembly & Installation :
- Side handles x2
- Double tube base: 0° or -7°
- Lyres compatibility & professional accessories
- Power source : 100–240 V, 50/60 Hz.
- Dimensions 366 × 600 × 350 mm (L × H × P).
- Weight - 17.4 kg.
Key Points:
- 2000 W peak / 1000 W RMS for impressive power.
- 134 dB SPL : exceptional projection and clarity.
- Speaker 12 for a wider impact and enhanced serious.
- DSP 96 kHz : FIR-XTM, Drive Motion CalibrationTM, crossovers FIR linear.
- Bluetooth® 5.0 long range (SBC/AAFC, Class 1).
- Dedicated DSP modes : FOH, MONITOR, DJ, LIVE MUSIC, SPEECH.
- D-Remote Mobile Control for the complete management ofspeaker.
- Robust molded box, angle back 52°, side handles.
- Double base 0°/-7° for flexible installation.
