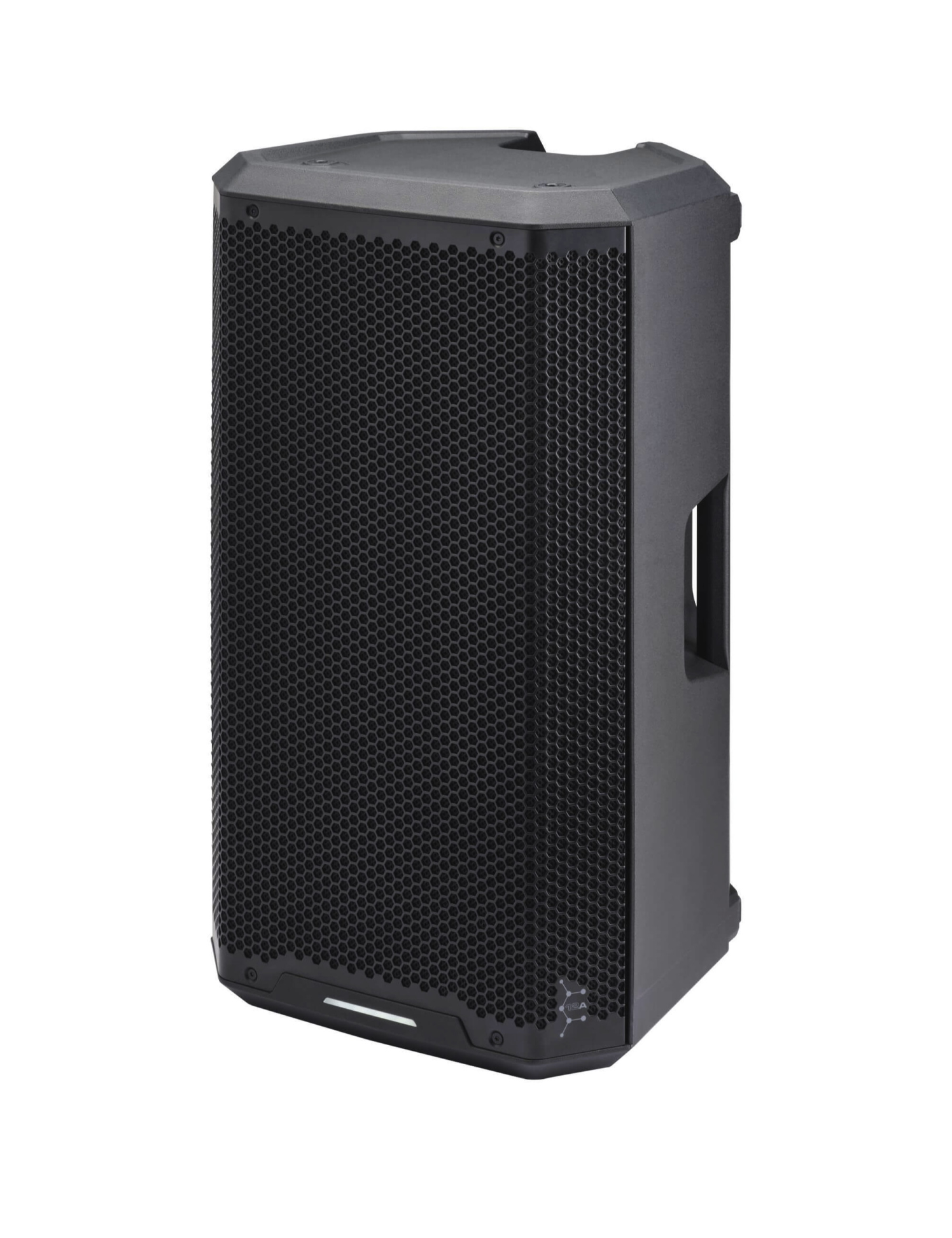

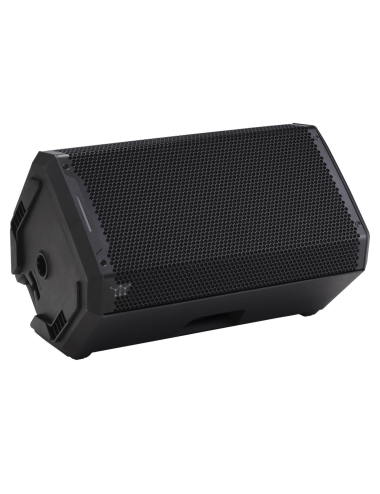

Audiophony CARBON12A – 12″ Active Speaker 1500 W RMS with DSP, Bluetooth TWS and Mobile App Control
The Audiophony CARBON12A is a professional 12-inch active loudspeaker, designed to deliver an impressive 1500 W RMS of power, a maximum sound pressure level of 130 dB, and great versatility thanks to its advanced DSP and dedicated CARBONcontrol mobile app. Ideal for mobile sound reinforcement, events or fixed installations, it combines durability, sonic accuracy and modern control features.
Equipped with a wide-dispersion horn and a 1.35" polymer compression driver, the Audiophony CARBON12A provides clear and transparent high frequencies, superior to traditional titanium-diaphragm tweeters. Its nitrogen-assisted injection-molded enclosure offers increased rigidity (+20%), ensuring improved mechanical resistance and enhanced audio performance.
The Audiophony CARBON12A includes a comprehensive connectivity section (2 Line/Mic inputs + Bluetooth TWS + Link output), a lightweight yet powerful Class-D amplifier module, and a full 4-way DSP with a 2.4-inch color display. Through the CARBONcontrol app (iOS/Android), you gain access to extensive settings: PEQ, positions, presets, delays, scenes, LED management, factory reset and much more.

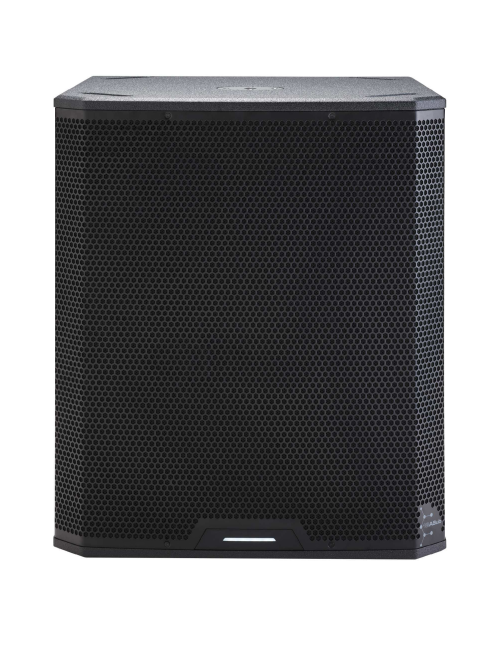

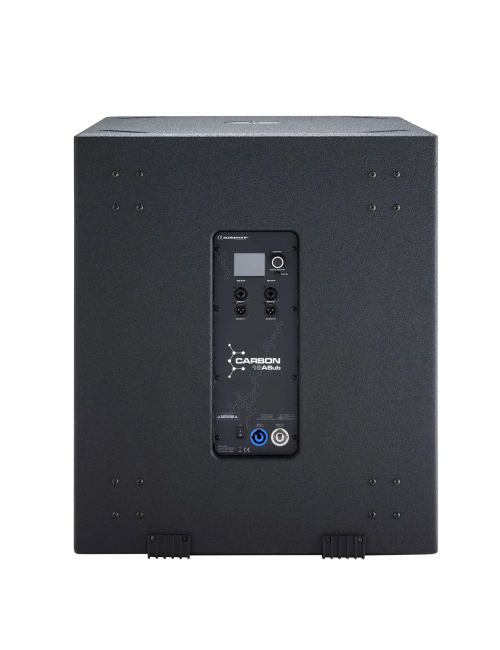

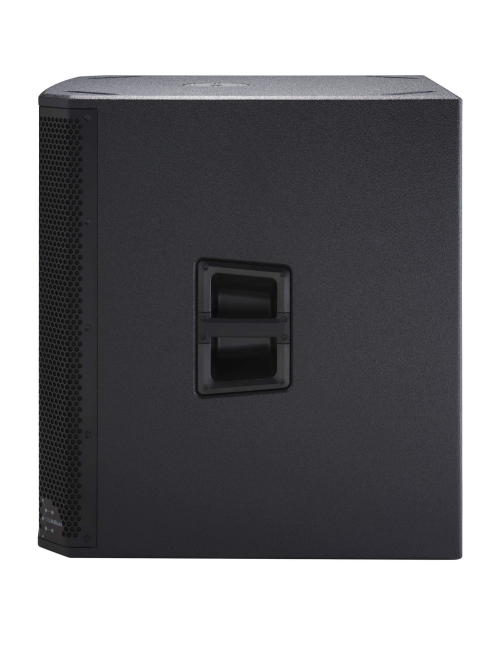

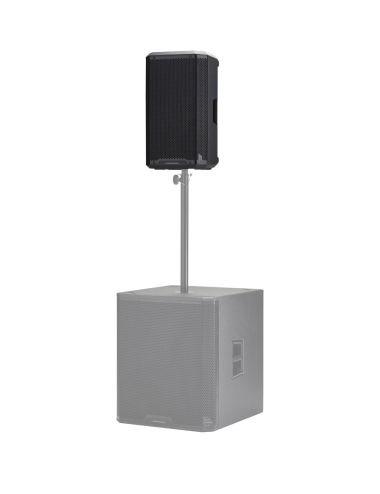

The Audiophony CARBON series also includes a 15-inch model (CARBON15A) and an 18-inch subwoofer (CARBON18ASub) to provide an optimal, perfectly matched system for expanding your setup.
Specifications:
- Speaker size: 12" woofer with 2.5" voice coil, 49.8 Oz magnet, 2 Ohms – 500 W AES / 1000 W Program
- HF driver: 1.35" High-Polymer compression driver – 4 Ohms – 50 W AES
- Amplification: Class-D 1000 W RMS (LF) + 500 W RMS (HF)
- Total power: 1500 W RMS / 3000 W max
- Frequency response: 50 Hz – 20 kHz
- Dispersion (H x V): 90° x 70°
- Max SPL (@1m): 130 dB
- Integrated DSP: Normal / Live / Club / Speech modes, Position, PEQ, LED management, Delay, Ducking, Presets
- Inputs: 2 x XLR/Jack combo with auto Line/Mic switch + Bluetooth
- Output: 1 XLR Link output + Bluetooth TWS
- Input DSP functions: EQ, Treble, Bass, Live/Vocal/Custom presets
- Master functions: Delay, HPF, full Ducking, Modes, Position
- Construction: Nitrogen-injected molded plastic cabinet, full metal grille, 3 handles, 3 × M10 rigging points

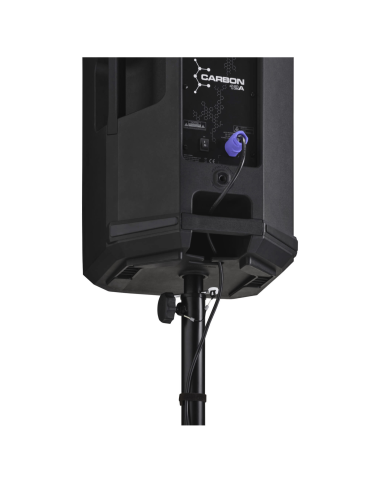

- Mounting options: 36 mm pole mount, rubber feet (4 on the bottom + 2 on the sides)
- Weight: 17 kg – Dimensions: 360 × 353 × 628 mm
- Power supply: 220–240 V AC • 50 Hz (SMPS) – 1.8 m Seetronic power cable
- Protections: Thermal, short-circuit, limiter
Key Points:
- True 1500 W RMS output with high-efficiency Class-D amplification
- Advanced 4-way DSP with 2.4" color display for full control
- Ultra-complete CARBONcontrol mobile app (iOS/Android)
- Bluetooth TWS for wireless stereo streaming
- Wide 90° × 70° dispersion ideal for various spaces
- Reinforced enclosure with nitrogen-injected plastic (+20% rigidity)
- Optimized horn for homogeneous coverage and more accurate HF response
- Comprehensive connectivity with ergonomic layout (2 inputs + Link output)
