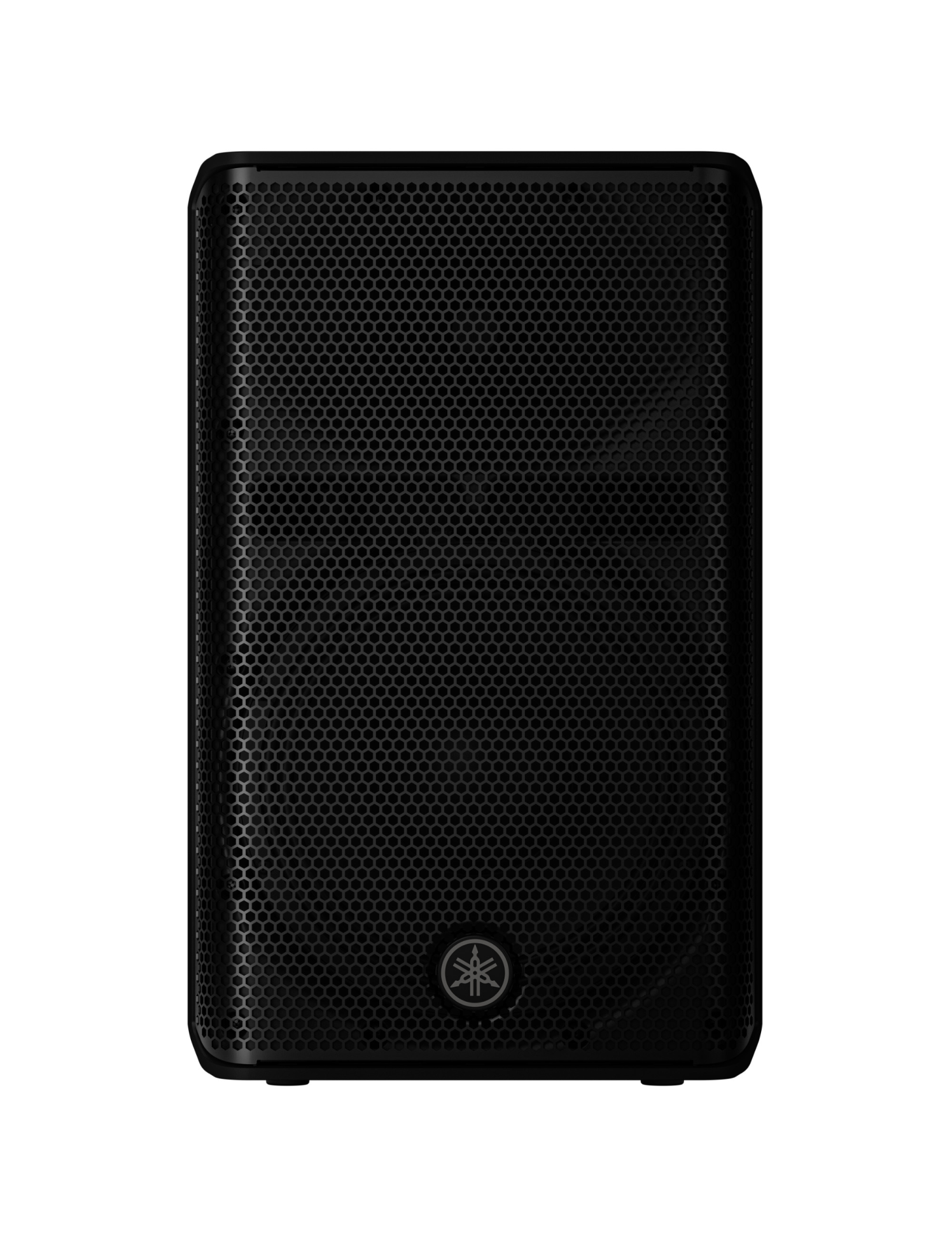

Yamaha DXR10 MK3 - Thespeaker 2-way Compact and powerful designed for professional performance
The Yamaha Dxr10 mk3, outcome of the new range of sound DXR MK3, Represents the new generation of Yamaha professional amplified speakers, thought to provide exceptional power, outstanding accuracy and ultimate flexibility in a compact format. Designed for live music, DJs, mobile benefit, speeches and facilities, this speaker Bi-amplified combines advanced acoustic engineering, an ultra-powerful intelligent DSP and amplification Class D 2000 W.
Featuring a speaker BF 10 "Exclusive and an HF engine 1,75 ", the DXR10 MK3 ensures a clear, powerful and precise restitution, with an impressive output level up to 132 dB SPL. The box, molded by injection and optimized, reduces the resonances while proposing a weight content, while the large flag guarantees A large control of the directivity.
The high performance DSP at 96 kHz integrates technology FIR-x ™ For perfect phase coherence and sound without distortion. Function Drive Motion Calibration ™ Optimizes the behavior of the grave speaker for better linearity in low frequencies. Modes FOH / hand and Monitor Include automatic detection with an integrated accelerometer, ensuring instant adjustment according to the orientation of thespeaker.
With its rear panel equipped with a LCD screen Clear and an intuitive encoder, the settings become particularly simple: equalization, time, routing management, factory presets (some of which designed by engineers NEXO) and storage up to eight user presets.
The Yamaha DXR10 MK3 also introduces the Bluetooth® Audio Streaming, as well as the ability to control all parameters via the mobile application Of-remote On iOS / Android. Intelligent anti-larsen, professional mounting options, dedicated accessories ... everything is thought to meet the requirements of providers and musicians.
Compact but redoutably efficient, the DXR10 MK3 is the versatile and reliable solution for all applications where power, clarity and flexibility are essential.
Features and features:
- YAMAHA DXR10 MK3 - Speaker Active SONO 2000 W
- Acoustic configuration : speaker 2-way Bi-amplified, compact, level SPL max 132 dB.
- Transducers :
- Exclusive BF Speaker Yamaha 10 "
- HF engine 1.75 "
- Large diameter pavilion for optimal control of directivity
- Box : Injection molded box, symmetrical design, lightweight and very robust, optimized vent reducing stationary waves.
- Amplification : high efficiency class D module of 2000 W.
- Integrated DSP 96 KHz : FIR-X ™ (Fir Filtering + Corrective Equalization), Drive Motion Calibration ™, DSP FOH / Main & Monitor modes with auto detection "Auto V / H position" via internal accelerometer.
- Anti-larsen treatment : Automatic removal of frequencies subject to feedback.
- Bluetooth® : integrated Bluetooth® audio streaming.
- Control & Supervision : Rear LCD screen + encoder for EQ, delay, routing, presets and utilities.
- Mobile applications : remote control via the application Of-remote (iOS / Android).
- Installation & Installation :
- Optional Lyre UB-DXRDHR10A for vertical / horizontal mounting
- Anchor points for eye bolts
- Double base for tube: 0 ° or -7 °
- Optional cover Spcvr-dxr103
- Connectivity & Routing : Versatile Input, Full Routing, Bluetooth® Management, DXR / DXS MK3 System Compatibility.
Key Points:
- 2000 W Power Class D in a compact format 10 ".
- 132 dB SPL For an impressive clarity and projection.
- Transducers BF / HF Exclusive Yamaha for high durability and remarkable precision.
- DSP 96 KHz Advanced : FIR-X ™, Drive Motion Calibration ™, FOH / MONITOR modes with automatic detection.
- Remote control via the mobile application D-Remote (iOS / Android).
- Bluetooth® Audio Streaming integrated for more versatility.
- Intelligent anti-larsen avoiding unwanted feedback.
- Lightweight molded box, robust and optimized acoustically.
- Flexible mounting : Optional lyre, double well 0 ° / -7 °, anchor points.
