SlimBANK H18 ILS

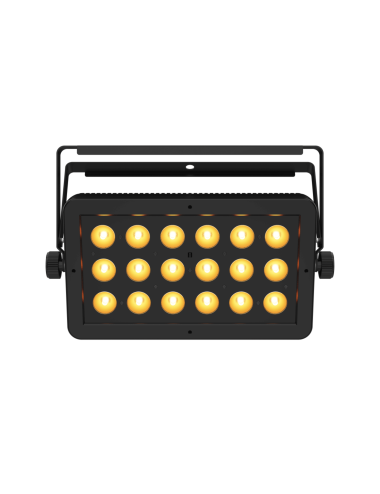

Chauvet DJ SlimBANK H18 ILS – RGBAW+UV LED Wash Light with ILS Compatibility and Section Control

The SlimBANK H18 ILS is a versatile wash light equipped with 18 hex LEDs (RGBAW+UV) of 6.2 W, delivering powerful and vibrant lighting effects. With ILS compatibility (Integrated Lighting System), it can easily synchronize with other fixtures in the range to create coordinated and immersive light shows. Its adjustable barn doors allow precise light direction, making it ideal for DJs, rental companies, and permanent installations.

Designed to inspire creativity, the SlimBANK H18 ILS features dynamic automatic programs and section control for complex effects in seconds. Its built-in dimming curves provide smooth, natural fades, adding a professional touch to any performance.

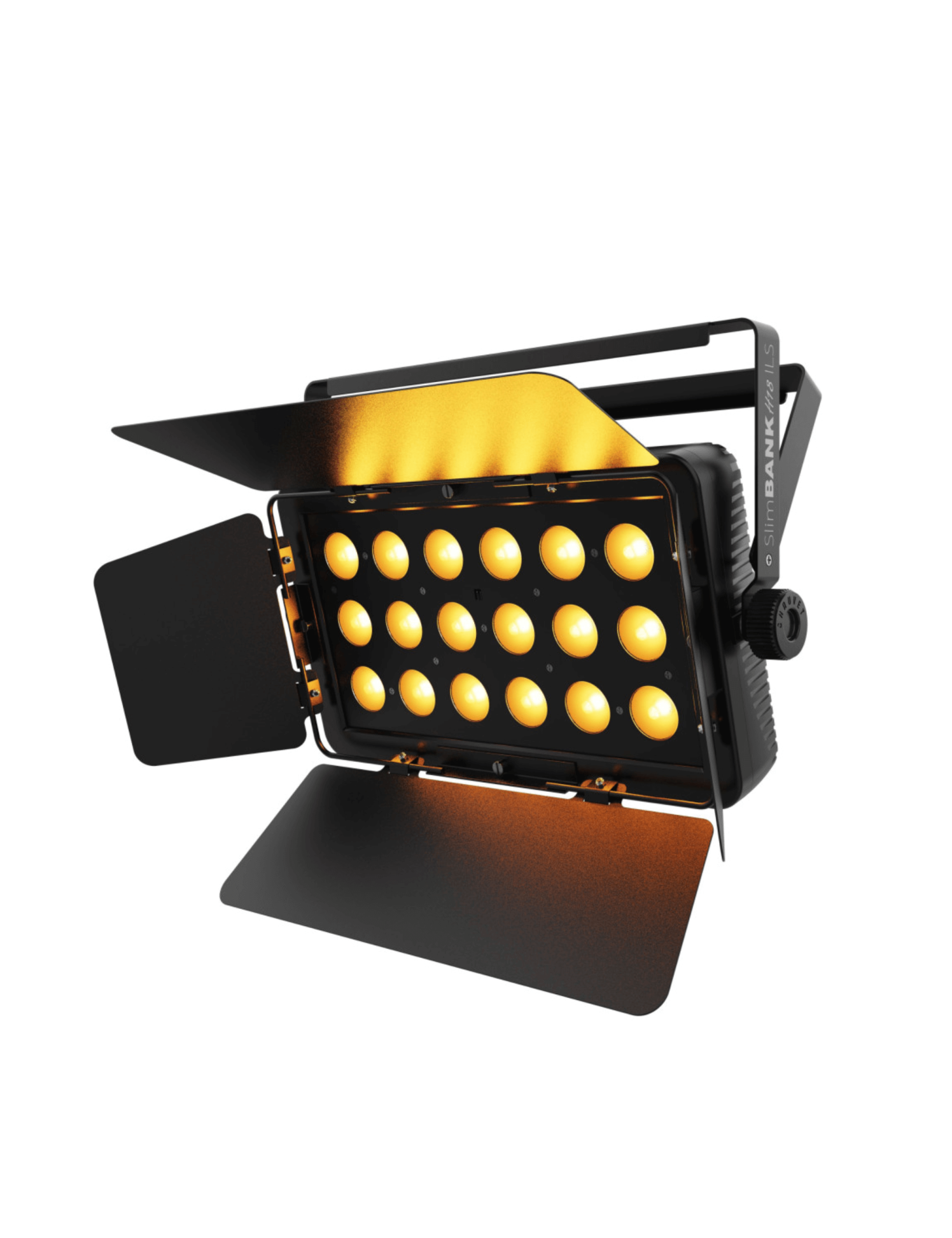

With a fanless design and convection cooling, this wash light is perfect for noise-sensitive environments. Versatile and robust, it offers multiple control options: DMX, Master/Slave, ILS, or IRC-6 remote. Compact and reliable, the SlimBANK H18 ILS comes with a power cable, barn doors, and a quick reference guide for immediate setup.

Technical Specifications:

• DMX Channels: 6, 8, 12 or 22


• DMX Connectors: 3-pin XLR


• Light Source: 18 hex-color RGBAW+UV LEDs, 6.2 W (1.6 A), approx. 50,000 hr lifespan


• Strobe Rate: 0 to 20 Hz


• Beam Angle: 27°


• Field Angle: 43°


• Illuminance: 3,111 lux @ 2 m


• Lumens: 3,356


• Power Linking: 8 units @ 120 V / 14 units @ 230 V


• Input Voltage: 100 to 240 V AC, 50/60 Hz (auto-ranging)


• Power Consumption: 68 W, 1 A @ 120 V / 67 W, 0.5 A @ 230 V


• Dimensions: 208 x 355 x 55 mm


• Weight: 2.7 kg


• Certifications: CE, RoHS


• Optional Controllers: IRC-6, ILS Command


• Mounting Bracket Size: 13 mm


• Included Accessories: power cable, barn doors, quick reference guide



Key Features:

• Versatile wash light with 18 hex LEDs (RGBAW+UV) for striking effects


• ILS compatibility for seamless integration in synchronized shows


• Dynamic effects with automatic programs and section control


• Precise lighting with adjustable barn doors


• Flexible control via DMX, Master/Slave, ILS, or IRC-6 remote


• Smooth transitions thanks to built-in dimming curves


• Silent operation with convection cooling and fanless design
