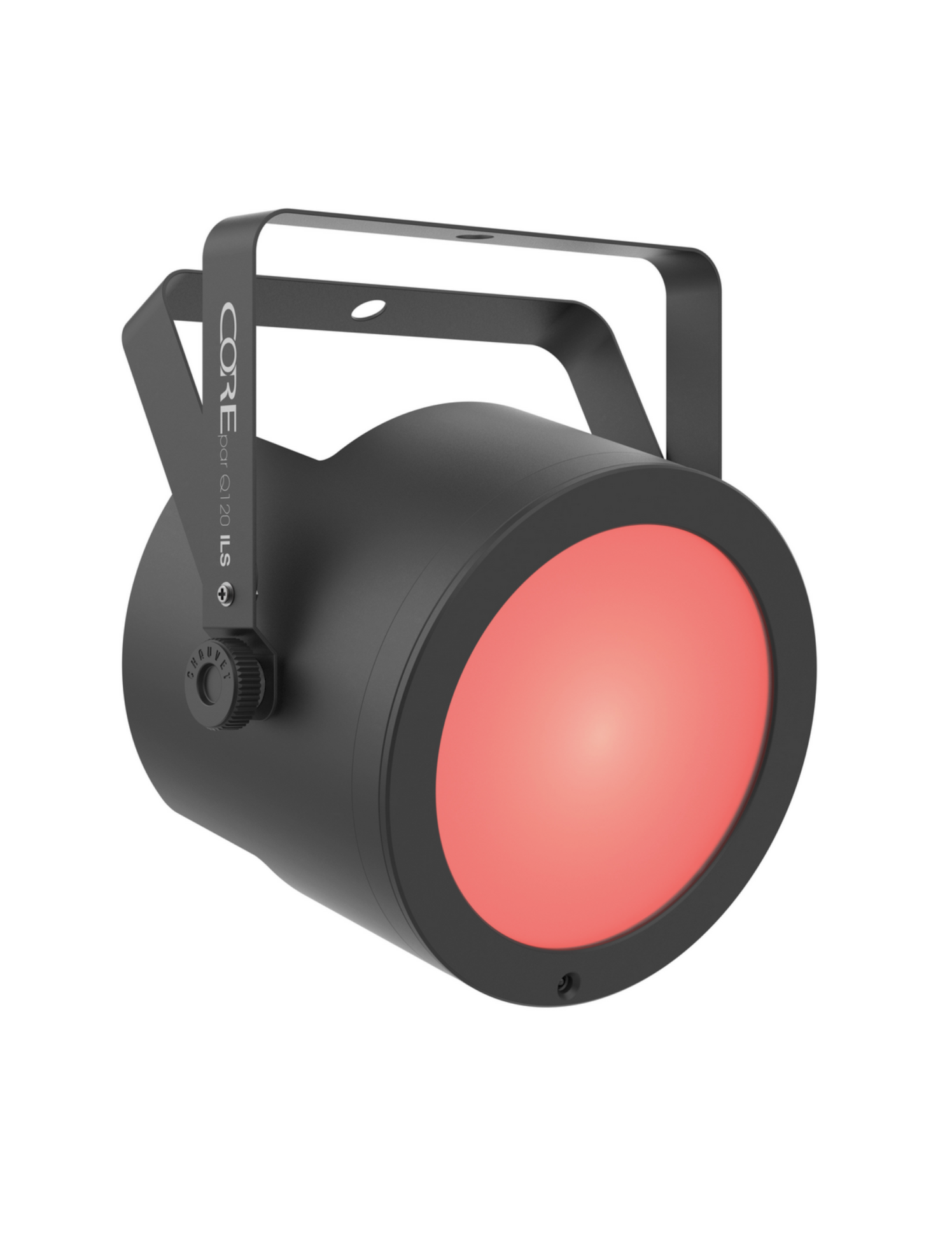

Chauvet DJ COREpar Q120 ILS – Compact RGBW COB PAR Light with Adjustable Beam and ILS Compatibility
The COREpar Q120 ILS is a compact PAR light equipped with a 120 W RGBW COB (Chip-on-Board) LED, delivering a full color spectrum and precise color blending for professional lighting results. With the included magnetic Fresnel lens, you can instantly switch from a wide wash to a tight beam in just seconds, offering maximum flexibility for any event.
Compatible with ILS technology (Integrated Lighting System), the COREpar Q120 ILS can be synchronized with other ILS-enabled fixtures to create coordinated light shows with ease. Its D-Fi™ USB compatibility also enables wireless control in Master/Slave or DMX mode, reducing cabling and simplifying setup.
Designed for the road, its rugged housing withstands the demands of mobile DJs and rental companies. Side-positioned connections allow flat floor placement for a discreet, professional look. The high-frequency LED dimming ensures flicker-free performance, perfect for video or photo capture. Create custom colors directly from the LED display, enjoy smooth fades thanks to built-in dimmer curves, and easily transport the unit in the optional CHS-40 VIP Gear Bag.
Technical Specifications:
- 120 W RGBW COB LED for a complete and even light spectrum
- Magnetic Fresnel lens included for quick switching between wide wash and tight beam
- ILS compatibility for easy synchronization with other fixtures
- D-Fi™ USB compatibility for wireless Master/Slave or DMX control
- Strobe rate: 0 to 29 Hz
- Beam angle: 56° (without lens) / 20° (with lens)
- Field angle: 100° (without lens) / 30° (with lens)
- Illuminance: 868 lux @ 2 m (without lens) / 4,639 lux @ 2 m (with lens)
- Power linking: 6 units @ 120 V / 10 units @ 230 V
- Input voltage: 100 to 240 V AC, 50/60 Hz (auto-ranging)
- Power consumption: 100 W, 1.3 A @ 120 V / 94 W, 0.7 A @ 230 V
- Dimensions: 225 x 188 x 228 mm
- Weight: 2.1 kg
- DMX connectors: 3-pin XLR
- Cable length: 1.5 m
- Certifications: CE, RoHS, UKCA
- Included accessories: power cord, magnetic lens, quick reference guide
Key Features:
- Lighting flexibility: magnetic lens for instant switching between wide wash and tight beam
- Even color output thanks to high-power RGBW COB LED
- ILS compatibility for seamless integration into synchronized shows
- Wireless control via D-Fi™ USB and DMX
- Flicker-free performance with high-frequency dimming (ideal for video)
- Custom color creation via built-in LED display
- Rugged housing for touring and mobile DJ use
- Flat floor placement with side-mounted connections for a clean setup
