Dynal 7X10

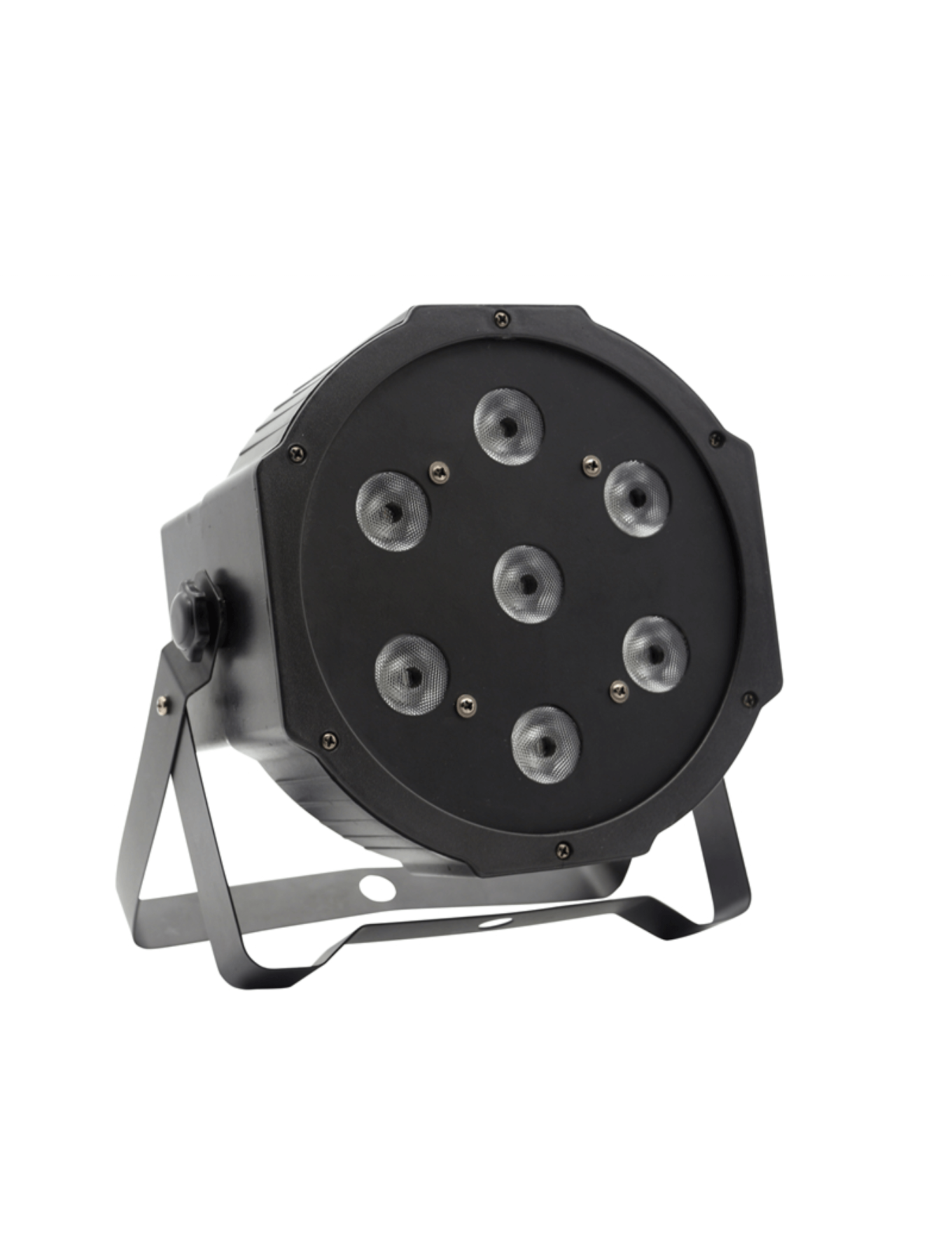

Dynal 7×10 – 7×10 W RGBW LED PAR Light

The Dynal 7×10 is a compact RGBW LED PAR fixture equipped with seven 10 W LEDs, ideal for stage lighting, DJs, bars, event spaces, or fixed installations. It offers multiple operating modes—8-channel DMX, auto, manual, and sound mode—all within a lightweight, simple and cost-effective housing suitable for small to medium applications.

The Dynal 7×10 is a versatile LED PAR designed for basic lighting needs such as wall washing, ambient lighting, mobile DJ use, or as an additional fixture within a lighting setup.

Equipped with seven 10 W RGBW quad-color LEDs, it delivers solid color mixing, smooth transitions, and precise DMX control. Its simple menu interface allows quick manual adjustment of colors, built-in programs, and microphone sensitivity.

It features two 8-channel DMX configurations (A001 and D001) to adapt to various control setups.
Functions include dimmer, strobe, color selection, transitions, fade effects, pulse effects, and sound-active modes (1 and 2).

Its dual-bracket system allows floor placement, truss mounting, or installation on a totem.

Features and Specifications:

• Light source: 7 × 10 W RGBW LEDs


• Mounting: double-bracket (floor or rigging)


• Connections: 3-pin DMX IN/OUT

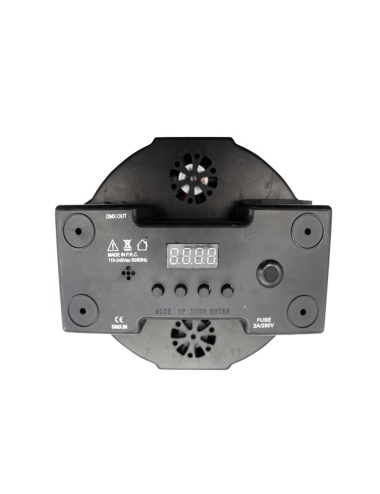

• Display: LED screen + 4 control buttons


• Beam angle: 25°


• Integrated cooling fans


• Power supply: 110–240 V AC


• Full DMX control (8 channels × 2 modes)


• Built-in programs: jump, fade, pulse, strobe


• Compact and lightweight


• Suitable for floor or rig mounting
