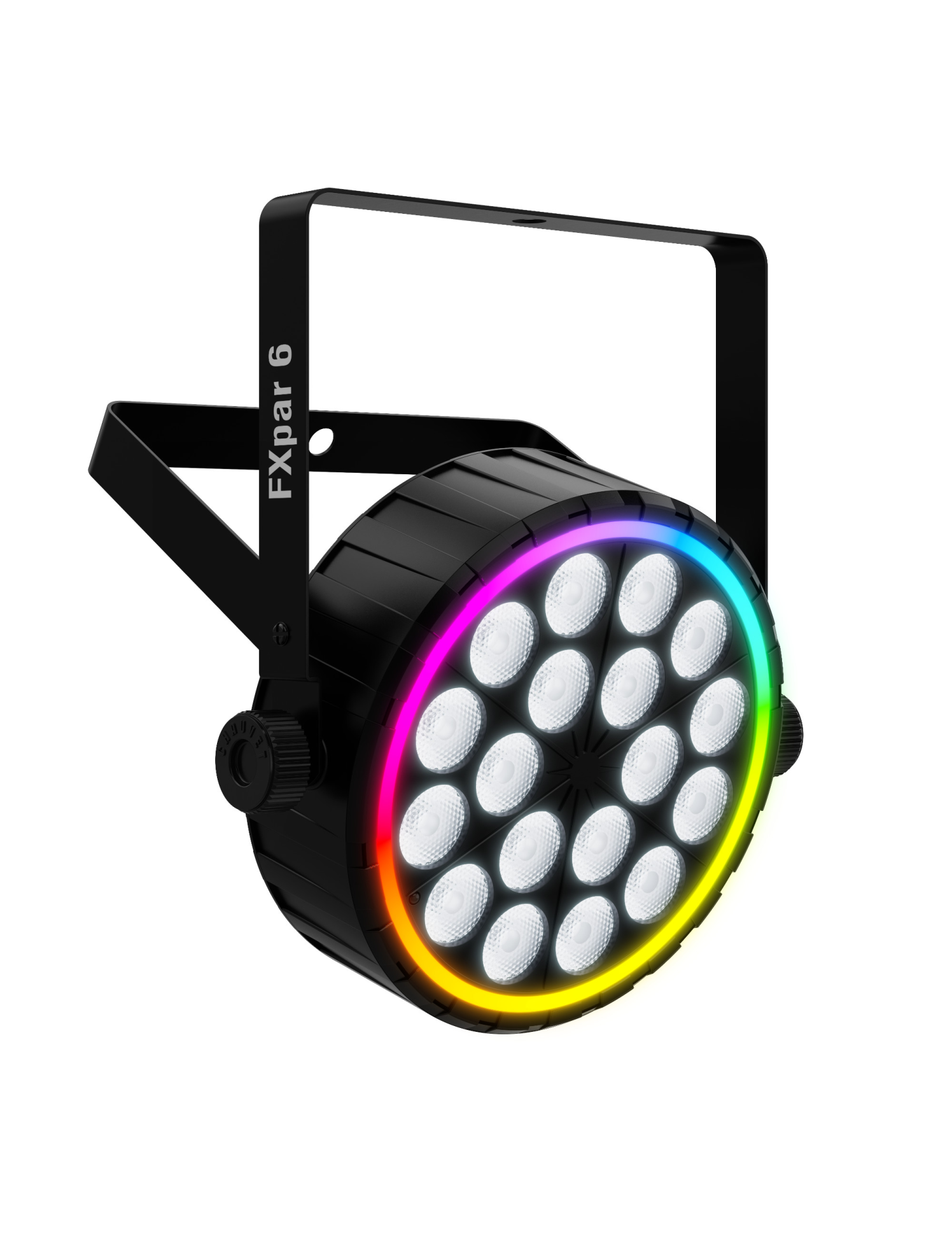

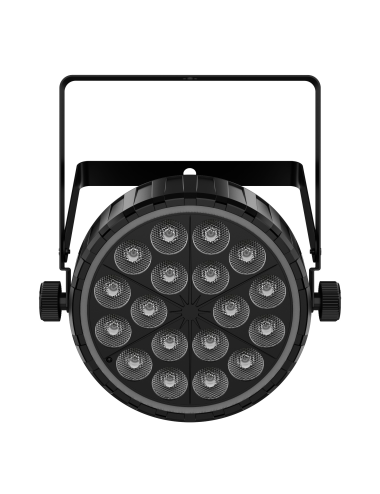

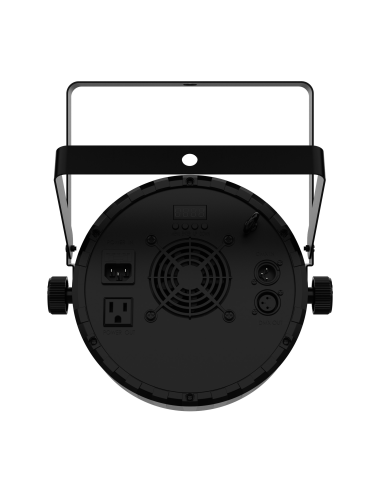

Chauvet DJ FXpar 6 – RGBW Multi-Effect LED Fixture with RGB Ring and 6 Independent Zones
The Chauvet DJ FXpar 6 is a compact LED fixture combining multiple technologies in a single unit to create spectacular lighting effects. Its 6 independent RGBW zones paired with an external RGB ring deliver dynamic, powerful effects perfectly suited for DJs, small stages, bars, clubs, event productions and video recording.
With DMX control (3, 6 or 11 channels), the FXpar 6 allows separate management of the RGBW wash section and the RGB ring to create a wide variety of show-ready atmospheres. Built-in automatic programs and sound-active mode provide instant effects without complex configuration, while the optional IRC-6 remote enables simple wireless control of static colors and programs.
Designed with professionals in mind, the FXpar 6 offers simplified wiring thanks to power linking, significantly reducing setup time. Its high-frequency LED driver ensures a flicker-free output, ideal for video and streaming. Lightweight and compact, it can be transported easily in the CHS-40 VIP Gear Bag.
With an impressive output of 5657 lux @ 2 m, rugged construction and excellent versatility, the Chauvet DJ FXpar 6 is a complete, multi-zone effect light ideal for all professional performance environments.
Specifications:
- Compact multi-effect LED fixture combining RGBW zones + RGB ring
- 6 independent RGBW zones for dynamic effects
- External RGB ring for enhanced visual impact
- Built-in automatic programs and sound mode
- IRC-6 remote compatible (optional) for wireless control
- DMX: 3, 6 or 11 channels
- DMX connectors: 3-pin XLR
- Strobe rate: 0–20 Hz
- PWM frequency: 1200 Hz (flicker-free for video)
- Beam / field angles: 20° / 36°
- Illuminance: 5657 lux @ 2 m
- Luminous flux: 3239 lumens
- Main light source: 18 × RGBW quad-color LEDs, 52 W, 50,000 h life expectancy
- Ring LED source: 51 × RGB LEDs, 6 W, 50,000 h life expectancy
- Power consumption: 62 W – 0.6 A @ 230 V
- Input voltage: 100–240 V, 50/60 Hz (auto-switching)
- Power linking: up to 12 units @ 230 V
- Dimensions: 275 × 69 × 305 mm
- Weight: 1.3 kg
- Bracket mounting hole: 13 mm
- Certifications: CE, RoHS
- DMX refresh rate: 40 Hz
- Included accessories: FXpar 6, power cable, quick reference guide
Key Points:
- Compact multi-effect LED fixture combining several technologies
- 6 independent RGBW zones for impressive visual effects
- External RGB ring for even more dynamic lighting
- Automatic & sound-active programs for instant show effects
- Wireless control possible using the optional IRC-6 remote
- Flicker-free output ideal for video and livestreams
- Power linking for fast, clean installation
- High output: 5657 lux @ 2 m
- Easy transport with the optional CHS-40 bag
