Corepar UV 120 ILS

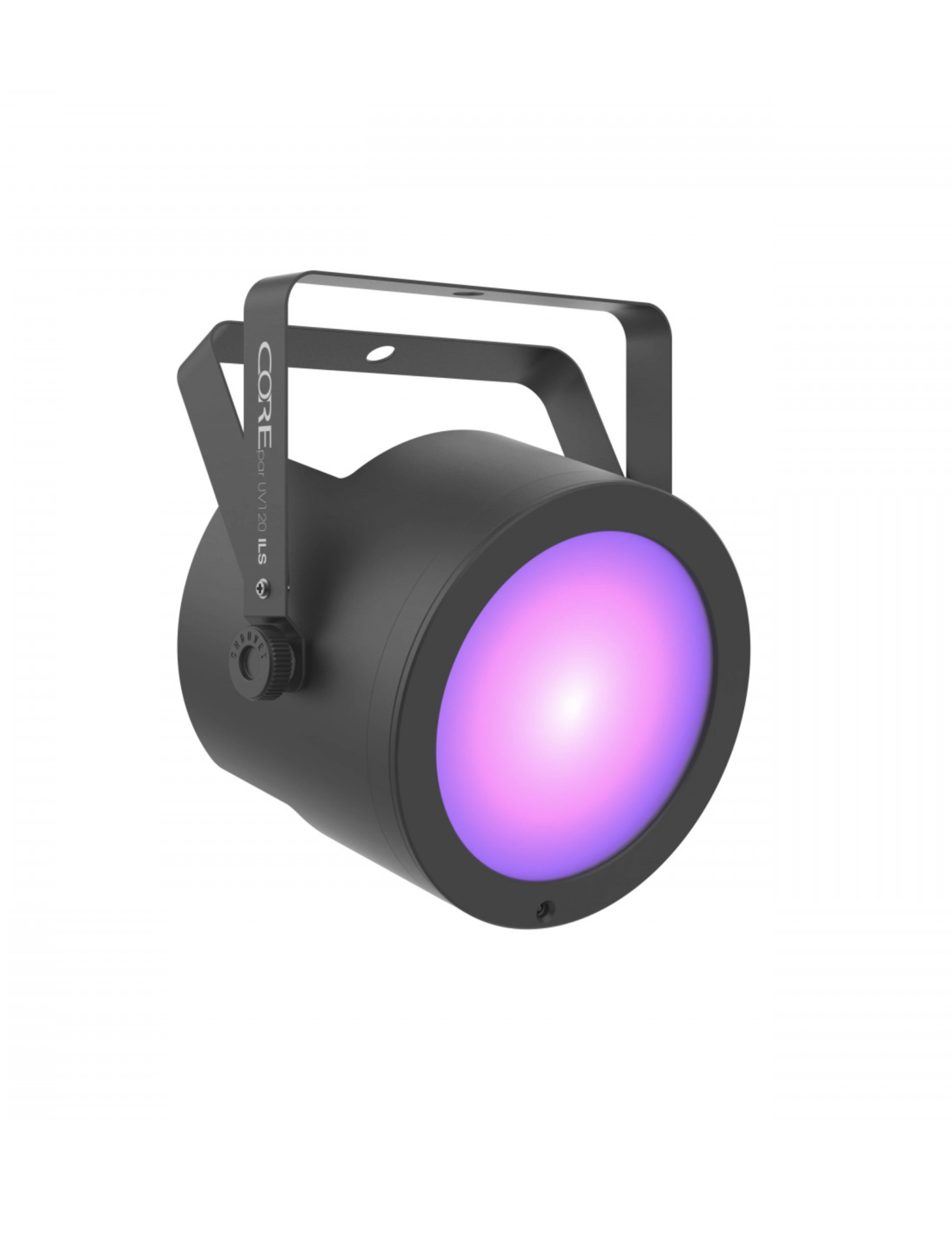

Chauvet DJ COREpar UV 120 ILS – 120W COB UV PAR Light with Adjustable Beam and ILS Compatibility

The COREpar UV 120 ILS is a compact PAR spotlight equipped with a 120W UV COB (Chip-on-Board) LED, delivering an ultra-wide wash and powerful UV output for spectacular blacklight effects. Thanks to the included magnetic Fresnel lens, you can instantly switch from a wide wash to a narrow beam, providing optimal flexibility for your setups and performances.

Compatible with ILS technology (Integrated Lighting System), the COREpar UV 120 ILS easily integrates into a coordinated lighting show with other fixtures in the range. Its D-Fi™ USB compatibility also enables wireless control in Master/Slave mode or via DMX, reducing cabling and simplifying setup.

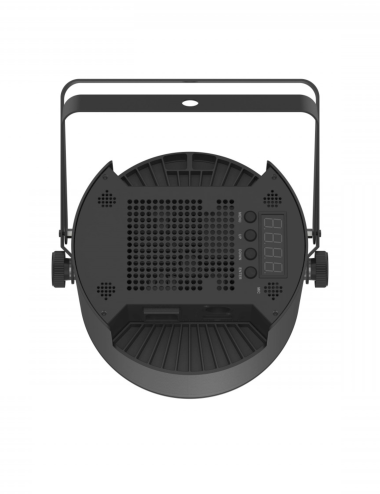

Built to withstand the demands of on-the-road use, its rugged housing effectively protects the unit, while its side-mounted connections make it easy to set up and daisy-chain multiple units. The high-frequency LED dimmer ensures completely flicker-free operation, ideal for video or photo capture. With its flat, stable design, the COREpar UV 120 ILS sits perfectly on the floor for precise positioning. Easily transportable in the CHS-40 VIP Gear Bag, it’s a versatile and reliable choice for DJs, rental companies, and fixed installations.

Technical specifications:

• 120W COB UV LED (wavelength 390–400 nm) for powerful UV effects


• Magnetic Fresnel lens included: quick switch between wide and narrow beam


• ILS compatibility for synchronization with other fixtures


• D-Fi™ USB compatibility for wireless Master/Slave or DMX control


• Strobe rate: 0 to 20 Hz


• Beam angle: 44° (without lens) / 21° (with lens)


• Field angle: 94° (without lens) / 34° (with lens)


• Power linking: 5 units @ 120 V / 9 units @ 230 V


• Input voltage: 100 to 240 V AC, 50/60 Hz (auto-ranging)


• Power consumption: 119 W, 1.5 A @ 120 V / 118 W, 0.9 A @ 230 V


• Dimensions: 225 x 185 x 228 mm


• Weight: 2.1 kg


• DMX connectors: 3-pin XLR


• Cable length: 1.5 m


• Certifications: CE, RoHS, UKCA


• Included accessories: power cable, magnetic lens, quick reference guide



Key features:

• Powerful UV effects thanks to the 120W COB UV LED


• Lighting flexibility with magnetic lens to switch from wide wash to narrow beam


• ILS compatibility for easy integration into synchronized shows


• Wireless control via D-Fi™ USB and DMX


• Flicker-free performance thanks to the high-frequency dimmer (ideal for video capture)
