LED Shadow 2 ILS

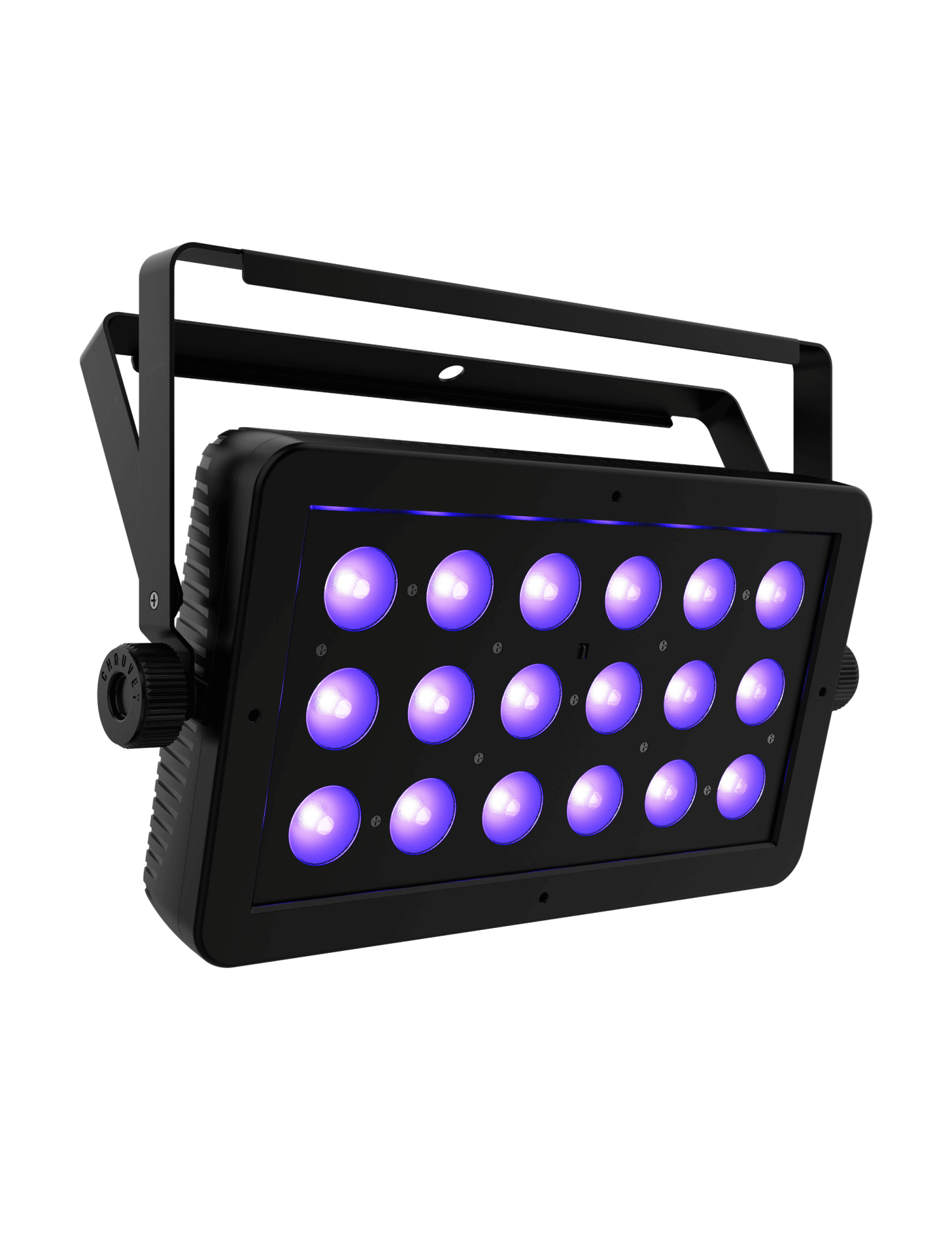

Chauvet DJ LED Shadow 2 ILS – UV LED Panel with ILS Compatibility and Section Control

The LED Shadow 2 ILS is a versatile UV LED panel equipped with 18 x 3 W UV LEDs, designed to deliver spectacular blacklight effects that enhance your stage designs and reactive paints. With its ILS compatibility (Integrated Lighting System), the fixture easily integrates into a synchronized lighting ecosystem for cohesive and immersive shows.

Created for creativity and ease of use, the LED Shadow 2 ILS features automatic programs and section control to generate sophisticated effects in seconds. The integrated dimmer curves ensure smooth and seamless intensity transitions for a professional look.

Its silent design with radiant cooling makes it ideal for noise-sensitive environments. For control, choose from DMX, Master/Slave, ILS, or the IRC-6 remote. Go wireless with the optional D-Fi USB to reduce cabling. Compact and robust, the LED Shadow 2 ILS ships with a power cord, mounting bracket & hardware, and a warranty card for quick setup.

Technical Specifications:

• DMX Channels: 4


• DMX Connectors: 3-pin XLR


• Light Source: 18 UV LEDs, 3 W (0.6 A), approx. 50,000 hrs life expectancy


• Strobe Rate: 0 to 20 Hz


• PWM Frequency: 1.24 kHz


• Coverage Angle: 32°


• Power Linking: 11 units @ 120 V / 20 units @ 230 V


• Input Voltage: 100 to 240 V AC, 50/60 Hz (auto-ranging)


• Power & Current: 49 W, 0.7 A @ 120 V, 60 Hz / 49 W, 0.4 A @ 230 V, 50 Hz


• Dimensions: 208 x 355 x 55 mm


• Weight: 2.8 kg


• Certifications: CE, RoHS, UKCA


• Optional Controllers: IRC-6


• Wavelength: 405 nm


• Included Accessories: power cord, mounting bracket & hardware, warranty card



Key Features:

• Unique UV effects with 18 x 3 W LEDs for powerful and consistent blacklight


• ILS compatibility for fully synchronized shows within the ILS ecosystem


• Wireless-ready via optional D-Fi USB in Master/Slave or DMX


• Instant creativity with built-in programs and section control


• Optimized setup with power linking and simple DMX connections
