In stock
CHAUVET DJ

Wash FX Hex ILS

Reference: WASHFXHEXILS
€249.00
€213.00 - €36.00 Tax included

Multi-effect LED projector combining blinder, Wash and chasers effects. 6 x 3 LEDs RGBAW+UV 10W with integrated ILS system

Quantity
  In stock
Shipped within 5 to 7 days

reassuarence-customicon

Manufacturer's warranty: 2 years

reassuarence-customicon

Free delivery from €99

reassuarence-customicon

Easy payment: satisfied or refunded

reassuarence-customicon

Need help ?

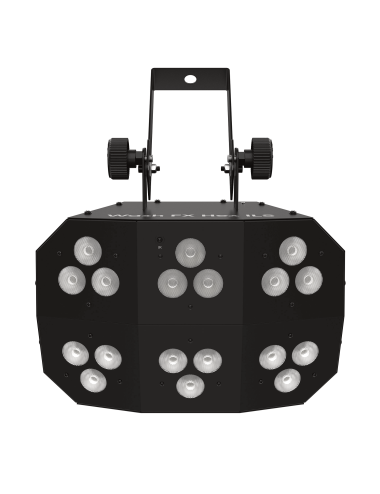

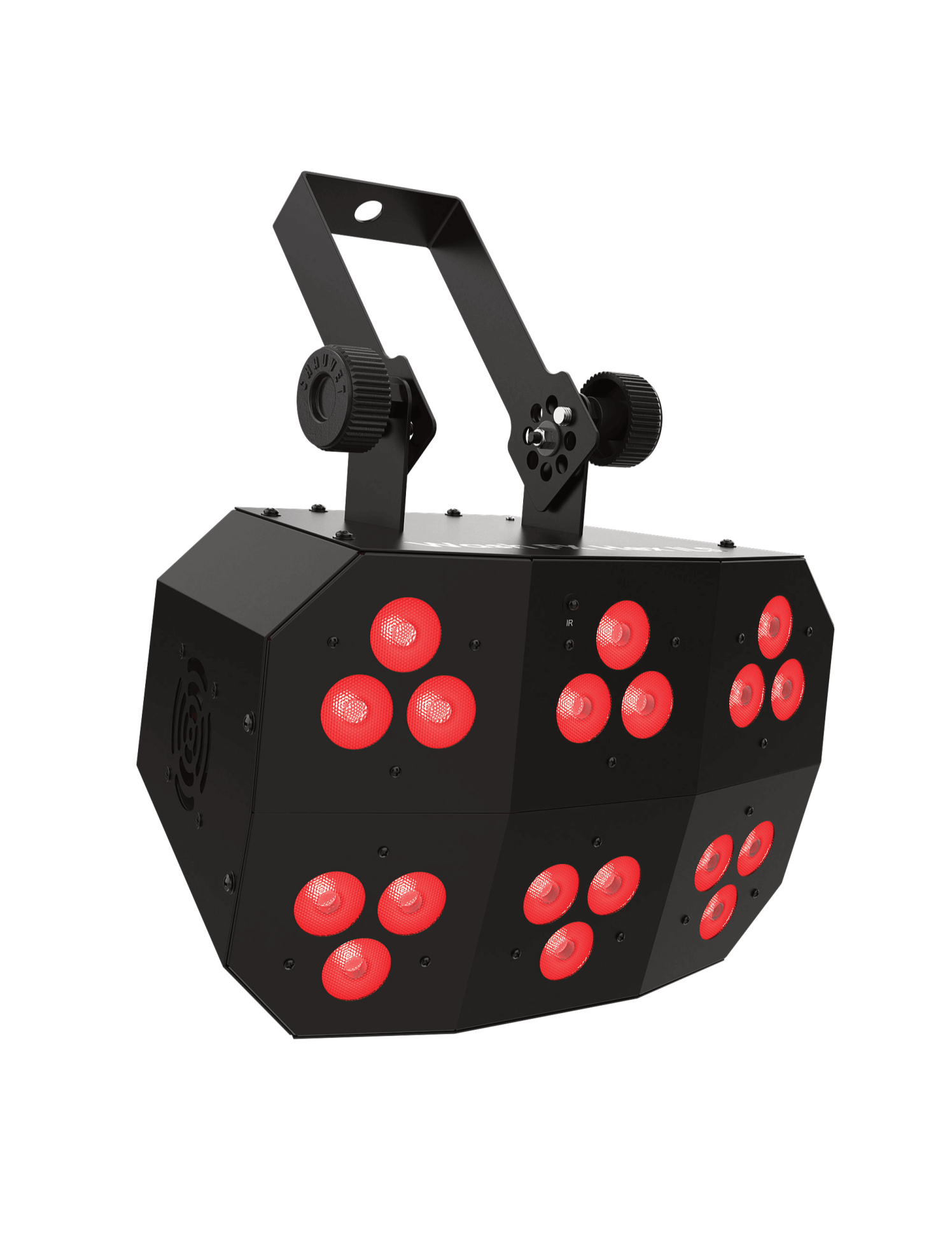

Polyvalent, striking and ultra-luminous, the Wash FX Hex ILS of the Hot DJ is an all-in-one multi-effect projector that combines the power of a blinder, the coverage of a wash LED and visual impact of a hunt to 6 zones. Thanks to its hexacolor LED (RGBAW+UV), it generates a wide range of colours and natural whites, with an ideal intensity for scenes, clubs or DJ performances.

The particularity of Wash FX Hex lies in its iLS compatibility (Integrated Lighting System), Chauvet DJ's exclusive ecosystem. ILS allows complete and fluid synchronization with other compatible devices without complex DMX programming. It is also compatible D-Fi USB for one wireless DMX control, and IRC-6 for a simplified remote trigger. Its advanced Master/Slave function makes it easy to synchronize several units while maintaining fluid animation.

You can use it independently or in DMX (up to 40 channels) according to the desired level of control. Let it be like dynamic visual effect or decorative lighting source, the Wash FX Hex ILS easily integrates into all setups, with a luminous output of 3,204 lux to 2 meters and a wide field up to 77°. Robust and compact, it fits perfectly in a cHS-40 bag for stress-free transport.



Characteristics:

  • Type : Multi-effect LED projector (wash, blind, chaser)

  • Light sources : 18 LED 10 W RGBAW+UV (hex)

  • LED life About 50,000 hours

  • DMX modes : 3, 6, 11 or 40 channels

  • DMX connectors : XLR 3 pins

  • Monitoring : Autonomous, DMX, Master/Slave, IR (IRC-6), ILS, D-Fi USB

  • Beam angle : 44°

  • Field angle : 77°

  • Lighting : 3,204 lux at 2 m

  • Strobe frequency 0 - 20 Hz

  • Food : 100–240 V AC, 50/60 Hz (autorange)

  • Power : 160 W, 1.3 A @ 120 V / 0.7 A @ 230 V

  • Electrical connection : up to 11 units @ 230 V

  • UV wavelength : 395–405 nm

  • Dimensions : 280 x 240 x 180 mm

  • Approvals : EC, RoHS, UKCA

  • Accessories included : Power cable, Quick reference guide

  • Weight (kg) : 3.1





Key Points:


  • 3-in-1 projector : wash, blind and hunt 6 zones

  • RGBAW+UV LED for rich colors and natural whites

  • Compatible ILS, USB D-Fi iRC-6 remote control

  • Ideal in DMX, autonomous or Master/Slave with effects synchronization

  • Compact, lightweight and easy to carry in a CHS-40






Manufacturer

Data sheet

DMX channels
3, 6, 11 or 40 channels
Controllable in DMX
Yes
Brightness
3204 lux at 2 m
Dimensions
280 x 240 x 180 mm
LEDs
18 LED 10W RGBAW + UV
DMX input number
1
Number of DMX outputs
1
Opening of the beam
44 °
Power of the light source
18 x 10W
Weight (kg)
3.1
Colors
RGBAW + UV
Stroboscope effect
Yes, 0–20 Hz
Power source
Sector

Download

Wash FX Hex ILS - Manual

Download (3.32MB)

Quick Compare

Product
Wash FX Hex ILS Quad Phase HP Quad Phase HP Revo 4 IR Revo 4 IR
Availability
Price
€249.00
(1 review)
€213.00
€259.00 €211.00
€249.00 €199.00
Description

Multi-effect LED projector combining blinder, Wash and chasers effects. 6 x 3 LEDs RGBAW+UV 10W with integrated ILS system

Moonflower effect spotlight featuring a 32W QUAD LED producing very sharp color changing beams. Built-in programs, LCD display with navigation buttons. Control by console, DMX software or remote control.

Moonflower DMX-512 LED with 256 sharp beams. Possibility of controlling each LED via 256 DMX channels, with an opening angle of 60 degrees and high brightness output

DMX channels
3, 6, 11 or 40 channels 4 4 OR 256
Controllable in DMX
Yes
Input connectors
XLR 3 pins XLR 3 pins
Output connectors
XLR 3 pins XLR 3 pins
Brightness
3204 lux at 2 m
Dimensions
280 x 240 x 180 mm 312 x 198 x 279mm 312 x 306 x 334mm
LEDs
18 LED 10W RGBAW + UV
DMX input number
1
Number of DMX outputs
1
Opening of the beam
44 °
Power of the light source
18 x 10W
Weight (kg)
3.1 4kg 4.9kg
Colors
RGBAW + UV
Stroboscope effect
Yes, 0–20 Hz
Power source
Sector
