JB SYSTEMS

VECTOR SCAN

Reference: B05544
€459.00 Tax included
10x 12x

Click to learn more

Taking out a loan is a commitment with an obligation of repayment. Verify your ability to repay the loan before committing.

Buy now and pay as you go
1 At checkout step, select Younited Pay 2 Choose the repayment duration 3 Simply and securely connect your bank account 4 Receive a response within seconds

Start paying in just 30 days !
10x 12x
Payment in   12  times

Your purchase for   41.97 €   / months

Total amount due 503.68 €

   Total credit amount

459 €

   Interest (excl. optional insurance)

44.68 €

Fixed APR
(excluding optional insurance) 18.99 %
Fixed lending rate 17.51 %

100W LED scanner with DMX, 7 rotating gobos, 3-facet prism and color wheel, DMX, standalone and master/slave modes, ideal for mobile DJs and bars

Quantity
  In stock
Shipped within 2 to 4 days

Add to favorites Add to compare
reassuarence-customicon

Manufacturer's warranty: 2 years

reassuarence-customicon

Free delivery from €99

reassuarence-customicon

Easy payment: satisfied or refunded

reassuarence-customicon

Need help ?

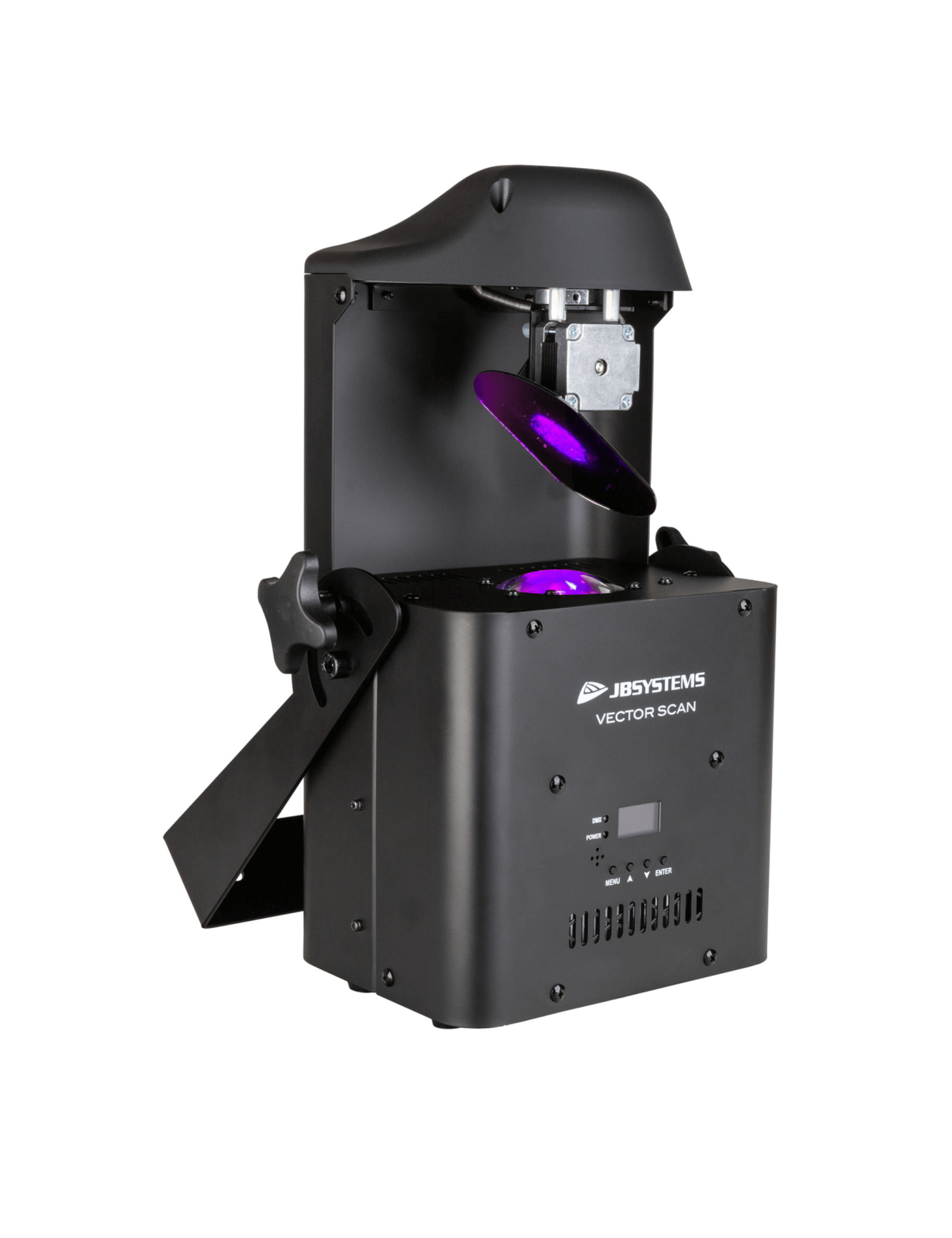

JB Systems VECTOR SCAN – Professional 100W LED scanner for DJs, bars and small venues

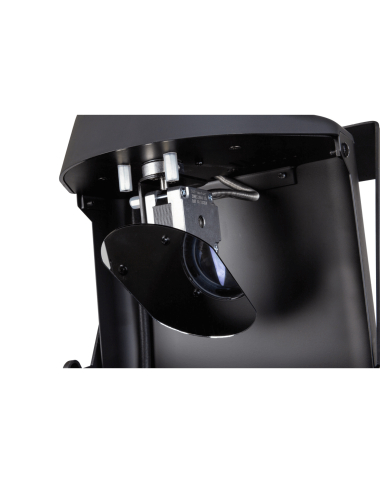

The JB Systems VECTOR SCAN is a powerful and versatile 100W LED scanner, perfectly suited for mobile DJs, bars, cafés, clubs and rental companies. It combines a high-intensity white LED source with precise optics featuring a rotating gobo wheel, a color wheel, a 3-facet circular prism and motorized focus. Together, these elements deliver sharp, colorful and highly dynamic projections, ideal for energizing dancefloors or enhancing any event.

Thanks to its built-in programs, the VECTOR SCAN can run instantly in standalone mode, including sound activation via the internal microphone, generating evolving shows that constantly change. Experienced users will appreciate its advanced DMX control with 5, 8 or 14 channels, giving full control over colors, gobos, movement, strobe and focus. Multiple units can be synchronized in master/slave mode for impressive group effects.

This scanner is also prepared for wireless DMX: simply plug in an optional Briteq® WTR-DMX dongle. The OLED display ensures easy navigation through the menu, while its 3-pin XLR and PowerCon® connectors provide reliable and professional installation. Robust, bright and easy to operate, the VECTOR SCAN is an excellent choice for any mobile or fixed lighting setup.


Specifications:

  • Type: Professional 100W LED scanner with gobos, color wheel, prism and motorized focus

  • LED source: High-power 100W white LED

  • Optical features: motorized focus, 3-facet circular prism, 0–100% dimming, strobe effects

  • Gobo wheel: 7 rotating gobos + open

  • Color wheel: 8 colors + open

  • Operating modes: DMX (5, 8 or 14 channels), standalone (auto / sound), master/slave

  • Wireless DMX compatibility: optional Briteq® WTR-DMX dongle via USB

  • Interface: OLED display

  • DMX connectors: 3-pin XLR IN/OUT

  • Power connectors: PowerCon® or compatible IN/OUT

  • Power supply: AC 100–240 V, 50/60 Hz, 130 W consumption

  • Mounting: M12 mounting point

  • IP rating: IP20 – indoor use

  • Beam angle: 18°

  • Dimensions: 251 × 142 × 378 mm

  • Weight: 5.5 kg

  • Color: black


Key Points:

  • Powerful 100W LED scanner: bright, sharp and dynamic projections.

  • Professional effects: rotating gobos, 3-facet prism, motorized focus and full color wheel.

  • Advanced control: 5 / 8 / 14 DMX channels + standalone and master/slave modes.

  • Built-in programs: varied shows with no technical setup required.

  • Wireless DMX ready: compatible with Briteq® WTR-DMX for clean and simple installations.

Manufacturer

Data sheet

DMX channels
5, 8 or 14 channels
Controllable in DMX
Yes
Category
LED Effect - Motorized Scan Projector
Input connectors
DMX XLR F 3 pins
Output connectors
DMX XLR M 3 pins
Dimensions
251 × 142 × 378 mm
Number of Gobo Wheel
7 rotary + open
Power of the light source
LED 100W
Weight (kg)
5.5 kg
Light source
LED
Colors
8 colors + open
Dimmer
0 - 100%
Beam angle
18°
Stroboscope effect
Yes
Finishing
Black
Application
Stage lighting and animations
Power source
AC 100 - 240 V, 50/60 Hz
Protection index
IP20 - Indoor use
Entrypower source sector
E/S Powercon

Quick Compare

Product
 VECTOR SCAN GIGBAR3ILS MAIN GigBAR 3 ILS
Availability
Price
€459.00
€459.00 €453.00
Description

100W LED scanner with DMX, 7 rotating gobos, 3-facet prism and color wheel, DMX, standalone and master/slave modes, ideal for mobile DJs and bars

Chauvet DJ GigBAR 3 ILS – 3-in-1 LED lighting bar with Derby LEDs, Pars LEDs, and LED Strip, compatible with Instant Light Show (ILS), DMX and wireless control, quick setup and expandable system.
Frequency band
 D-Fi: 2.412 – 2.484 GHz
Footswitch: 433 MHz
DMX channels
 5, 8 or 14 channels 2, 21 or 132
Connection
USB port for D-Fi USB
Controllable in DMX
 Yes Yes
Category
 LED Effect - Motorized Scan Projector 3-in-1 mobile light kit, LED effects bar
Input connectors
 DMX XLR F 3 pins 3-Pin DMX XLR
Output connectors
 DMX XLR M 3 pins 3-Pin DMX XLR
Height
 Adjustable: 1.5 to 2.4 m
Dimensions
 251 × 142 × 378 mm 1047 × 94.5 × 272 mm
Number of Gobo Wheel
 7 rotary + open
Scope
 30 meters (max.)
Power of the light source
 LED 100W Derby LED: 6 x 3 W
LED Par: 6 x 3.7 W
LED strip: 5 W
Weight (kg)
 5.5 kg 6 kg
Light source
 LED 6 quad-color RGB + UV LEDs (Par LED)
74 RGB LEDs (LED strip)
6 LEDs (2R/2G/2B) (Derby)
Colors
 8 colors + open RGB + UV
Dimmer
 0 - 100%
Beam angle
 18°
Stroboscope effect
 Yes Yes, 0 to 20 Hz
Finishing
 Black
Application
 Stage lighting and animations DJS
Power source
AC 100 - 240 V, 50/60 Hz IEC: 100 - 240 VAC, 50/60 Hz
Battery operation
 Not
Protection index
 IP20 - Indoor use
Conformity EC standard
 Yes
Entrypower source sector
 E/S Powercon

In the same category

Chauvet DJ EZBeam Q3 ILS Chauvet DJ EZBeam Q3 ILS Chauvet DJ EZBeam Q3 ILS
CHAUVET DJ

Chauvet DJ EZBeam Q3 ILS

€359.00 €230.00
     In stock

Battery-powered LED projector with 3 RGBA LEDs, 180° tilt and silent operation. Compatible with ILS and D-Fi USB for wireless DMX control and synchronized shows.

Chauvet DJ Rotosphere HP Chauvet DJ Rotosphere HP Chauvet DJ Rotosphere HP
CHAUVET DJ

Chauvet DJ Rotosphere HP

€359.00 €240.00
     In stock

360° LED mirror ball simulator with RGBW & CMYO LEDs, adjustable slow rotation, DMX 3/12/28 channel control, auto programmes and IRC-6 compatibility.

Core 5x1 ILS Core 5x1 ILS Core 5x1 ILS
CHAUVET DJ

Core 5x1 ILS

€570.00 €475.00
    On command

Chauvet DJ Core 5X1 ILS – Versatile RGB+WW LED fixture with COB technology, pixel mapping, chase/blinder effects, ILS compatibility and toolless connectivity

Starburst
ADJ

Starburst

€299.00 €235.00
     In stock

Multicolor beam LED sphere effect. Source composed of 5 15W HEX LEDs. Standalone operation or as master/slave. 3 operational modes: Auto Run, with music or via DMX control.

QUADRA MOVE QUADRA MOVE QUADRA MOVE
JB SYSTEMS

QUADRA MOVE

€489.00
     In stock

JB Systems Quadra Move – Light bar with 4 × 40 W RGBW LED moving heads, DMX 1/5/24/56 channels, auto/sound/master–slave modes, wireless DMX ready, LCD display, XLR + PowerCON I/O.

FLEXstand FX ILS FLEXstand FX ILS FLEXstand FX ILS
CHAUVET DJ

FLEXstand FX ILS

€479.00 €359.00
     In stock

FLEXstand FX ILS - Multifunction telescopic foot with integrated LED strip, automatic programs and DMX, RF and ILS compatibility. Robust and practical, it adapts to the needs of DJs and events.

PARTY BAR PARTY BAR PARTY BAR
JB SYSTEMS

PARTY BAR

€399.00 €369.00
     In stock

JB Systems PARTY BAR – Ultra-compact 4-in-1 lighting system with rotating RGB Derby effects, 9 W RGB LED spotlights, cool white strobe lights, dual-color Class 3R laser, 27-channel DMX, IR remote, master/slave mode, and included carrying bag.

  • Nouveau
GIGBAR3ILS MAIN GIGBAR3ILS MAIN GIGBAR3ILS MAIN
CHAUVET DJ

GigBAR 3 ILS

€459.00 €453.00
     In stock

Chauvet DJ GigBAR 3 ILS – 3-in-1 LED lighting bar with Derby LEDs, Pars LEDs, and LED Strip, compatible with Instant Light Show (ILS), DMX and wireless control, quick setup and expandable system.

GIGBAR MOVE ILS GIGBAR MOVE ILS GIGBAR MOVE ILS
CHAUVET DJ

CHAUVET DJ GIGBAR MOVE ILS

€999.00
(1 review)
€711.00
     In stock

5 in 1 portable standing lighting system with motorized lyres, laser, derbys and strobe effect. Control via remote pedal or DMX + ILS system

Freedom Flex Stick X4 Freedom Flex Stick X4 Freedom Flex Stick X4
CHAUVET DJ

Freedom Flex Stick X4

€1,734.00 €1,399.00
     In stock

Pack of 4 LED quad-colored self-carrying bars with interchangeable batteries and white sleeves. High flexibility, DMX/USB-C connectivity, and up to 8 hours autonomy. Comes in molded transport case.

GigBAR Bridge ILS GigBAR Bridge ILS GigBAR Bridge ILS
CHAUVET DJ

GigBAR Bridge ILS

€899.00 €679.00
     In stock

2-in-1 lighting bar with 40 W moving heads and RGBAW+UV washes, built-in D-Fi transmitter, DMX/ILS control, color LCD screen, included mounting hardware, perfect for dynamic shows.

HEXAGON 3D HEXAGON 3D HEXAGON 3D
JB SYSTEMS

HEXAGON 3D

€99.00
     In stock

JB Systems HEXAGON 3D – RGB 3D mirror effect, auto/sound/DMX modes (3–9 channels), master/slave operation, 4-digit LED display, IEC + XLR I/O, perfect for immersive decorative lighting.

Kinta FX ILS Kinta FX ILS Kinta FX ILS
CHAUVET DJ

Kinta FX ILS

€210.00 €143.00
     In stock

Compact multi-effect projector combining Kinta, red/green laser, and SMD strobe. Compatible with ILS and D-Fi USB, it delivers sharp and dynamic beams for DJs and events.

You might also like

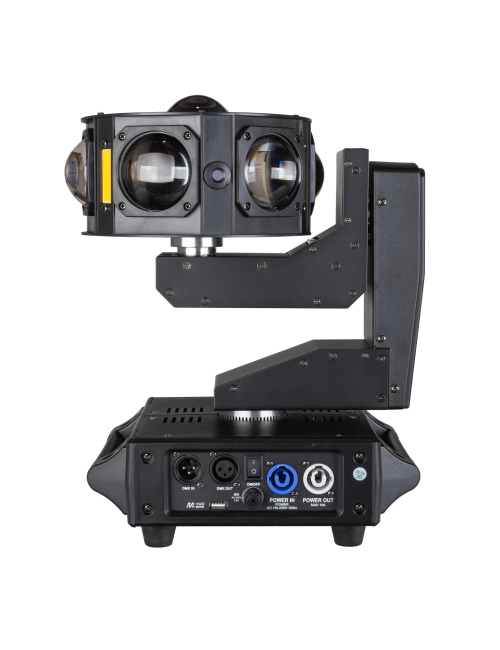

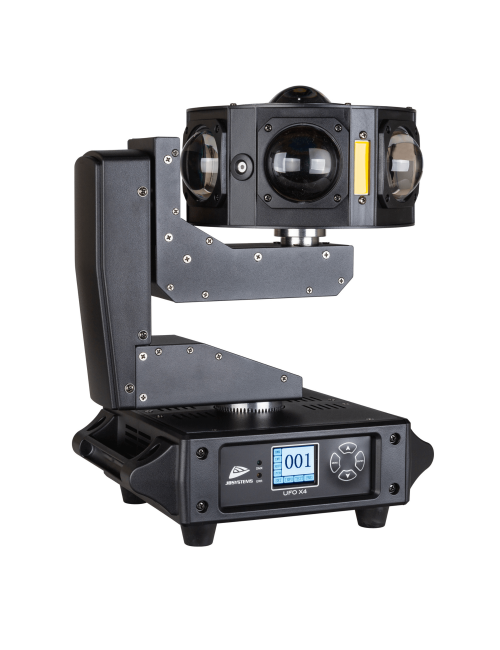

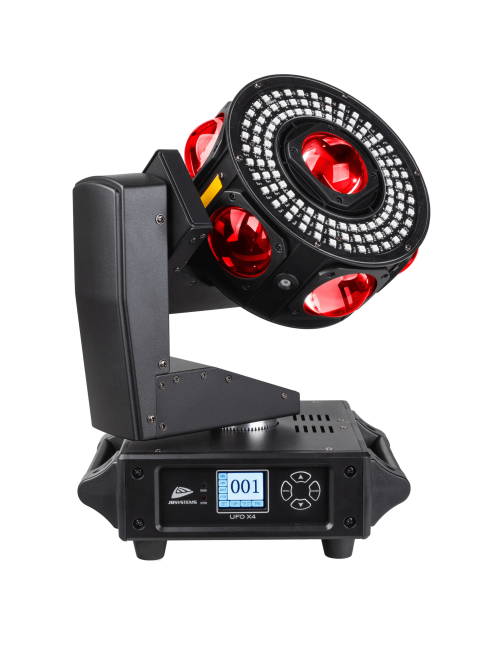

UFO X4 UFO X4 UFO X4
JB SYSTEMS

UFO X4

€390.00
     In stock

4-in-1 multi-effects lighting unit combining lasers, strobe LEDs, RGBW LEDs and RGB LEDs for wide room coverage and dynamic visual effects. Operates in DMX, standalone or master/slave modes.

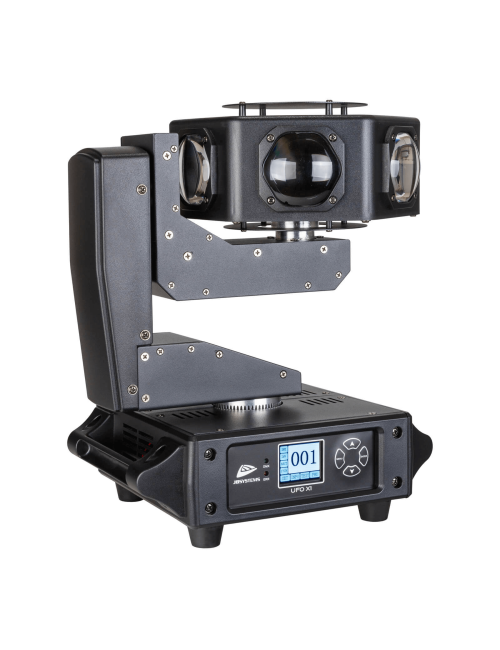

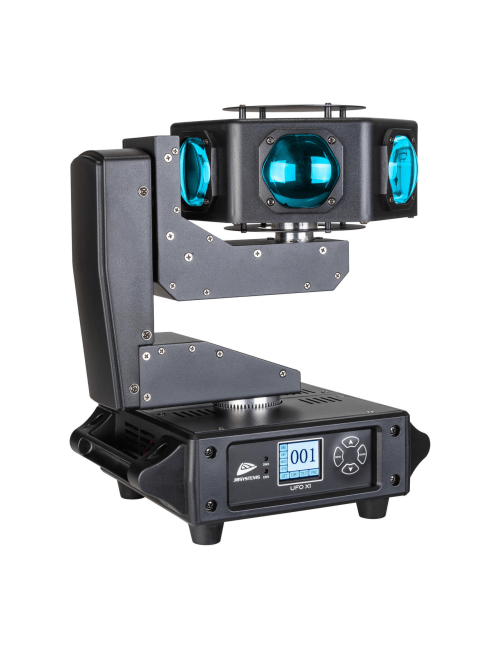

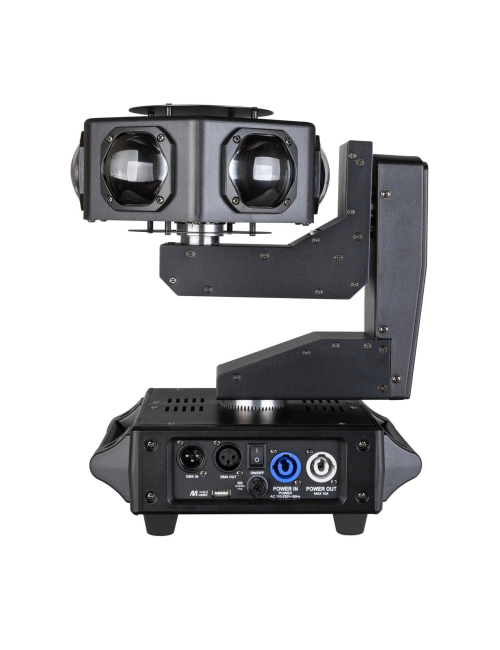

UFO X1 UFO X1 UFO X1
JB SYSTEMS

UFO X1

€369.00
     In stock

Rotating RGBW 40W LED effect for wide coverage and dynamic visual effects. Operates in DMX, standalone or master/slave modes.

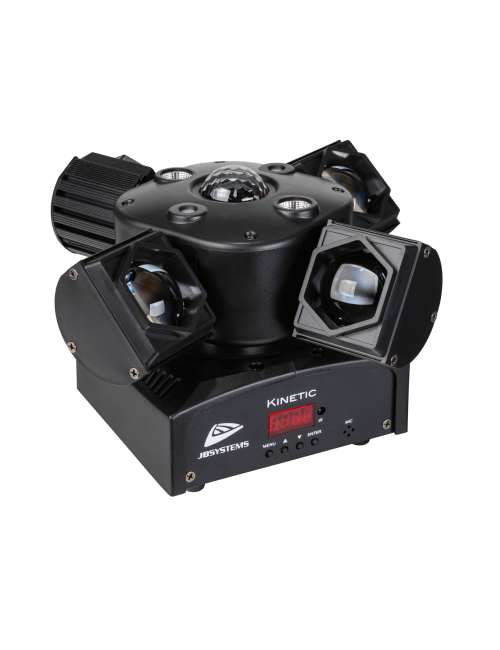

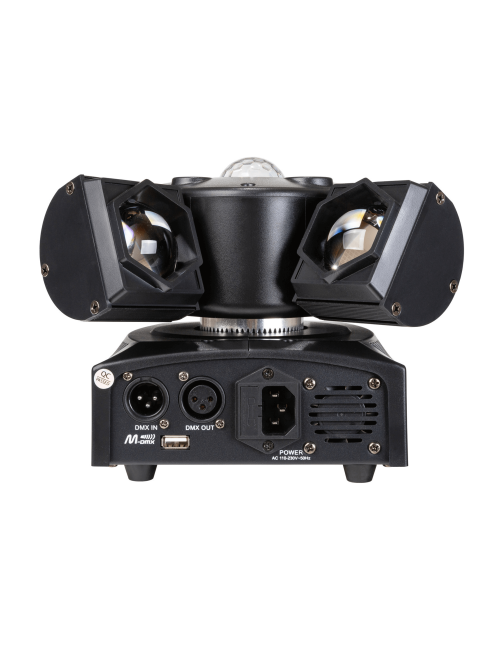

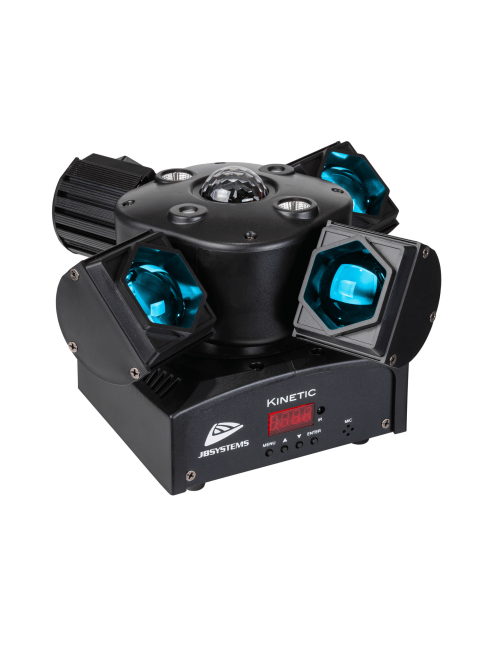

KINETIC KINETIC KINETIC
JB SYSTEMS

KINETIC

€155.00
     In stock

Compact multi-effect light for DJs, pubs and parties, RGBW 4-in-1 LED effect with rotating beams, strobe LEDs and R/G laser

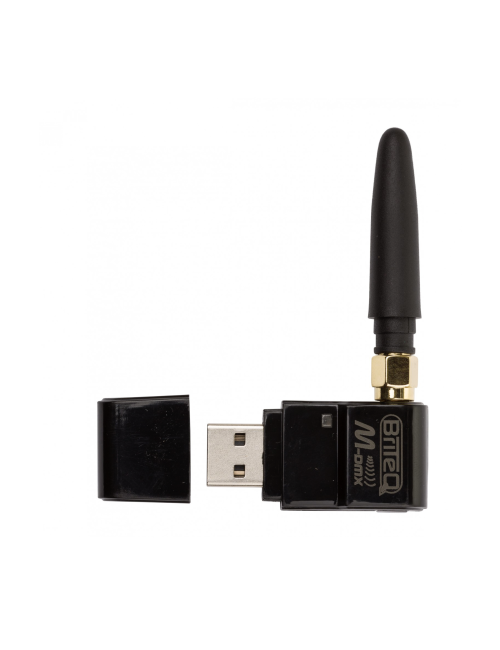

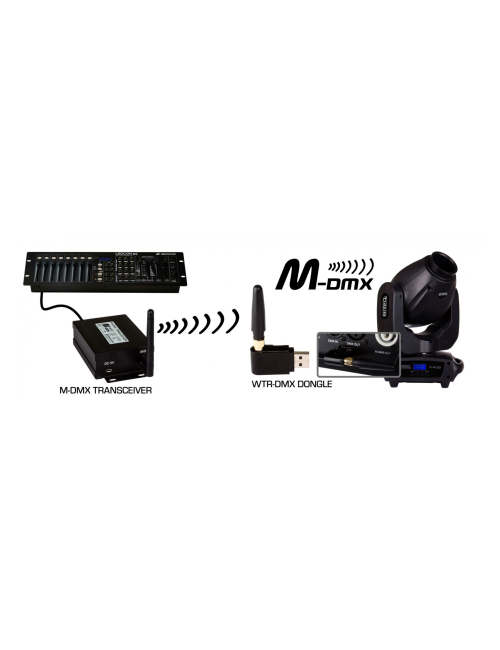

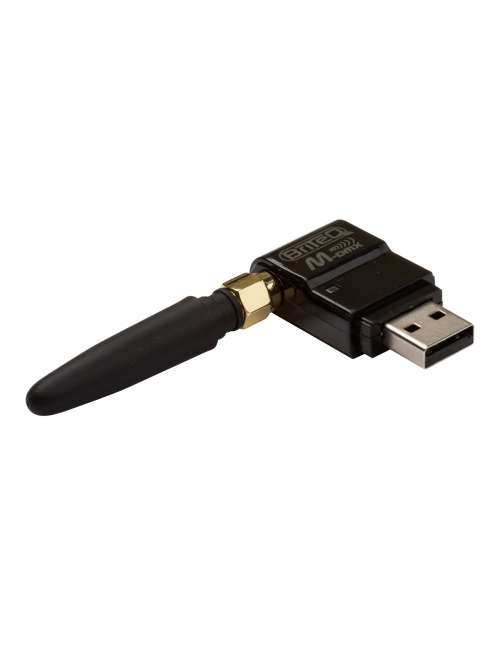

WTR-DMX Dongle WTR-DMX Dongle WTR-DMX Dongle
