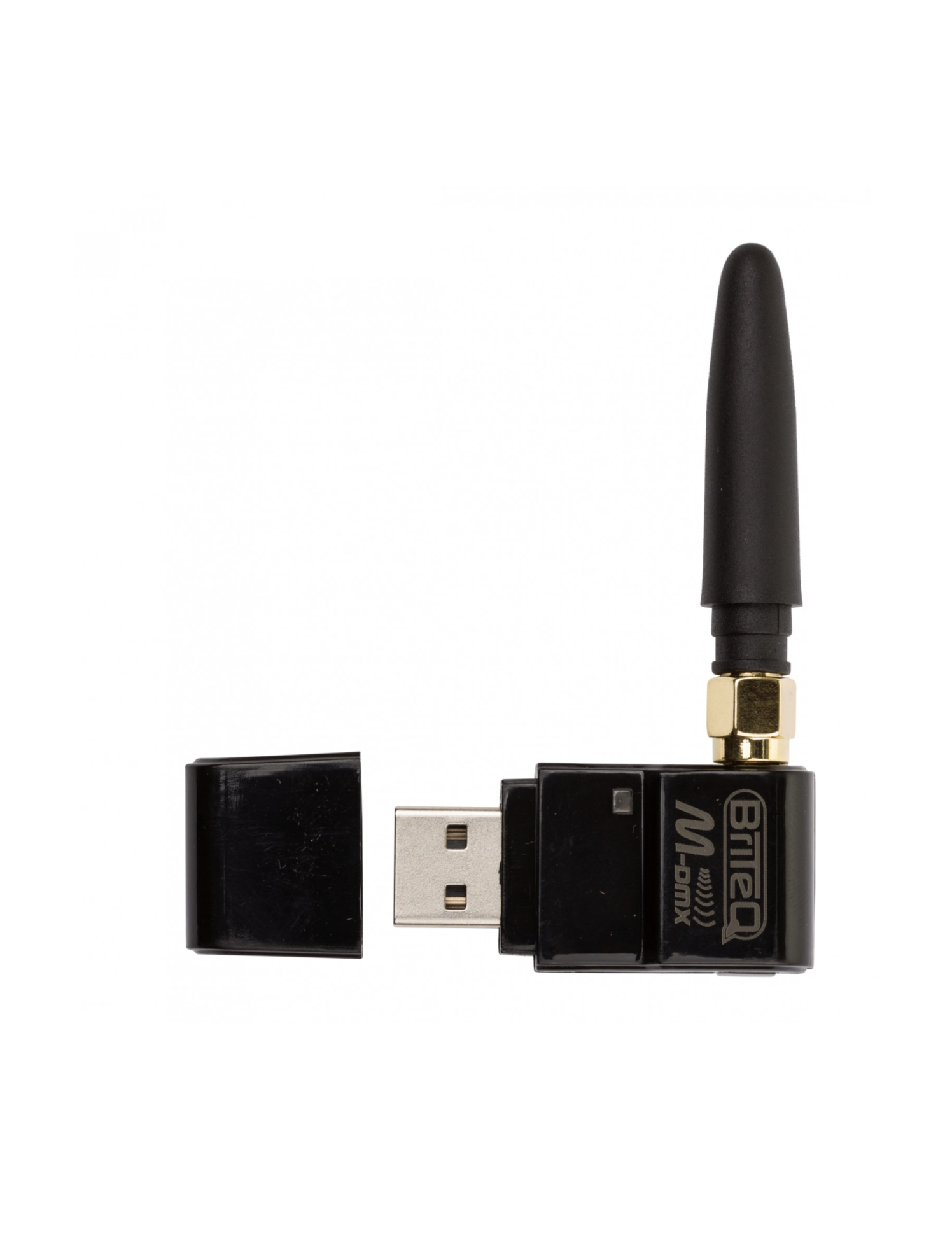

Briteq WTR-DMX Dongle – Ultra-Reliable Wireless DMX Transceiver
The Briteq WTR-DMX Dongle is a compact, professional solution designed to provide extremely reliable wireless DMX transmission for stage setups, DJ performances, live events, or fixed installations. Fully compatible with the renowned “Wireless Solution” W-DMX™ protocol, it ensures secure, stable and high-performance communication even in demanding lighting environments.
Thanks to its perfect compatibility with Briteq WR-DMXG4 (4632) and WT-DMXG4 (4633) systems, this dongle integrates effortlessly into your lighting network with no complex configuration required. A single button press is all it takes to pair the device, making it easy to use for both experienced technicians and casual users.
Its USB A connector allows direct and fast connection to compatible fixtures without additional adapters. Operating in the license-free 2.4 GHz band, it can be used worldwide without restrictions. Its 32-bit ARM processor ensures optimal processing speed, while the advanced frequency-hopping spread spectrum system (up to 1,800 hops per second) guarantees a stable and interference-resistant link.
The WTR-DMX Dongle also provides virtually zero-latency DMX transmission thanks to DMA transfer, making it ideal for applications requiring maximum responsiveness. Its small integrated antenna improves mechanical durability and touring reliability. With a generous range of approximately 100 meters in open environments, this dongle is a robust and high-performance solution for all wireless lighting setups.
Specifications:
- Type: Wireless DMX dongle compatible with W-DMX™
- Compatibility: Fully compatible with Briteq WR-DMXG4 (4632) and WT-DMXG4 (4633)
- Frequency band: 2.4 GHz, license-free worldwide use
- Processor: 32-bit ARM for high-speed processing
- Transmission: Frequency-hopping spread spectrum (1,800 hops/s) for optimal stability
- Latency: DMA transfer for virtually delay-free DMX
- Control: One-button configuration
- Connection: USB A (5 Vdc power) – Wireless DMX input and output
- Range: Approximately 100 m in open space
- Certification: R&TTE compliant
- Color: Black – Indoor IP rating
- Dimensions: 7.1 × 4.24 × 1.1 cm
- Weight: 0.02 kg
Key Points:
- Ultra-reliable wireless DMX: W-DMX™ compatible with advanced frequency hopping.
- Instant setup: One-button pairing and simple USB connection.
- High performance: 32-bit ARM processor and near-zero latency.
- Worldwide operation: 2.4 GHz band usable everywhere.
- Compact form factor: Lightweight, durable and ideal for touring or fixed installations.
