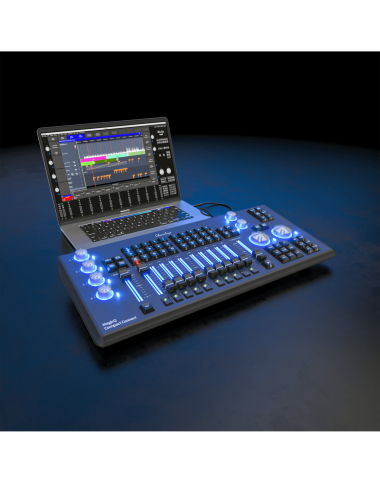

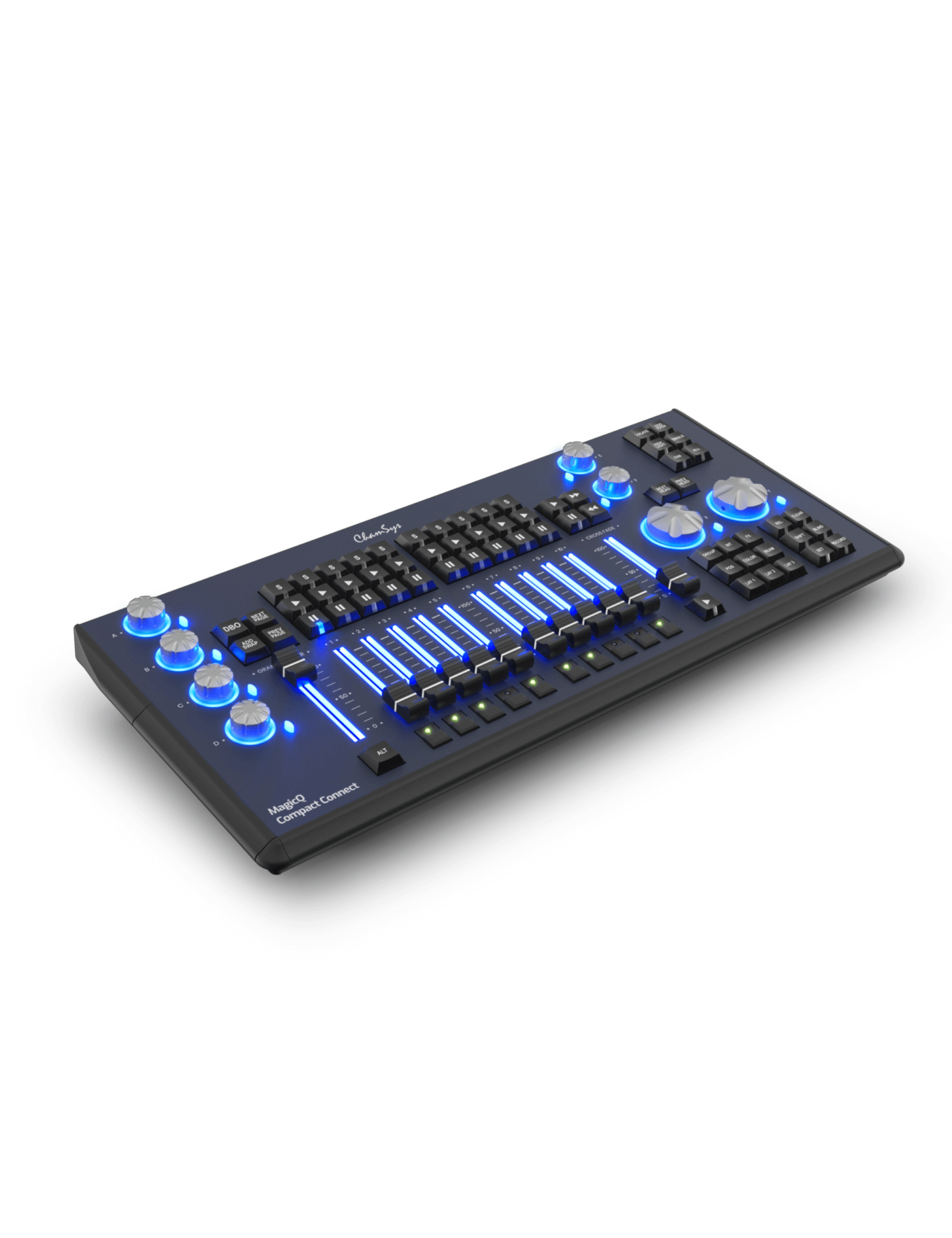

MagicQ Compact Connect – Compact and Powerful USB Control Surface
The MagicQ Compact Connect belongs to the MagicQ Compact Series and stands out as a compact USB control surface designed to offer a portable, powerful, and affordable solution for controlling lighting, media, and LED systems from any Windows, macOS, or Linux computer. Lightweight and small enough to fit into carry-on luggage, it is perfectly suited for touring lighting designers as well as fixed installations in theatres, clubs, schools, studios, or performance venues.
The Compact Connect features 2 direct DMX512 outputs (RDM-compatible) and can send up to 64 ArtNet and sACN universes through its built-in network port, without requiring licences or external dongles. Its ergonomic layout includes 8 illuminated rotary encoders for attribute parameters and 10 playback faders equipped with Flash, Go, and Select buttons. A dedicated Grand Master and Crossfader provide precise global level control in live situations.
With its integrated USB hub, audio input, 10Scene/Remote port, and dedicated work light socket, the Compact Connect offers complete connectivity for every professional environment. The MagicQ software enables access to an advanced programming environment with extremely high capacities for cues, cue stacks, groups, and palettes, as well as extensive media server handling with up to 50 layers.
Its compact form factor, processing power, and attractive price make the MagicQ Compact Connect an ideal solution for rental companies, lighting designers, and technicians looking for modern, efficient, and intuitive control of fixtures and media while maintaining maximum portability.
Specifications:
- Control surface: MagicQ Compact Series, USB for PC/Mac/Linux
- Playbacks: 10 faders with Flash / Go / Select buttons
- Attribute encoders: 8 illuminated rotary encoders
- Direct DMX outputs: 2× DMX512 ports with RDM support
- ArtNet/sACN universes: 64 universes via integrated network port
- USB ports: 5 (4× USB-A, 1× USB-C)
- Network port: 1
- Audio input: Yes (1 channel, 7-band EQ)
- 10Scene input: Yes
- Work light: Yes (dedicated port)
- Kensington lock: Yes
- Power: Neutrik powerCON TRUE1, 110–240 VAC
- Max power consumption: 15 W
- Software universes: 64 universes – up to 32,768 DMX channels
- Cue capacity: Up to 5,000 cues / 2,000 cue stacks
- Groups: Up to 5,000 – Palettes: Up to 4,096
- Media servers: Up to 50 layers supported
- Supported systems: Windows 8.1+, macOS 10.13+, Linux
- Included accessories: USB A-C cable, dual-color work light, protective cover, powerCON TRUE1 cable
- Console dimensions: 522 × 230 × 65 mm (78 mm above encoders)
- Console weight: 3.65 kg
- Package dimensions: 630 × 360 × 230 mm — Weight: 5.5 kg

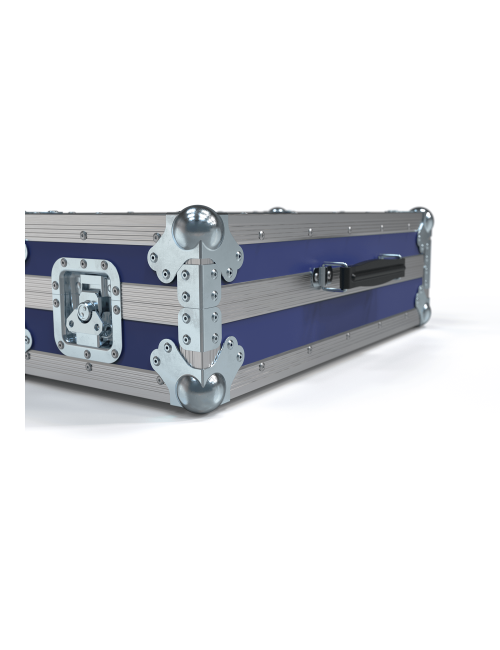

- Flightcase dimensions: 630 × 360 × 230 mm — Weight: 8 kg
Key Points:
- Ultra-portable control surface, compatible with carry-on requirements
- 64 universes via ArtNet/sACN without licences or dongles
- 2 direct DMX outputs with integrated RDM
- 10 playbacks + illuminated encoders for intuitive live control
- Free MagicQ software for PC/Mac/Linux with extensive programming features
