ChamSys MagicQ DIN

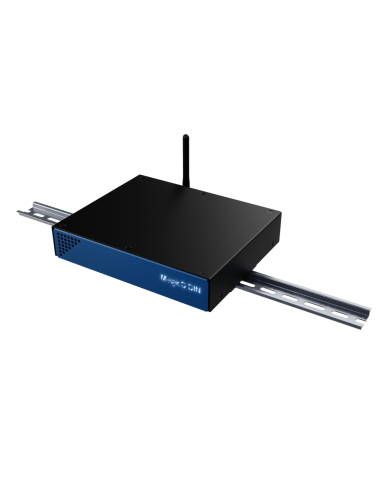

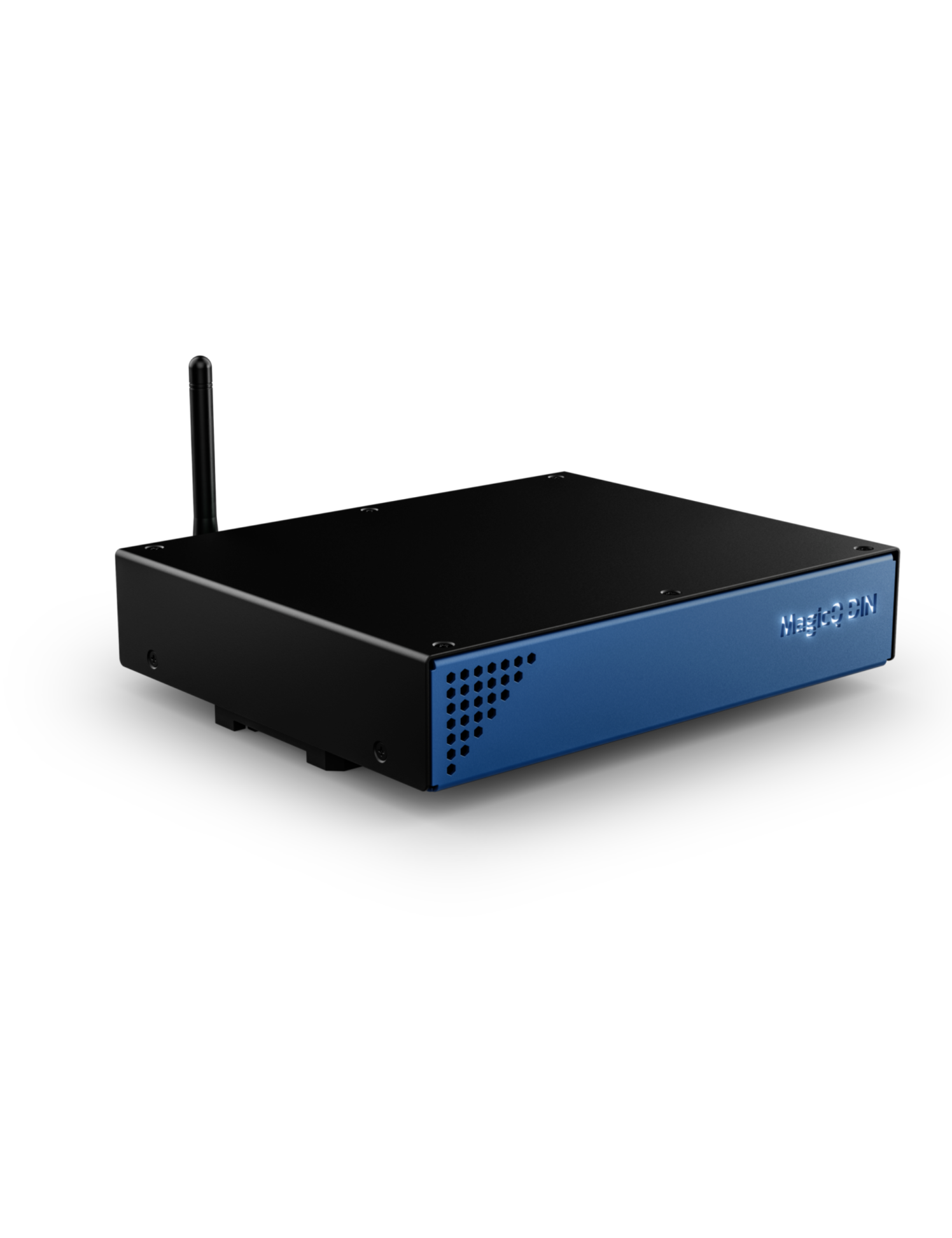

MagicQ DIN – DIN-rail lighting processor for fixed installations and architectural lighting

The MagicQ DIN is a compact DIN-rail mounting solution that brings the full power of the MagicQ software into a format perfectly suited for fixed installations, control rooms, theatres, houses of worship, and any architectural environment requiring advanced lighting control.

Fully compatible with all MagicQ functionalities, the MagicQ DIN natively supports scheduled events, OSC, UDP and multiple remote protocols. It features 24 DMX universes expandable to 48 universes via licence, along with two RDM-compatible DMX outputs using Phoenix screw terminals. Built-in WiFi enables programming and remote control, while the four 10Scene ports allow connection of up to 40 wall plates.

Like all MagicQ solutions, it provides powerful tools such as pixel mapping, multi-cell fixture management, an advanced FX generator, an integrated Color Picker and a library containing more than 48,000 fixtures.

With its included accessories and mounting brackets, the MagicQ DIN is ready to be integrated into any modern lighting infrastructure.

Specifications:

• Universes: 24 (expandable to 48 via licence)


• DMX Outputs: 2 × Phoenix screw terminals (RDM compatible)


• 10Scene Ports: 4 (up to 40 wall plates connectable)


• Built-in WiFi: Yes


• Network Ports: 1


• USB Ports: 2


• External Monitor: HDMI 1920×1080


• Power Input: 12 V DC


• Maximum Power Consumption: 60 W


• Max DMX Channels: 12,288 (expandable to 24,576)


• Max Fixtures: 12,288 (expandable to 24,576)


• Max Cues: 5,000


• Max Cue Stacks: 2,000


• Max Groups: 5,000


• Max Palettes: 4,096


• Media Server Layers: 50 layers supported


• OSC Support: Yes


• RDM Autopatch: Yes


• Fixture Library: 48,000+ fixtures


• Advanced Tools: Pixel mapping, Color Picker, FX Generator


• Dimensions: 200 × 165 × 40 mm


• Weight: 0.65 kg


• Included Accessories: WiFi antenna, DIN mounting brackets, 4 × 10Scene connectors, 12 V power supply



Key Points:

• DIN-rail version ideal for fixed installations and technical rooms


• 24 DMX universes expandable to 48 for scalable systems


• Built-in WiFi for programming and remote control


• Four 10Scene ports supporting up to 40 wall plates


• Supports OSC and UDP with full MagicQ advanced tools
