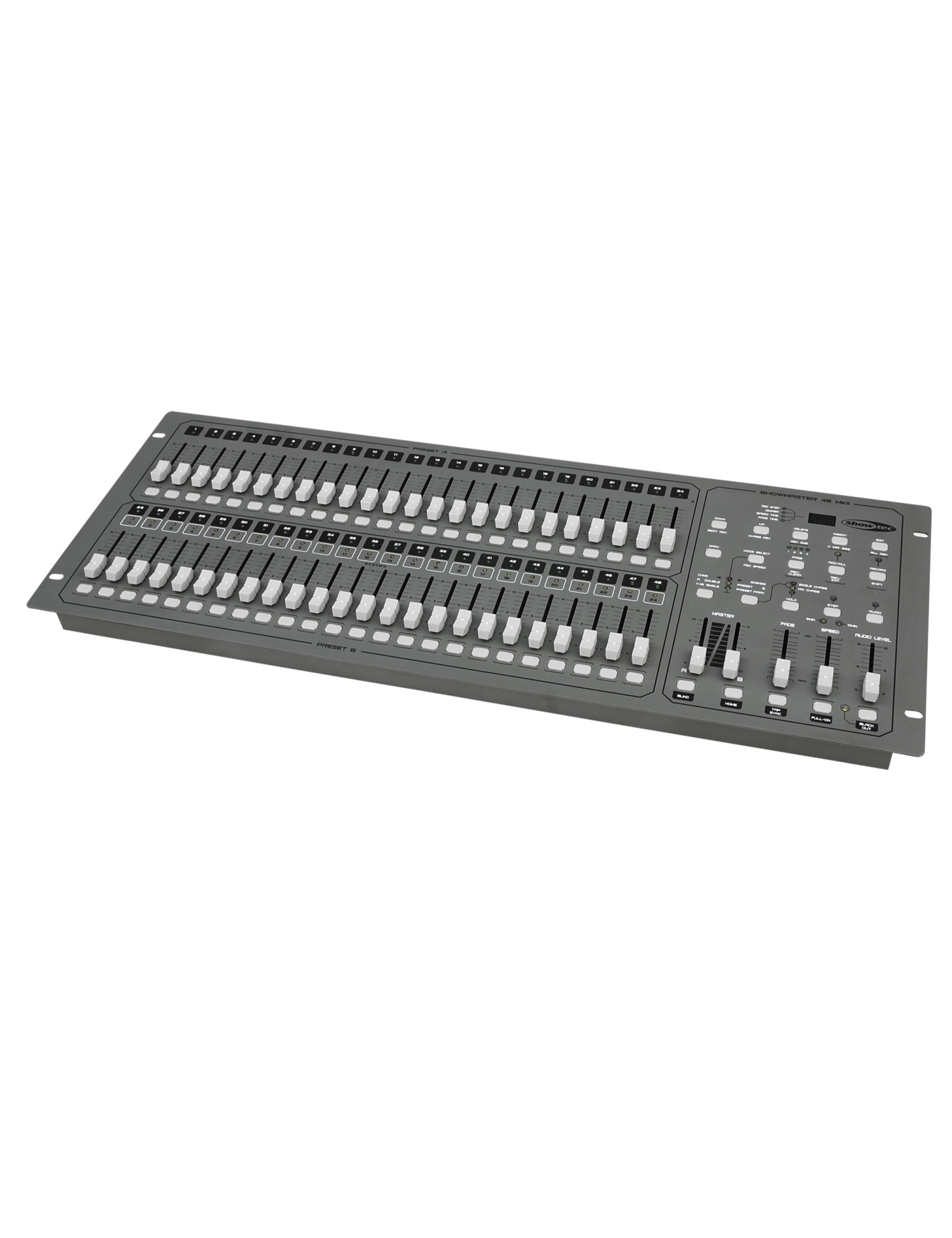

SHOWTEC SHOWMASTER 48 MKII - PROFESSIONAL 48-CHANNEL DMX CONTROLLER
The Showtec Showmaster 48 MKII is a professional DMX controller designed for lighting technicians, event production companies, theatres, performance venues and any application requiring precise and reliable lighting control. As the evolution of the renowned Showmaster series, this MKII version features 48 DMX channels and a highly flexible architecture capable of controlling a large number of conventional and intelligent fixtures simultaneously. Its physical interface, equipped with 48 multifunction faders, provides direct access to lighting levels and allows quick real-time adjustments during live performances.
Designed for advanced lighting show programming, the Showmaster 48 MKII can store up to 96 scenes or chases, each containing up to 999 programmable steps. This gives the console an impressive total capacity of 23,976 memories, making it ideal for creating complex lighting sequences for both permanent installations and temporary events. Programs can be run manually, automatically or synchronized to music via the integrated audio inputs, offering exceptional creative flexibility for dynamic lighting shows.
Thanks to its MIDI In and MIDI Out interfaces, the Showmaster 48 MKII can be integrated into larger control environments or synchronized with other MIDI-compatible devices. This functionality enables fully automated shows or real-time operation from sequencers, digital audio workstations and dedicated control systems. In addition, the remote Blackout and Full On functions allow operators to instantly take control of the lighting system during critical moments of an event.
Designed for installation in a standard equipment rack thanks to its 6U format, the Showtec Showmaster 48 MKII features a robust construction combining metal and high-strength plastic components. Its universal 100–240 V power supply allows worldwide operation, while the 3-pin XLR DMX output ensures seamless integration with most professional lighting systems. Reliable, versatile and intuitive, it is an ideal solution for users seeking a powerful DMX controller capable of managing sophisticated lighting shows without relying on a computer.
Specifications:
- Type: Programmable DMX lighting controller
- DMX Channels: 48 channels
- Control Modes: Manual, MIDI, Sound-controlled
- Faders: 53 faders including 48 multifunction faders
- Buttons: 68 control buttons
- Scenes / Chases: Up to 96 programmable scenes or chases
- Steps: Up to 999 steps per scene or chase
- Memory Capacity: 23,976 total memories
- Audio Inputs: 2 audio trigger inputs
- MIDI Interface: MIDI In / MIDI Out
- Special Functions: Remote Blackout and Full On
- DMX Output: 3-pin XLR
- Power Supply: External power adapter, 100–240 V AC / 12 V DC
- Power Consumption: 6 W
- Indicators: Status, output level and signal LEDs
- Format: 6U rack-mountable
- Dimensions: 710 x 267 x 90 mm
- Weight: 6.2 kg
- Materials: Metal and plastic
- IP Rating: IP20 (indoor use only)
- Maximum Ambient Temperature: 40°C
- Included Accessories: Power adapter
Key Points:
- Controls up to 48 DMX channels from a single console
- 48 dedicated faders for direct access to lighting levels
- Stores up to 96 programmable scenes and chases
- Up to 999 steps per program for complex lighting shows
- Total memory capacity of 23,976 programmed steps
- Integrated sound synchronization for music-driven light shows
- MIDI In and MIDI Out interfaces for advanced system integration
- Remote-access Blackout and Full On functions
- 6U rack-mountable format ideal for fixed and mobile installations
- Robust construction designed for intensive professional use
