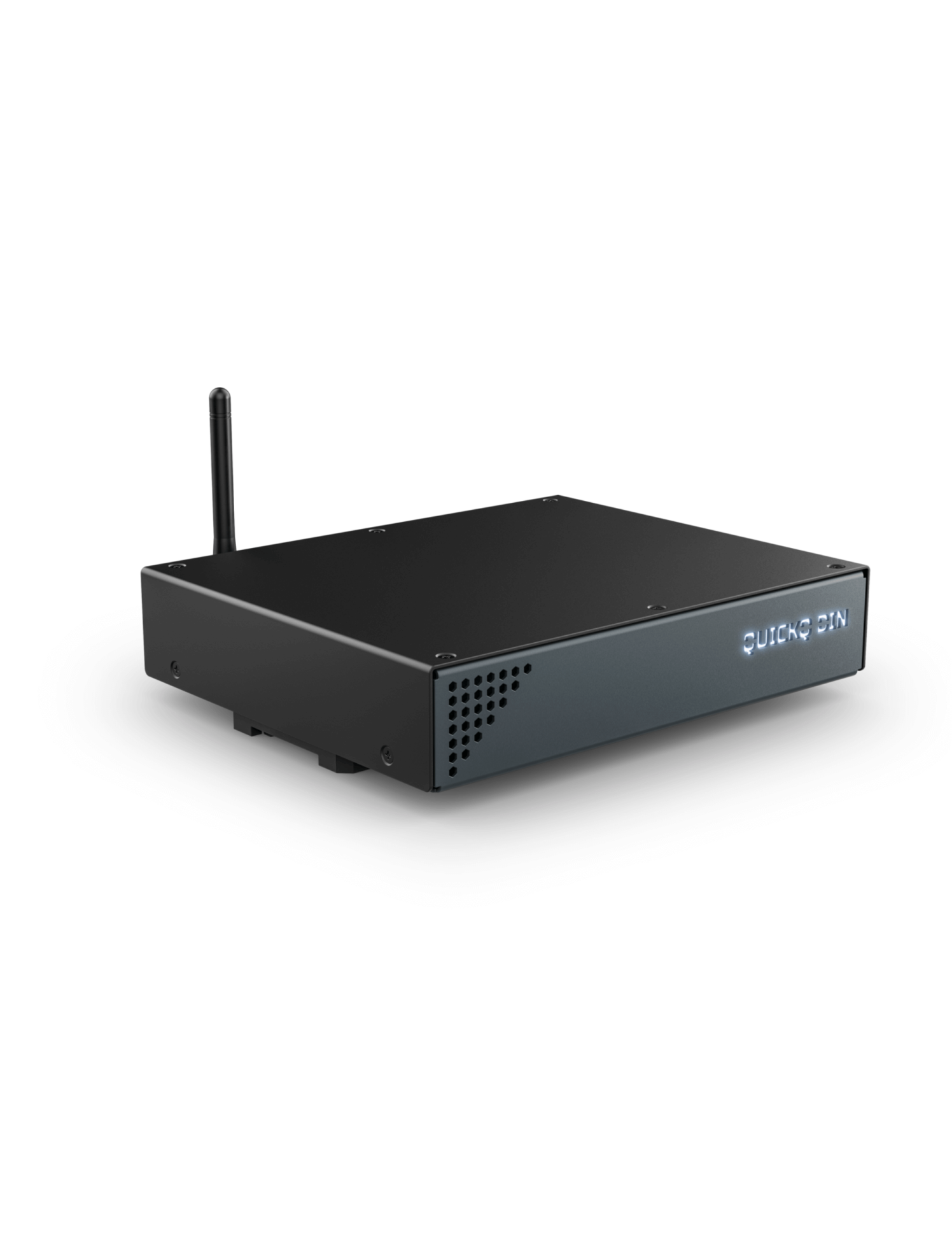

ChamSys QuickQ DIN – 4-Universe DMX Controller with DIN Rail Mounting
The ChamSys QuickQ DIN brings the simplicity and power of the QuickQ system into a compact format designed for installations where space is limited. Created for integrators, lighting designers, and permanent installation technicians, it offers the full QuickQ software experience in a discreet and reliable DIN-rail housing.
With support for 4 DMX universes via ArtNet or sACN, and 2 direct DMX outputs (Phoenix connectors, RDM compatible), the QuickQ DIN provides full control for architectural, museum, or stage lighting setups while remaining extremely easy to install and configure.
Its built-in Wi-Fi allows users to program and operate lighting scenes from the QuickQ app on iOS, Android, or Windows. The controller also includes 4x 10Scene ports to connect up to 40 10Scene Wall Plates, enabling intuitive local control – ideal for public, commercial, or institutional environments.
Thanks to the same software as QuickQ consoles, the QuickQ DIN supports Executes, Events, OSC, and full MIDI Timecode management. It also provides offline programming tools through the QuickQ Offline Editor and MagicVis 3D visualizer, allowing professional pre-visualization and show design.

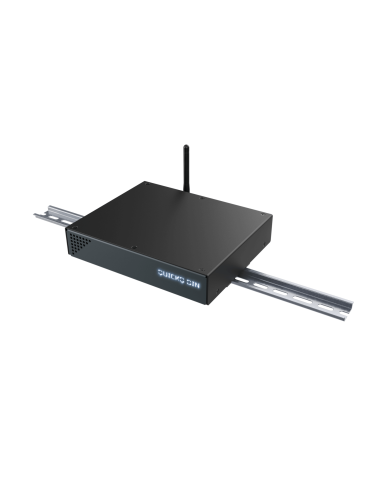

Compact and lightweight, it mounts directly on a DIN rail inside a rack or wall cabinet. Its Hot-Takeover mode allows instant control handover from another QuickQ console, ensuring seamless operational continuity in permanent installations.
Specifications:
- Type: Compact DMX controller for DIN rail mounting
- Supported Universes: 4 (up to 2048 DMX channels)
- DMX Outputs: 2 x Phoenix connectors (RDM compatible)
- 10Scene Ports: 4 ports for up to 40x 10Scene Wall Plates
- Connectivity: Built-in Wi-Fi, 1x Network port, 2x USB, HDMI (1920×1080)
- Compatibility: ArtNet, sACN, RDM, OSC, MIDI Timecode
- Software: QuickQ Offline Editor + MagicVis
- FX: Effect generator, Colour Picker, integrated gel library
- RDM Autopatch: Automatic DMX fixture patching
- Fixture Library: Over 48,000 supported devices
- Power Supply: 12 V DC, max power consumption 60 W
- Dimensions (DIN): 200 × 165 × 40 mm
- Weight: 0.65 kg
- Included Accessories: Wi-Fi antenna, 2x DIN mounting clips, 4x 10Scene connectors, 12V PSU
Key Points:
- Compact DIN format: Perfect for space-limited installations.
- Full lighting control: 4 DMX universes with RDM, ArtNet, and sACN.
- Built-in Wi-Fi: Remote programming and operation via the QuickQ app.
- 10Scene compatibility: Supports up to 40 wall-mounted plates.
- QuickQ software: Intuitive interface identical to ChamSys consoles.
- Hot-Takeover mode: Instant control handover between controllers.
