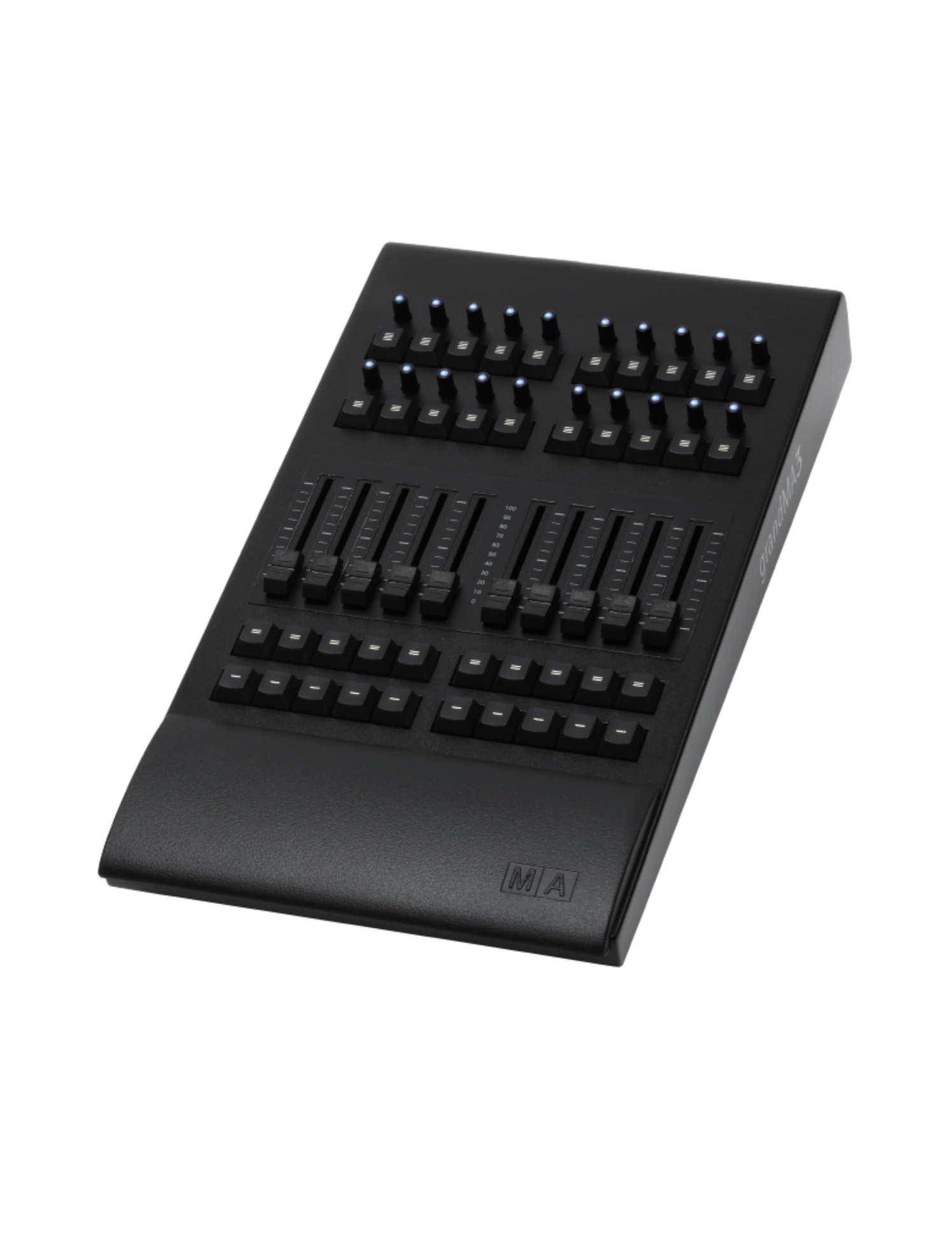

My lighting GMA3 ONPC Fader Wing - Professional Extension of Control and Playback for Grandma3 ONPC
The My lighting GMA3 ONPC Fader Wing is a high-end reading extension designed to significantly enrich your system Grandma3 ONPC. Compact, robust and exemplary ergonomics, it allows to add a complete physical control surface to a GMA3 ONPC Command Winga Command Wing XT or a ONPC Rack-Unit.
Thanks to his 40 independent playbacks, his 10 motorized faders 60 mm and his 20 backlit RGB rotary encodersthe GMA3 ONPC Fader Wing offers fluid and precise physical control similar to Grandma3 consoles. Ideal for reading show, sequence, effects, groups and parameters, it provides exceptional programming and execution power in a small format.
The fader wing unblocks natively 4096 parameters Via Grandma3 PCPC software, allowing to control complex professional lighting facilities: automatic, LEDs, media, architectural installations and advanced scenography.
Thought to integrate into all configurations, the GMA3 ONPC Fader Wing offers a complete connectivity including 2 DMX512-A connectorsa catch USB 2.0 for real-time pilotage, and an exit 4-PIN XLR for reading lamp. It can operate in extension of an existing system or as a stand-alone unit connected to a computer running Grandma3 ONPC.
Solid, durable and designed for intensive use, the my Lighting GMA3 ONPC Fader Wing is the ideal solution for TV studios, theaters, places of worship, providers and parkingors wishing to effectively extend their reading surface with the power of the workflow ma.
Features & Specifications:
- System & Architecture:
- Professional control extension for Grandma3 ONPC
- Number of parameters included: 4096 (HTP / LTP)
- Total Compatibility: Command Wing, Command Wing XT, Rack-Unit
- No mode2 (not applicable)
- Compact format Ideal for fixed installations & playback stations
- Controls & User Interface:
- 40 independent playbacks
- 10 motorized faders 60 mm
- 20 RGB rotary encoders backlit
- Silent keys "Clickless" individually lit & dimmable
- Behavior identical to Grandma3 consoles

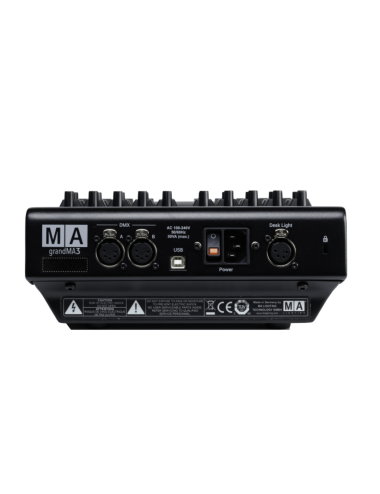

- Connectors & extensions:
- 2 DMX512-A outputs (5-pin XLR female)
- 1 USB 2.0 port (Type B) for PC connection
- 1 XLR 4-PIN exit for lamp reading
- 1 connector IEC-60320 C14 for power source
- Performance & power source :
- Voltagepower source : AC 100 - 240 V; 50/60 Hz
- Maximum power: 50 VA
- Temperature of use: 0 ° C to 40 ° C (32 ° F at 104 ° F)
- Dimensions & Weight:
- 240 × 427 × 102 mm (width × depth × height)
- Net weight: 5 kg (11 lbs)
Key Points:
- Compact extension and professional for Grandma3 onPC
- 4096 parameters available in direct operation
- 10 motorized faders high precision
- 40 Individual Playbacks for advanced execution
- 20 RGB encoders Backlit for extended control
- Complete connectivity : 2 dmx, USB, XLR 4-PIN lamp
- Silent keys and backlight customizable
- Ideal for TV, theater, houses, fixed facilities
- Perfect integration into theMy Lighting Ecosystem
