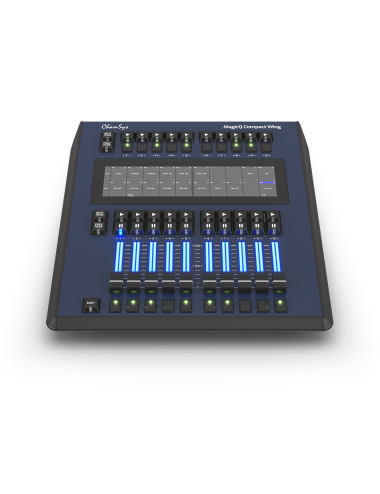

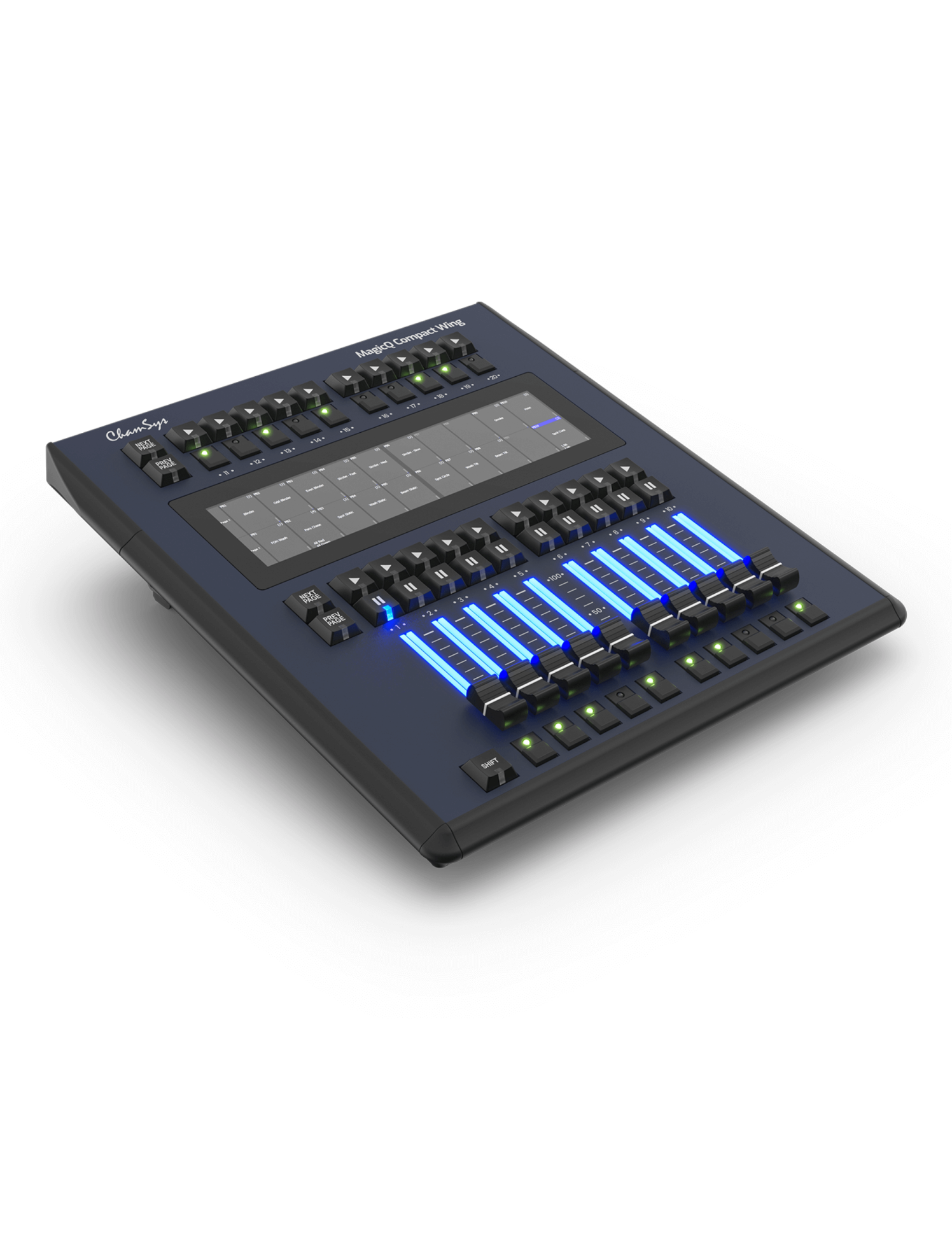

MagicQ Compact Wing

Magicq Compact Wing - Compact and versatile playback extension

The Magicq Compact wing, from the Magicq Compact Series, offers Magicq users an elegant and simple solution to significantly increase their number of PHYSICAL PLAYBACKS. Designed to work in perfect harmony with the MagicQ compact consoles, it is also fully compatible with all current Magicq consoles as well as with systems PC or MacOS.

It proposes a total of 20 playback distributed 10 FADER Playbacks and 10 Execute Playbacks, all equipped with keys Flash, Go and Break or Select according to the section. Thanks to his High resolution color touch screen, Fully dedicated to the electronic playback caption, use remains intuitive, clear and perfectly adaptable to different shows and environments.

With a Integrated USB hubIt can accommodate several Wings to create an evolutionary, powerful and compact system. His connectors also include a Taking for two-tone working lamp and dimmableas well as power source secure via Neutrik Powercon True1. With its laptop, its enlightened faders and its perfect visual consistency with the Magicq Compact range, the Compact Wing is an ideal extension for tour facilities and professional environments such as Theaters, Clubs, Studios, Schools Or theaters.

Features:

• Total playback: 20 (10 FADER Playback + 10 Execute Playbacks)


• High resolution color screen: Yes, for electronic legend


• Touch screen: Yes


• Evolutionary system: Up to 2 Compact Wings by system


• Compatibility: Compact Magicq Consoles, Magicq Full-Size Consoles, PC and MacOS Systems


• Integrated USB hub: 3 ports (1 × USB-C, 2 × USB-A)


• Work lamp: Yes, two-tone and dimmable


• PAGE UP / DOWN button: Yes


• KENSINGTON FIXING: Yes


• Power source : Neutrik Powercon True1, 100-240 Vac


• Universe: 64 dmx world


• DMX Max Channels: 32,768


• Managed projectors: 32 768 max


• Cues: 5000 max


• CUE STACKS: 2,000 max


• Groups: 5000 max


• Pallets: 4 096 Max


• Media Server: 50 layers supported


• USB cable A-C


• Dimmable two-tone working lamp


• Protective cover


• Cablepower source PowerCon True1


• Dimensions: 314 × 350 × 60 mm


• Weight: 4.0 kg




Key Points:

• 20 PHYSICAL PLAYBACKS for extended control


• Color touch screen with electronic legend


• Integrated USB hub allowing a modular system


• Total compatibility With consoles and Magicq systems


• Portable Ideal tour, theater, clubs, events
