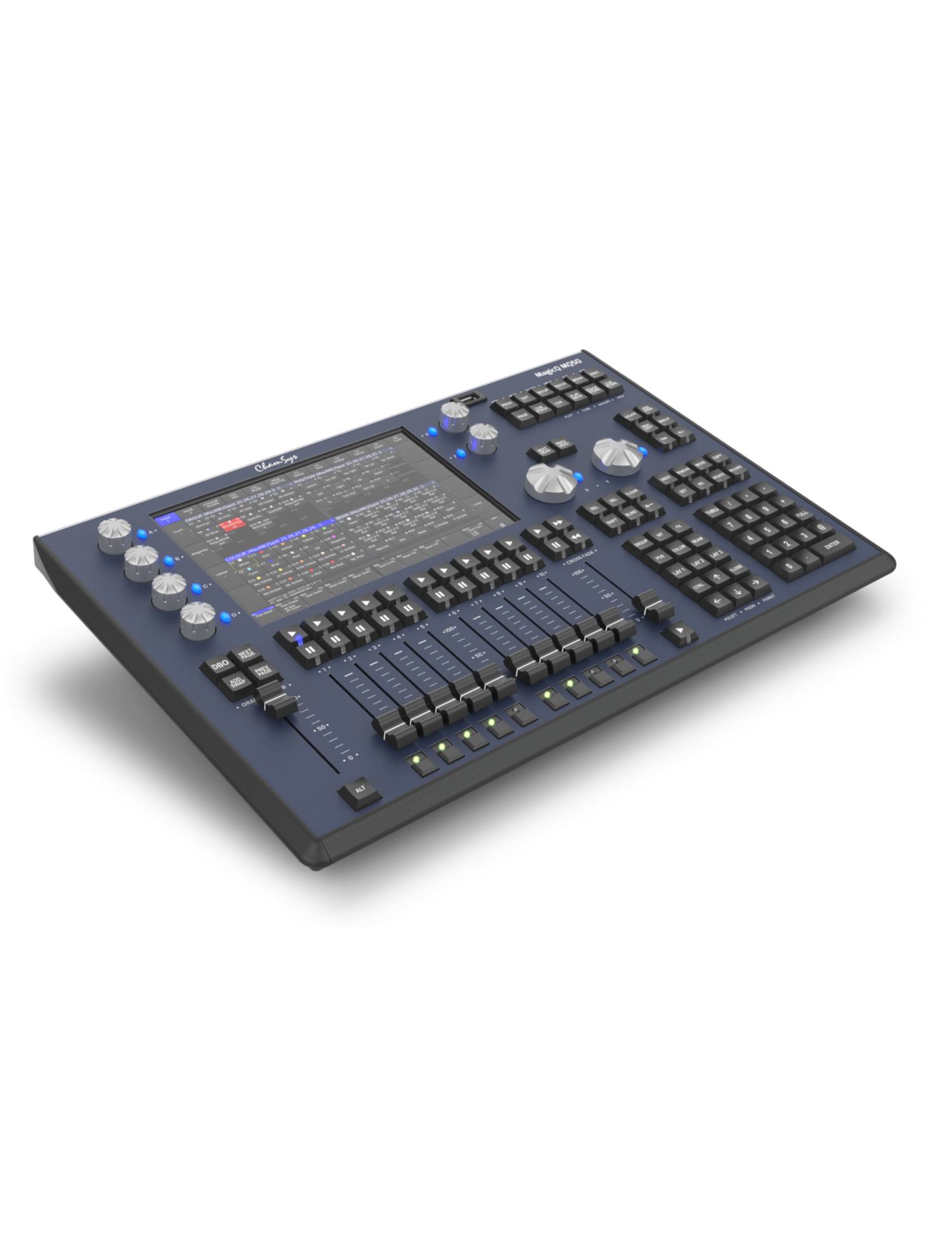

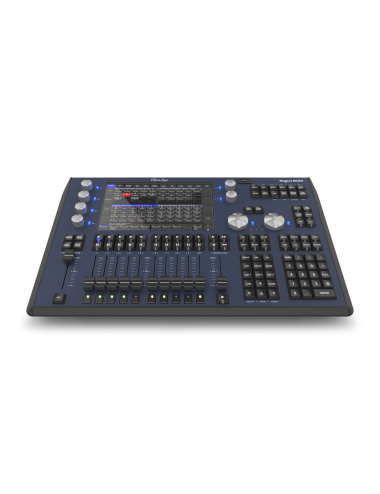

MagicQ MQ50 Compact Console

MagicQ MQ50 – Compact lighting console with touchscreen and built-in WiFi

The MagicQ MQ50 Compact Console is part of the new generation of ChamSys lighting desks, designed for small and mid-sized venues, theatres, clubs and fixed installations. Its large 10.1-inch HD touchscreen, 10 playbacks and compact design make it a powerful, versatile and highly portable solution.

The MQ50 features 4 physical DMX outputs with RDM support, as well as a network port enabling up to 8 ArtNet, sACN or Pathport universes. Thanks to its integrated WiFi, it connects instantly to the MagicQ Remote app with no need for an external router or additional hardware, making remote focusing and mobile control extremely convenient.

Compact yet fully equipped, the MQ50 includes all the essential features of the MagicQ software, including MagicVis and MagicHD compatibility. It offers a professional and silent workflow, ideal for noise-sensitive environments. Fully consistent with the rest of the MagicQ family, it loads the same show files and formats, ensuring seamless continuity across all MagicQ consoles.

Specifications:

• ArtNet/sACN/Pathport universes: 8


• Direct DMX outputs: 4 (RDM supported)


• Built-in WiFi: Yes (direct MagicQ Remote connection)


• Playbacks: 10


• Grand Master: 1


• Crossfade Master: 1


• Attribute encoders: 8


• Touchscreen: 10.1’’ HD


• External monitor: HDMI up to 1920×1200


• USB ports: 5


• Network port: 1


• Audio input: Yes (1 channel, 7 bands)


• Audio output: Yes


• MIDI ports: 1 In / 1 Out (notes only)


• Power: powerCON TRUE1 (110–240 V)


• Max power consumption: 35 W


• Max DMX channels: 4,096


• Fixtures supported: up to 4,096


• Cues: up to 5,000


• Cue Stacks: up to 2,000


• Groups: up to 5,000


• Palettes: up to 4,096


• Media Server: up to 50 layers supported


• Timecode: Not supported


• Included accessories: Dual-color console light, soft cover, powerCON TRUE1 cable


• Box dimensions: 680 × 290 × 500 mm


• Boxed weight: 10 kg


• Console dimensions: 525 × 350 × 60 mm


• Console weight: 7 kg


• Flightcase dimensions: 600 × 202 × 421 mm


• Flightcase weight: 17 kg




Key Points:

• Compact console with 10.1’’ HD touchscreen


• 4 DMX outputs + RDM and 8 network universes


• Built-in WiFi for MagicQ Remote with no external router


• Silent operation, ideal for theatres and noise-sensitive environments


• Fully compatible with the MagicQ ecosystem (shows, formats, workflow)
