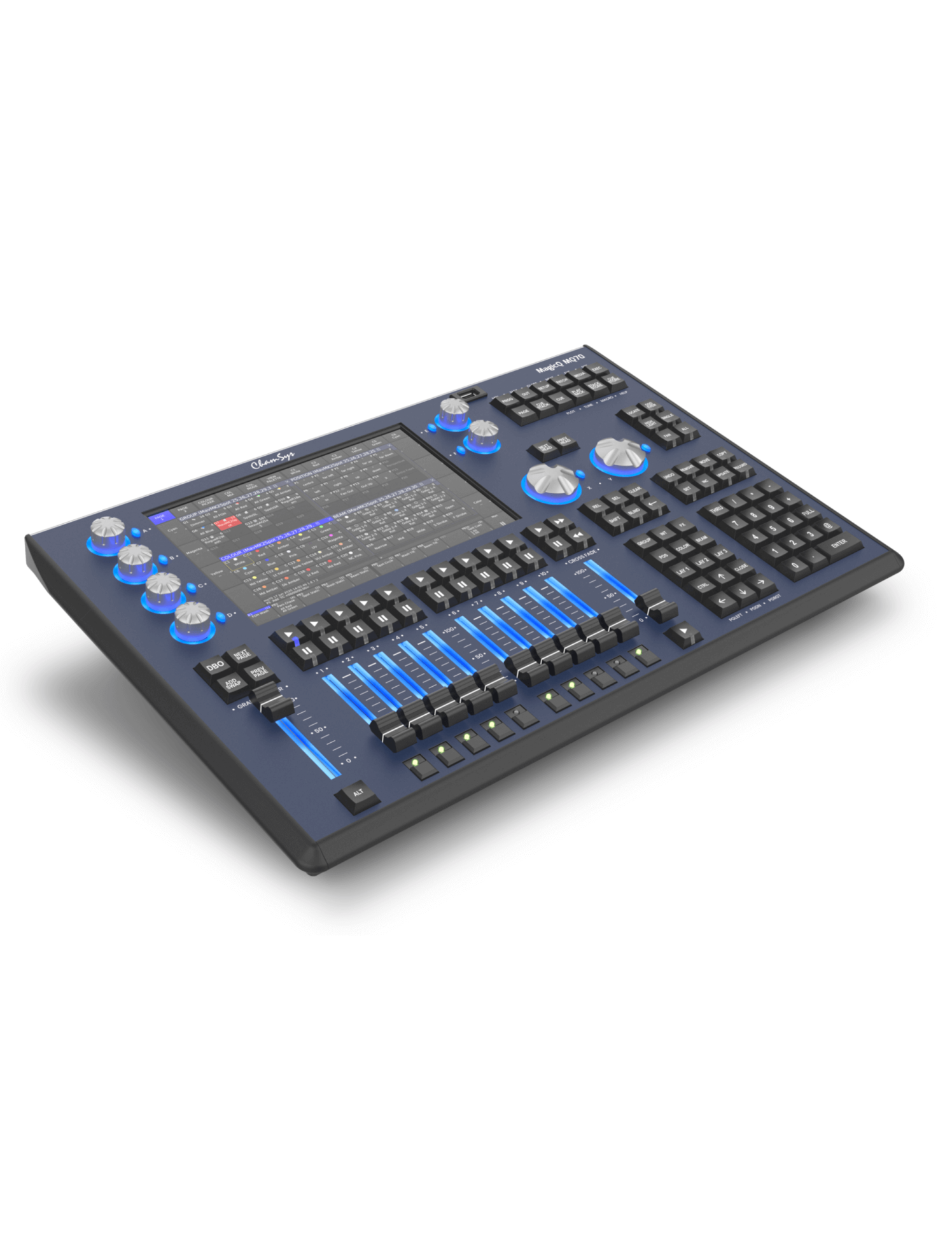

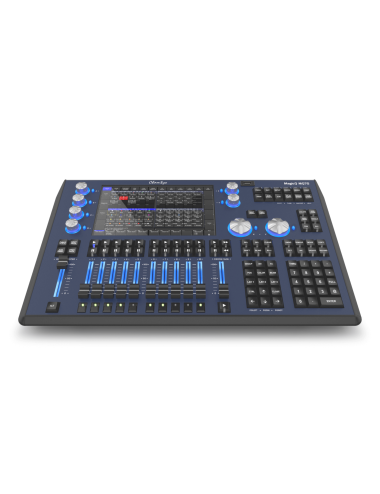

MagicQ MQ70 Compact Console

MagicQ MQ70 – Compact and portable professional lighting console

The MagicQ MQ70 is the latest flagship of the Compact range: a console that is lightweight, powerful and fully transportable as cabin luggage with all major low-cost airlines. It features a high-resolution 10.1" touchscreen, 8 illuminated encoders, backlit faders, and an interface designed for touring technicians, broadcast environments and theatre applications.

The MQ70 provides 24 ArtNet/sACN/Pathport universes directly from the console, expandable up to 48 universes. It also offers 4 physical DMX outputs, all RDM-compatible, along with 3 network ports for advanced connectivity. Built-in WiFi ensures instant access to the MagicQ Remote App without any external network hardware.

Engineered for reliability, the MQ70 includes a built-in UPS that protects the console in case of power loss and ensures stable Ethernet performance. Thanks to its fanless design, it delivers completely silent operation, making it perfect for noise-sensitive environments such as theatre, TV studios, broadcast and corporate events.

The console also features MIDI In/Out, an LTC input, and an audio input for sync purposes, allowing seamless integration into multiprotocol workflows. Like all MagicQ consoles, it runs the same software, meaning shows can be transferred and run across the entire MagicQ range.

Specifications:

• Universes: 24 (expandable to 48)


• Direct DMX outputs: 4 (RDM compatible)


• Network ports: 3 (ArtNet, sACN, Pathport)


• Built-in WiFi: Yes


• Playbacks: 10


• Grand Master: 1


• Crossfade Master: 1


• Attribute encoders: 8 (illuminated encoders)


• Two-color illuminated playbacks: Yes


• HD touchscreen: Integrated 10.1"


• External monitor output: HDMI up to 1920×1200


• USB ports: 5


• Audio input: Yes (1 channel, 7 bands)


• Audio output: Yes


• MIDI ports: 1 input, 1 output


• LTC input: Yes


• Remote input: Yes


• Integrated UPS: Yes (12 V lead-acid battery)


• Power input: powerCON TRUE1, 110–240 V AC


• Power consumption: 35 W max


• Max DMX channels: 12,288 (exp. 24,576)


• Max fixtures: 12,288 (exp. 24,576)


• Max cues: 5,000


• Max cue stacks: 2,000


• Max groups: 5,000


• Max palettes: 4,096


• Media server layers: 50 layers supported


• Console dimensions: 525 × 350 × 60 mm


• Console weight: 7 kg


• Packaging dimensions: 680 × 290 × 500 mm


• Shipping weight: 10 kg


• Flightcase dimensions: 600 × 202 × 421 mm


• Flightcase weight: 17 kg


• Included accessories: Dual-color lamp, protective cover, powerCON TRUE1 cable



Key Points:

• 24 native universes, expandable to 48 for large-scale productions


• Compact and cabin-friendly for all major low-cost airlines


• 10.1" HD touchscreen + illuminated encoders and faders


• Built-in WiFi for direct MagicQ Remote App connectivity


• Silent fanless design ideal for theatre & broadcast environments
