KINETIC

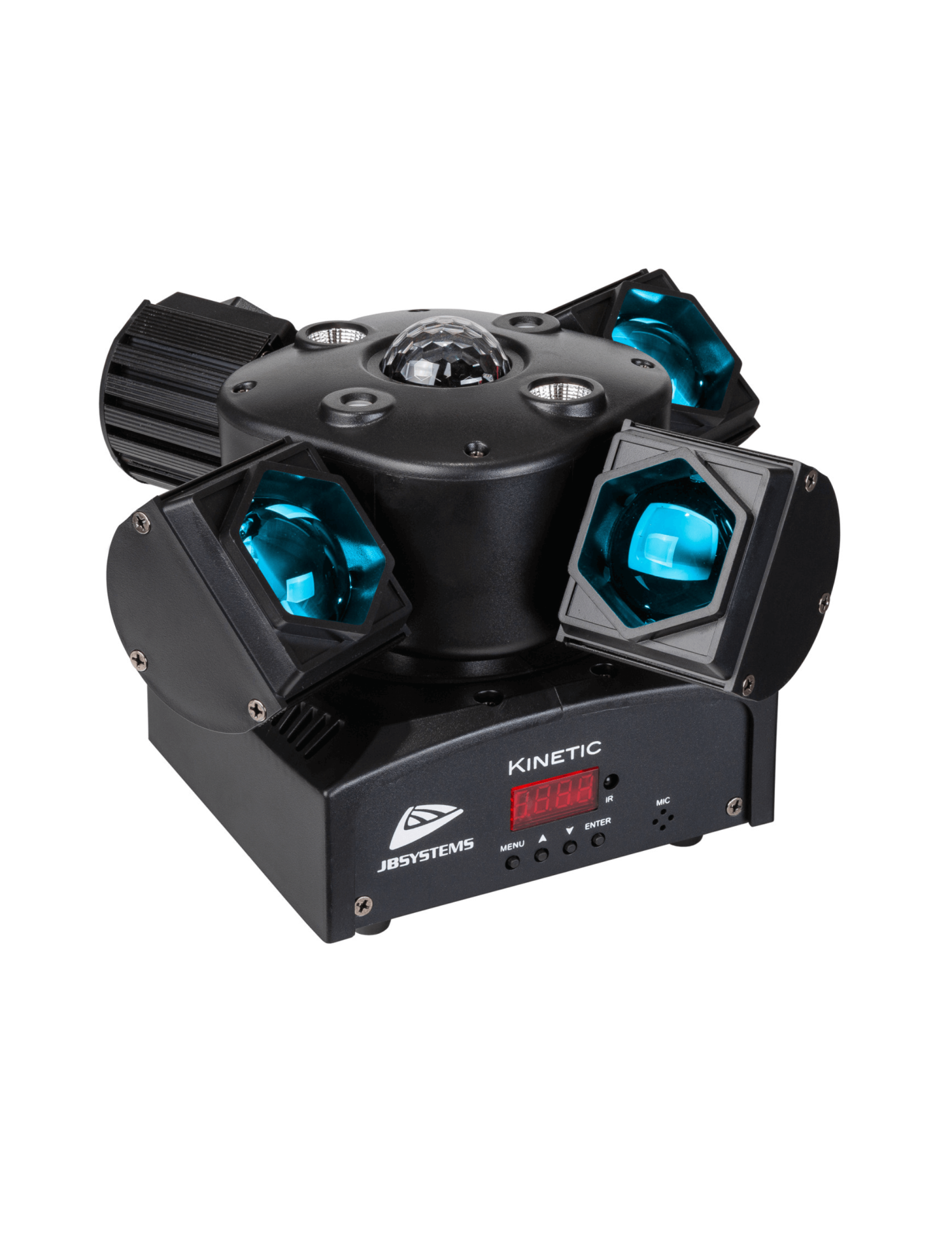

JB Systems KINETIC – Compact multi-source lighting effect for DJs, bars and parties

The JB Systems KINETIC is an ultra-compact and versatile multi-effect light designed to deliver maximum visual impact in minimal space. It combines 4 × 15 W RGBW LEDs mounted on moving arms, 1 × 10 W RGBW LED on the top section, 2 × 5 W yellow strobe LEDs, along with a 100 mW red laser and a 100 mW green laser, producing varied, rich and dynamic lighting effects.

Extremely easy to install and operate, the KINETIC can be controlled via DMX (1, 14 or 21 channels), in standalone mode (automatic or sound-activated via the built-in microphone), or using the included IR remote. Its integrated programs instantly generate impressive and constantly evolving light shows with no complex setup.

The fixture can also operate in master/slave mode to synchronize multiple units, and offers wireless DMX compatibility via an optional Briteq® WTR-DMX dongle. Its 4-digit LED display ensures quick and intuitive navigation through the menus, while its U-shaped bracket allows easy installation on trusses, structures or ceilings. Lightweight, compact and very bright, the KINETIC is an ideal choice for mobile DJs, bars, pubs, private events and small venues.

Features:

• Type: Compact multi-effect lighting fixture with RGBW LEDs, strobe LEDs and built-in lasers


• LED sources: 4 × 15 W RGBW (arms), 1 × 10 W RGBW (top), 2 × 5 W yellow strobe LEDs


• Lasers: 1 × red 100 mW, 1 × green 100 mW


• Control modes: DMX (1, 14 or 21 channels), standalone (auto / sound), master/slave, IR remote


• Wireless DMX compatibility: optional Briteq® WTR-DMX dongle via USB


• Interface: 4-digit LED display


• DMX connections: 3-pin XLR IN/OUT


• Power supply: AC 100–240 V (50/60 Hz), 80 W consumption, IEC connector


• Mounting: U-shaped bracket for trusses and ceilings


• Protection rating: IP20 – indoor use


• Dimensions: 22 × 22 × 17 cm


• Weight: 2.35 kg


• Color: black



Key Points:

• Full multi-source effect: RGBW LEDs, strobe LEDs and red/green lasers for a wide variety of effects.


• Ultra-compact: lightweight and easy to install, perfect for mobile DJs and small venues.


• Flexible control: up to 21 DMX channels, standalone, master/slave or IR remote.


• Built-in programs: dynamic shows with no advanced configuration.


• Wireless DMX: compatible with the Briteq® WTR-DMX dongle for simplified setup.
