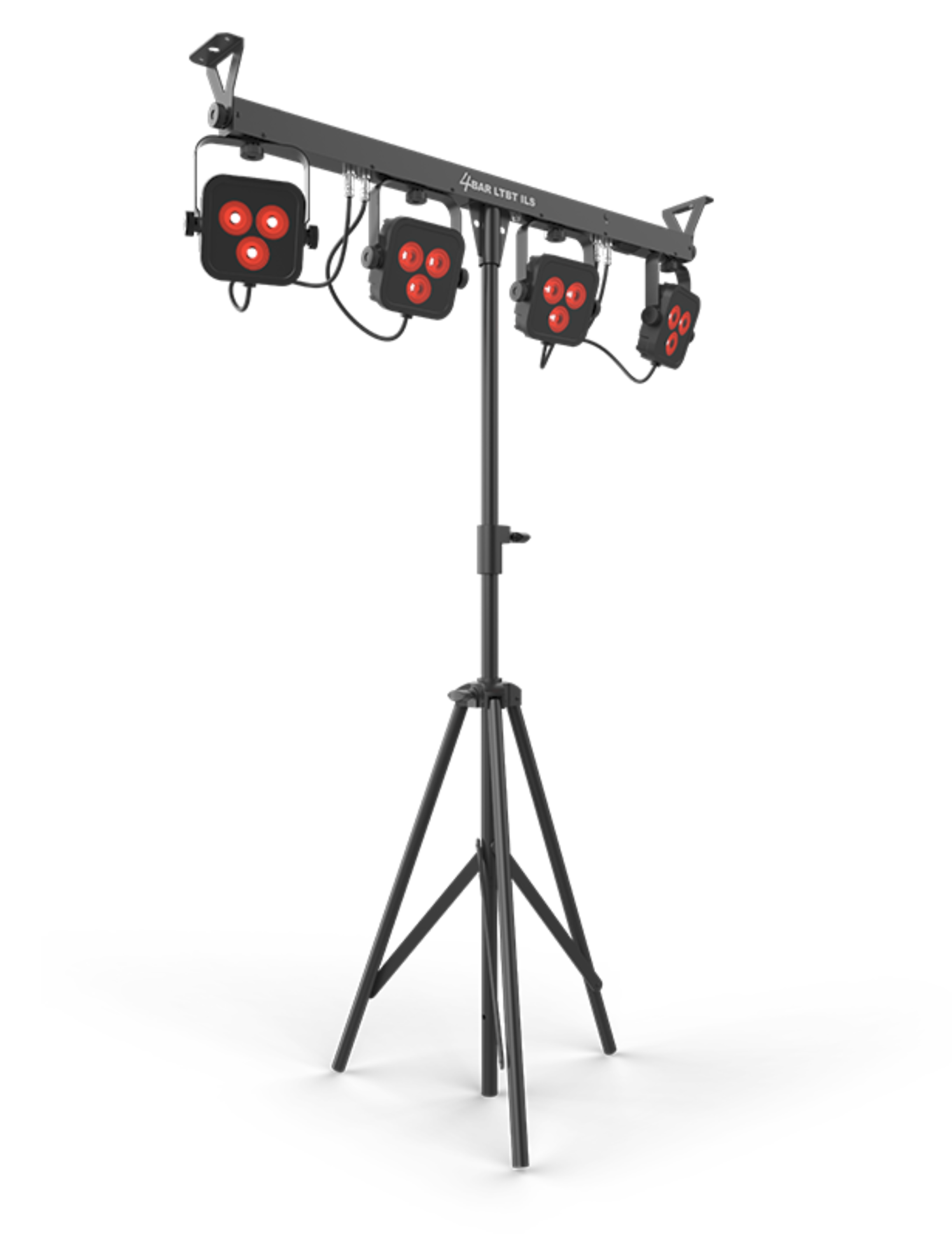

Chauvet DJ 4BAR LTBT ILS – Wash lighting bar with Bluetooth®, ILS, and wireless control
The 4BAR LTBT ILS is a complete and versatile wash lighting system designed to deliver full coverage for your events. With its four individually adjustable RGB LED fixtures mounted on a single bar, it provides even illumination for an entire room or stage. Easy to set up, take down, and transport, it comes with a sturdy tripod, a wireless footswitch, and a carrying bag, making it the perfect solution for quick and efficient setups.
Equipped with ILS (Integrated Lighting System) technology, the 4BAR LTBT ILS integrates seamlessly into synchronized light shows with other compatible fixtures. Its built-in Bluetooth® connectivity allows direct control from a smartphone or tablet via the free BTAir app, with no extra hardware required. In addition, D-Fi USB compatibility (sold separately) ensures easy wireless DMX or master/slave operation.
Versatile and intuitive, this system features automated programs and sound-activated modes that react to music for instant effects. Control is possible with the included footswitch, or you can expand functionality with the optional IRC-6 remote. With its advanced features and user-friendly design, the 4BAR LTBT ILS stands out as a turnkey solution for DJs, musicians, entertainers, and event professionals.
Technical specifications:
- Type: 4-head wash lighting system with RGB LEDs
- ILS compatibility for coordinated light shows
- Built-in Bluetooth® technology for direct control via BTAir app
- D-Fi USB compatibility (sold separately) for wireless DMX or master/slave control
- DMX channels: 3, 5, or 15
- DMX connectors: 3-pin XLR
- Light source: 12 RGB LEDs, 3 W each, approx. 50,000-hour lifespan
- Strobe rate: 0 to 22 Hz
- Beam angle: 12°
- Field angle: 21°
- Illuminance: 2,382 lux @ 2 m (per fixture)
- Input voltage: 100 to 240 V AC, 50/60 Hz (auto-ranging)
- Power consumption: 47 W, 0.7 A @ 120 V / 45 W, 0.4 A @ 230 V
- Dimensions: 918 x 95 x 274 mm
- Weight: 3.5 kg
- Tripod height: 127 to 211 cm
- Certifications: CE, RoHS, UKCA, FCC
- Operating frequency: Bluetooth 2.4 GHz / footswitch 433 MHz
- Maximum range: 45.7 m (150 ft)
- Included accessories: power cable, carrying bag, tripod, wireless footswitch, mounting bracket, quick reference guide
Key features:
- Complete solution with 4 high-intensity RGB LED wash heads
- Built-in Bluetooth® for direct control from smartphone or tablet
- ILS compatibility for synchronized light shows with other fixtures
- D-Fi USB compatibility for wireless DMX or master/slave operation
- Quick setup with included tripod, bag, and footswitch
- Full coverage with four individually adjustable fixtures
- Wireless control via included footswitch or optional IRC-6 remote
- Automated and sound-activated programs for instant lighting effects
