In stock
JB SYSTEMS

QUADRA MOVE

Reference: B06234
€489.00 Tax included
10x 12x

Click to learn more

Taking out a loan is a commitment with an obligation of repayment. Verify your ability to repay the loan before committing.

Buy now and pay as you go
1 At checkout step, select Younited Pay 2 Choose the repayment duration 3 Simply and securely connect your bank account 4 Receive a response within seconds

Start paying in just 30 days !
10x 12x
Payment in   12  times

Your purchase for   44.72 €   / months

Total amount due 536.61 €

   Total credit amount

489 €

   Interest (excl. optional insurance)

47.61 €

Fixed APR
(excluding optional insurance) 18.99 %
Fixed lending rate 17.51 %

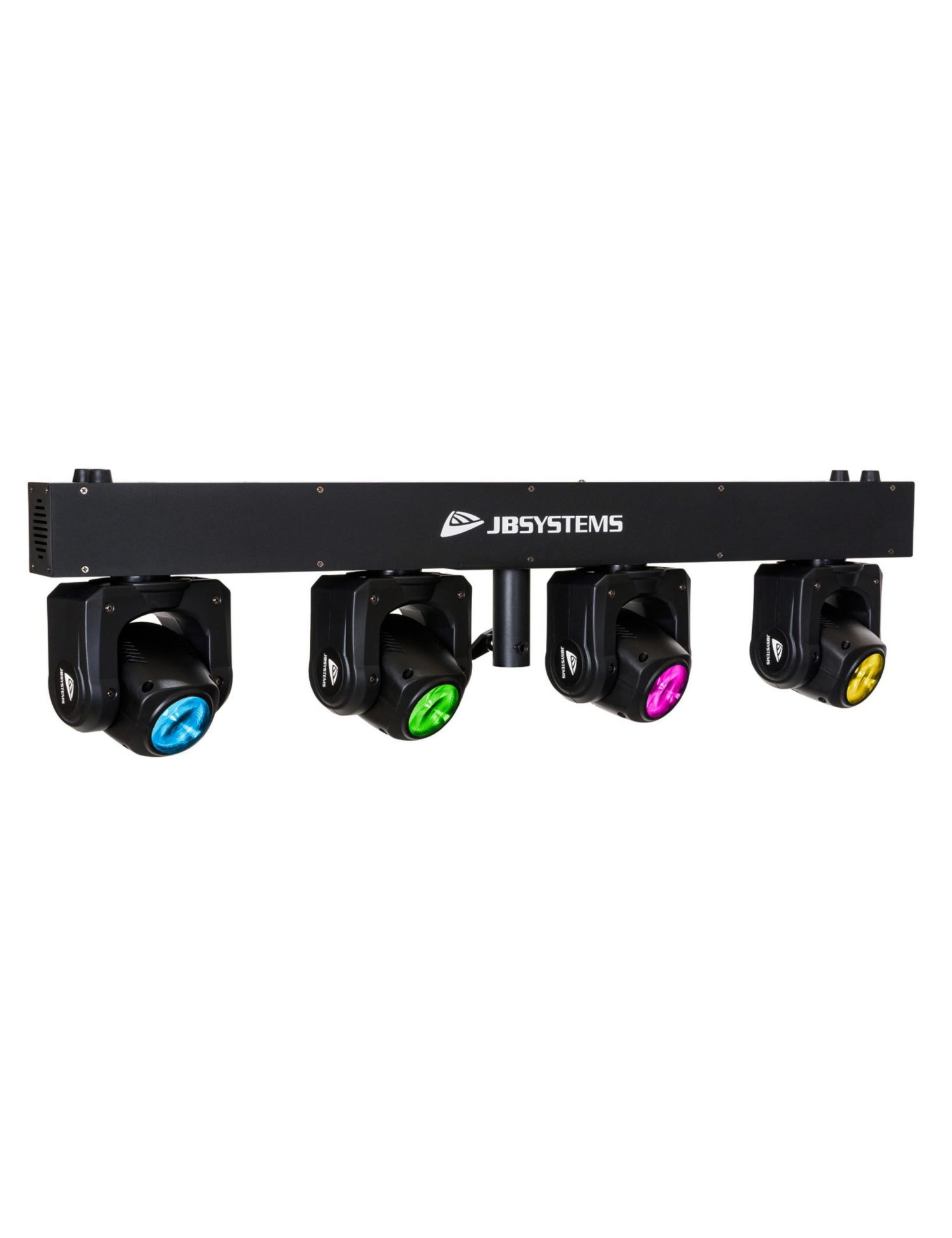

JB Systems Quadra Move – Light bar with 4 × 40 W RGBW LED moving heads, DMX 1/5/24/56 channels, auto/sound/master–slave modes, wireless DMX ready, LCD display, XLR + PowerCON I/O.

Quantity
  In stock
Expédié en 24 à 48H

Add to favorites Add to compare
reassuarence-customicon

Manufacturer's warranty: 2 years

reassuarence-customicon

Free delivery from €99

reassuarence-customicon

Easy payment: satisfied or refunded

reassuarence-customicon

Need help ?

JB Systems Quadra Move - Light bar with 4 LED RGBW LED for dynamic shows

The JB Systems Quadra Move is an all-in-one lighting solution designed for DJ Mobile, Event Providers, Multipurpose Rooms and Rental Companies looking for a compact, powerful and fast system to install. This bright bar incorporates 4 LED LED RGBW 40 W Each, offering fluid movements, powerful colors and scenic panoramic coverage.

Thanks to his Extremely neat internal programsThe Quadra Move generates scalable and varied automatic shows, perfect for benefits where efficiency and visual impact are essential. His internal microphone allows completely autonomous operation in mode Sound activationwhile the mode master / slave Ensures perfect synchronization between several units.

For advanced users, the Quadra Move is fully controllable via DMX with 1, 5, 24 or 56 channels, allowing precise and deepened control of colors, movements and programs. He is also prepared for wireless DMX : just add a compatible dongle (WTR-DMX dongle) to benefit from a non-cable installation.

His LCD screen facilitates navigation, while the bar offers fast assembly thanks to its Foot adapter 35 mm or Omega (optional) supports. Connections XLR DMX and Powercon ensure professional and reliable wiring.


Technical characteristics:

  • Lighting system :
    • Light bar with 4 LED LEDs
    • LED RGBW High Power: 4 × 40 W
    • RGBW colors (no internal mixing)
    • Dynamic effects with fast and precise movements

  • Modes of operation :
    • Standalone automatic mode
    • Audio mode via internal microphone
    • DMX mode: 1, 5, 24 or 56 channels
    • Master / slave mode
    • Wireless DMX compatible (optional dongle)

  • Control :
    • LCD screen for simple settings
    • Firmware update possible
    • Not programmable (no creating internal scenes)
    • Protocols: DMX + Wireless DMX

  • Power source :
    • AC 100-240 V, 50/60 Hz
    • Consumption: 200 W
    • Powercon or Compatible Connectivity (IN / OUT)

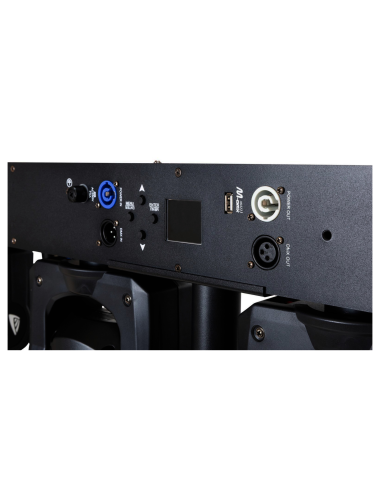

  • Connections :
    • DMX IN / OUT: XLR 3 Pin
    • Wireless DMX input (via optional dongle)
    • Powercon in / out

  • Construction :
    • Color: black
    • Indoor use (IP20)
    • Dimensions: 100 × 26 × 9 cm
    • Weight: 11 kg
    • FIXING: 35 mm adapter + OPEGA OMEGA supports


Key Points:

  • 4 Lyres LED RGBW 40 W For impressive light power

  • Scalable automatic shows Perfect for Mobile DJ benefits

  • Flexible DMX : 1, 5, 24 or 56 channels

  • Wireless DMX compatibility Optional dongle

  • Master / slave : Perfect synchronization between several units

  • LCD screen For fast and intuitive settings

  • Easy assembly : Foot 35 mm + Omega Omega Supports

  • Professional connectivity : XLR + PowerCon



Manufacturer

Data sheet

DMX channels
1, 5, 24 or 56 channels
Log in
E/S DMX, E/S PowerCON, WTR-DMX USB
Controllable in DMX
Yes
Category
Motorized light bar
Input connectors
XLR DMX 3 pins
Output connectors
XLR DMX 3 pins
Height
Depends on the stand used (35 mm compatible base)
Dimensions
1000 × 260 × 90 cm
Power of the light source
4 x 40 W
Weight (kg)
11 kg
Light source
LED
Colors
RGB+W (3 colors + white)
Stroboscope effect
N/A
Application
DJ, animation and parties
Power source
E/S PowerCON, AC 100–240 V
Battery operation
Not
Protection index
IP20 (indoor use)
