Chauvet DJ GigBAR Bridge ILS – 2-in-1 Lighting System with Moving Heads, Washes, and ILS Compatibility

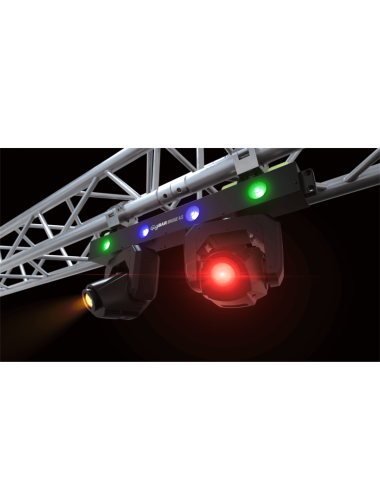

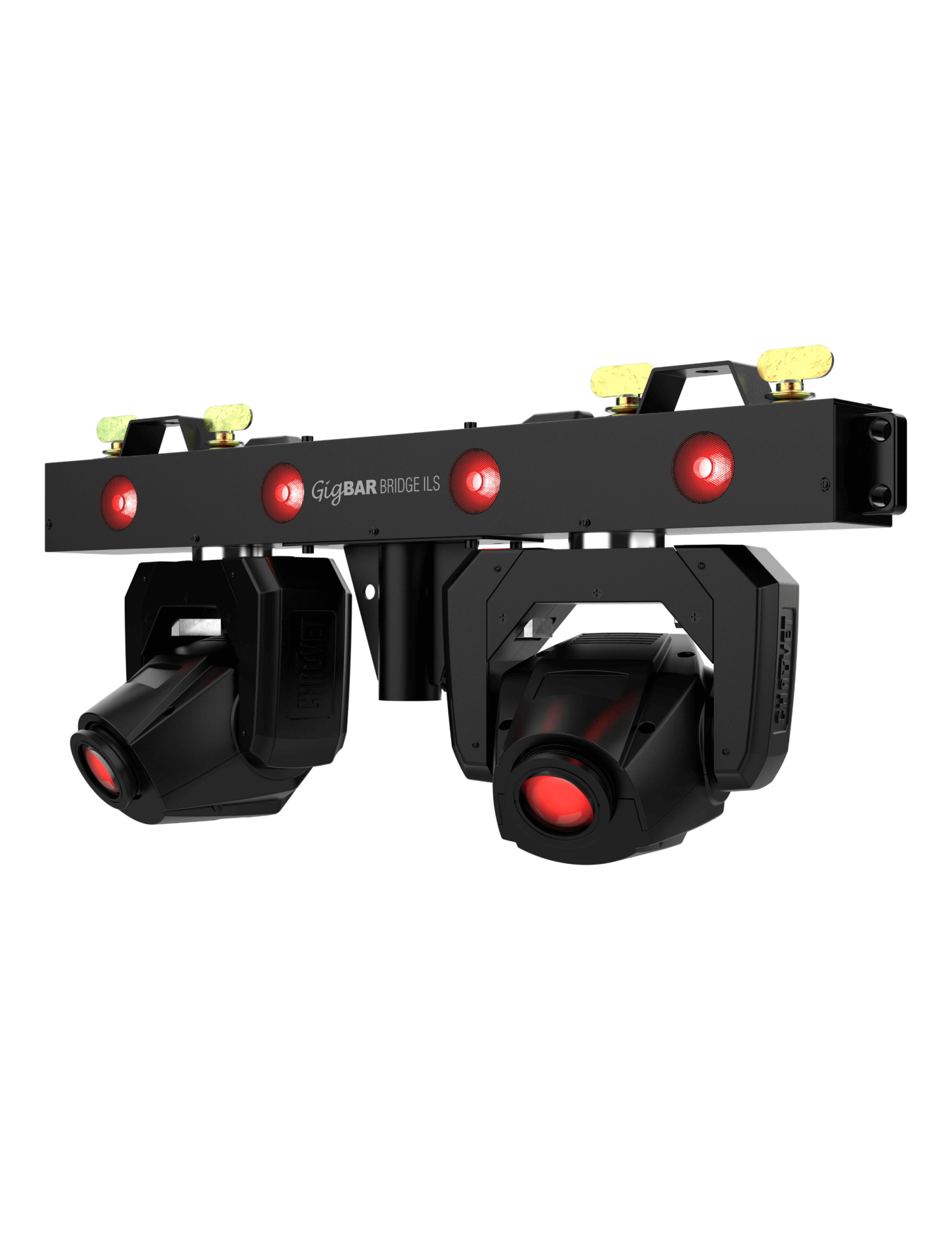

The GigBAR Bridge ILS is a 2-in-1 lighting system that combines powerful moving heads and wash lights pre-mounted on a single bar. This all-in-one concept ensures fast and intuitive setup, making it ideal for DJs, rental companies, and event organizers looking for a complete and high-performance solution in one unit. Thanks to its optimized design, the GigBAR Bridge ILS instantly transforms any dance floor with dynamic and versatile effects.
Compatible with the ILS (Integrated Lighting System) ecosystem, this model allows you to synchronize multiple lighting fixtures for seamless and coordinated light shows. Its built-in D-Fi transceiver enables wireless control via DMX or ILS, greatly reducing cabling and simplifying setup. The color LCD screen makes navigation easy and provides direct access to all functions, while the included RF remote allows you to trigger built-in programs without line of sight.

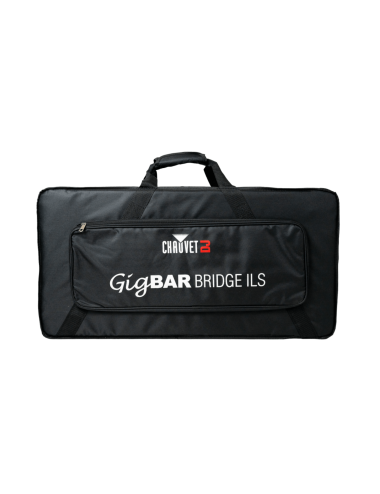

Designed for versatility and creativity, the GigBAR Bridge ILS features independent color and gobo wheels on its moving heads, offering maximum programming options. The Totem Mode ensures beams always remain focused on the dance floor, even while moving, keeping the atmosphere lively and engaging. Durable, reliable, and delivered with essential accessories, this system is easy to transport with its included bag, making it the perfect choice for professional performances.
Technical Specifications:
- Type: 2-in-1 lighting system with pre-mounted moving heads and washes
- ILS compatibility for coordinated light shows
- Built-in D-Fi transceiver for wireless DMX or ILS
- Optional controllers: RF, footswitch, ILS Command
- DMX channels: 3, 16, or 46
- DMX connectors: 3-pin XLR
- Max wireless range: 183 m (600 ft) via D-Fi
- Pan/Tilt: 270°/540°
- Moving heads: 40 W cool white LED, 9-color wheel + open, 9-gobo wheel + open, 16° beam, 6,594 lux @ 2 m
- Washes: 4 x 10 W RGBAW+UV hex-color LEDs, 22° beam, 38° field, 375 lux @ 2 m
- LED lifespan: approx. 50,000 h
- Strobe frequency: 0–20 Hz
- Power linking: 8 units @ 120 V / 13 units @ 230 V
- Input voltage: 100–240 V AC, 50/60 Hz (auto-range)
- Power consumption: 191 W, 1.5 A @ 120 V / 175 W, 1 A @ 230 V
- Dimensions: 660 x 71 x 305 mm
- Weight: 8.4 kg
- Certifications: CE, RoHS, FCC
- Included accessories: power cable, 2 mounting brackets, carry bag, quick reference guide, RF remote
Key Points:
- Complete 2-in-1 system with pre-mounted moving heads and washes for quick setup
- ILS compatibility for synchronized light shows with other fixtures
- Built-in wireless control with D-Fi transceiver
- Totem Mode: moving heads always pointed toward the dance floor
- User-friendly with color LCD screen and included RF remote
- Easy transport with included bag and secure mounting on trusses or tripods
