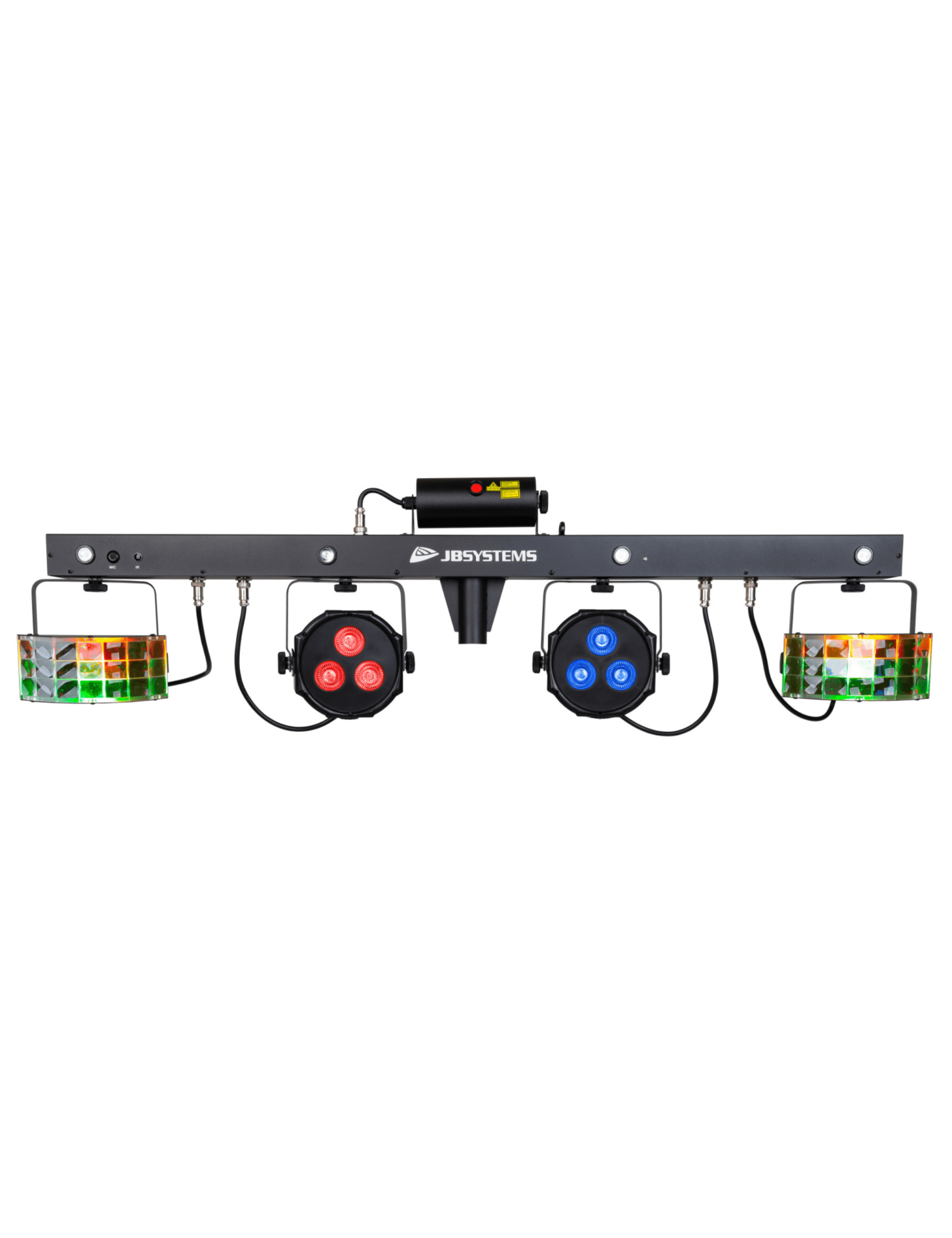

JB Systems PARTY BAR – Complete 4-in-1 lighting system for mobile DJs
The PARTY BAR is a 4-in-1 lighting system designed to deliver a full light show from a single, extremely compact bar. Ideal for mobile DJs, private parties, small stages, bars, and live events, it combines multiple professional-grade effects to create a spectacular atmosphere without requiring additional fixtures.
The PARTY BAR integrates four different lighting effects:
- 2 rotating Derby effects, each equipped with a 3 W RGB LED to create dynamic multicolored beams;
- 2 LED spotlights featuring 3 × 9 W RGB LEDs each, delivering powerful 15° beams;
- 4 cool white LEDs for strobe and blinder effects;
- A dual-color Class 3R laser (100 mW red / 30 mW green) projecting hundreds of sharp beams for an impressive visual atmosphere.
Thanks to its preprogrammed light shows, the PARTY BAR offers a wide variety of effect combinations, controlled through multiple methods:
- DMX: 3, 5, 6, 9, or 27 channels;
- Standalone mode: sound-activated via internal microphone or automatic programs;
- IR remote control: included;
- Master/Slave mode: synchronize several units for coordinated light shows.
The bar is also wireless-DMX ready: simply connect a WTR-DMX dongle. A 3-digit LED display ensures easy menu navigation.

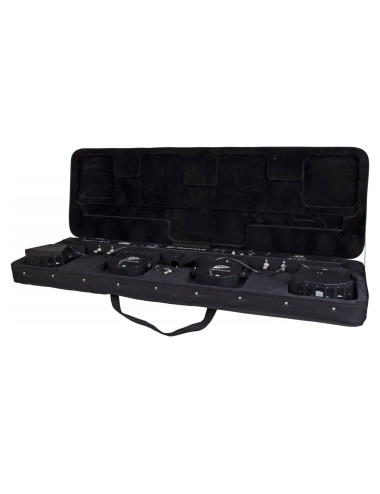

Delivered with its carrying bag, the PARTY BAR is ready for the road. Its low weight and very low power consumption of only 48 W make it a reliable and versatile solution for mobile entertainers.
Technical specifications:
- Type: Compact 4-in-1 lighting system
- Lighting effects:
- 2 rotating Derby effects (3 W RGB LED)
- 2 LED spotlights (3 × 9 W RGB each, 15° beam)
- 4 cool white LEDs for strobe / blinder effects
- Dual-color Class 3R laser (100 mW red / 30 mW green)
- Operating modes:
- DMX: 3 / 5 / 6 / 9 / 27 channels
- Standalone: sound or automatic
- IR remote control included
- Master / Slave
- Wireless DMX compatible (optional dongle)
- User interface:
- 3-digit LED display
- Easy navigation
- Laser:
- Class 3R
- Compliant with EN/IEC 60825-1 2007
- Key switch + emergency stop
- Optics:
- Beam angle: 15° (RGB spotlights)
- Colors: Red, Green, Blue, Cool white, RGB
- Connections:
- Inputs: IEC, 3-pin XLR, optional wireless DMX
- Outputs: IEC, 3-pin XLR
- Power:
- AC 100–240 V, 50/60 Hz
- Power consumption: 48 W
- Construction:
- Color: Black
- Mounting: 35 mm stand adapter or included brackets
- Indoor use (IP20)
- Carrying bag included
- Dimensions: 118.5 × 38.6 × 11 cm
- Weight: 8.35 kg
Key Features:
- Complete 4-in-1 system: Derby, RGB LEDs, strobe, Class 3R laser
- Ultra-dynamic preprogrammed shows
- 27-channel DMX + master/slave + IR control
- Dual-color Class 3R laser with enhanced safety features
- Carrying bag included for easy transport
- Very low power consumption: only 48 W
- Easy mounting on any 35 mm stand
- Wireless DMX compatible
