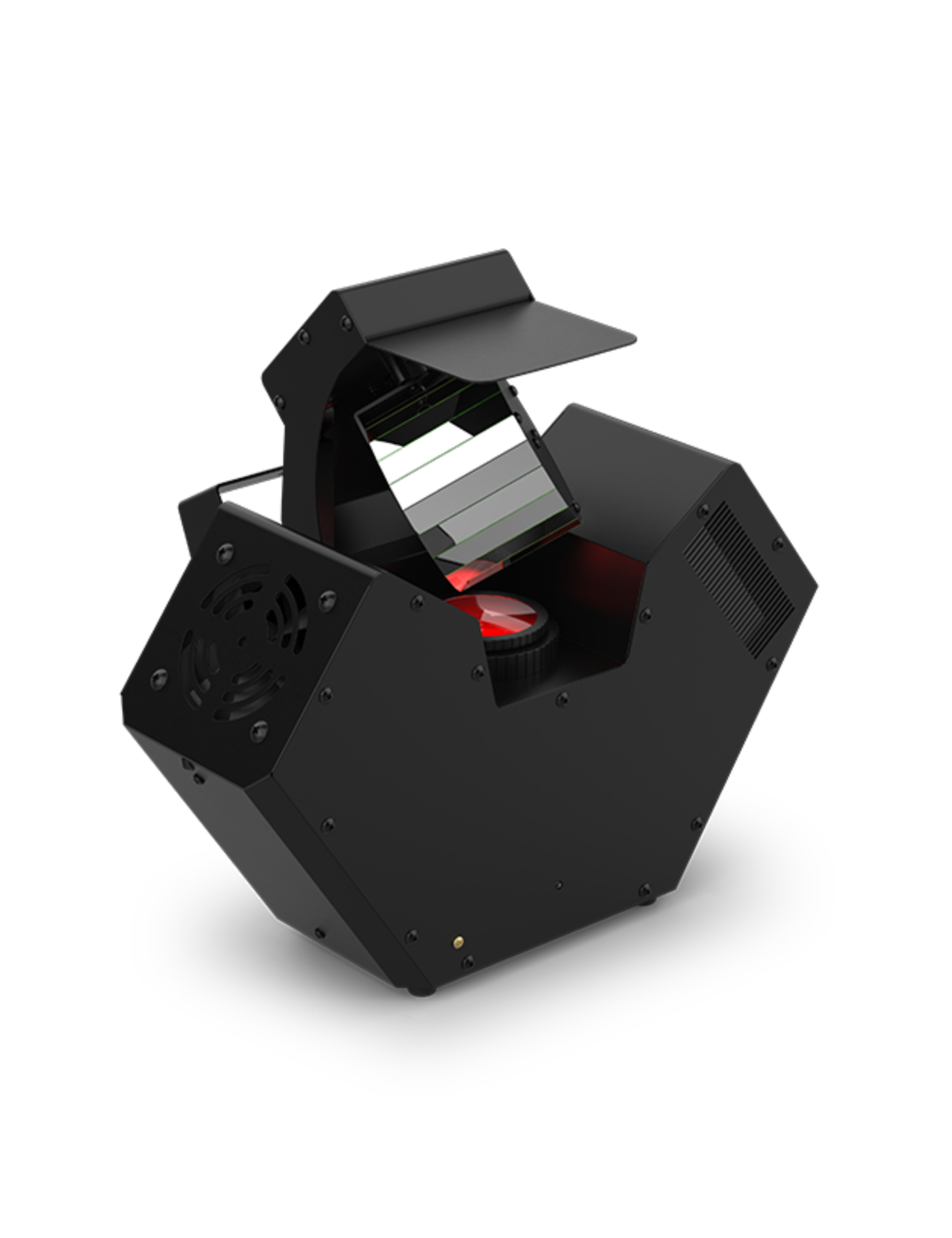

Chauvet DJ Blazor – 115 W LED Rotating Barrel Effect with Interchangeable Gobos
The Blazor is a rotating barrel lighting effect designed to instantly fill any dance floor with spectacular projections. Equipped with an ultra-powerful 115 W white LED, it stands out as one of the most efficient barrel effect fixtures in its class. Thanks to its interchangeable rotating gobos and its wide 176° coverage angle, it delivers dynamic and customizable patterns without the need for fog or haze. With the Blazor, every event benefits from an impactful and immersive visual experience.
Engineered for maximum flexibility, the Blazor features independent color and gobo wheels, allowing multiple creative combinations. Users can opt for Master/Slave mode to synchronize up to two fixtures, with the choice between a coordinated show or a master copy. Thanks to its compatibility with the optional IRC-6 remote, parameter control is simple and fast, while its robust design ensures reliable performance in live setups.
Easy to install and transport, the Blazor comes with a festive gobo pack, a power cable, a mounting bracket, and a compatible carry bag (CHS-40 VIP Gear Bag, sold separately). With its power, versatility, and ease of use, it is an essential asset for DJs, clubs, and event organizers who want to create a striking visual atmosphere.
Technical Specifications:
- Type: 115 W LED rotating barrel effect
- Light source: 1 white LED 115 W (approx. 50,000 h lifetime)
- Colors: 6 + open, split colors, continuous scroll at variable speeds
- Gobos: 7 rotating metal gobos, interchangeable, indexable, slot-n-lock, continuous scroll at variable speeds
- Gobo size: outer 18.55 mm / image 10 mm / max thickness 0.27 mm
- Coverage angle: 176°
- Pan/Tilt: 163° / 360° (continuous)
- DMX channels: 4 or 11

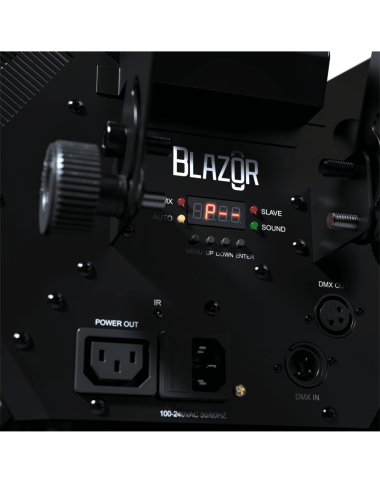

- DMX connectors: 3-pin XLR
- Strobe rate: 0 to 20 Hz
- Power and consumption: 166 W, 2.4 A @ 120 V / 160 W, 1.5 A @ 230 V
- Input voltage: 100 to 240 V AC, 50/60 Hz (auto-ranging)
- Power linking: 3 units @ 120 V / 5 units @ 230 V
- Dimensions: 340 x 230 x 310 mm
- Weight: 4.08 kg
- Cable length: 1.6 m (5.25 ft)
- Certifications: CE, RoHS
- Optional controllers: IRC-6
- Included accessories: IEC power cable, mounting bracket, festive gobo pack, quick reference guide
Key Points:
- Powerful barrel effect with 115 W LED and wide coverage
- Interchangeable gobos to customize your projections
- Flexible control with DMX, Master/Slave mode, and IRC-6 compatibility
- 10 festive gobos included for diverse and impactful shows
- Simple installation with supplied mounting bracket and power linking
- Easy transport with optional CHS-40 VIP Gear Bag
