JB Systems Rotobogo Outdoor – Professional IP65 gobo projector, 100 W cool-white LED, rotating gobo, 4-layer lens, 20° beam, indoor/outdoor use.

Quantity
  In stock
Shipped within 1 - 3 days

Add to favorites Add to compare
reassuarence-customicon

Manufacturer's warranty: 2 years

reassuarence-customicon

Free delivery from €99

reassuarence-customicon

Easy payment: satisfied or refunded

reassuarence-customicon

Need help ?

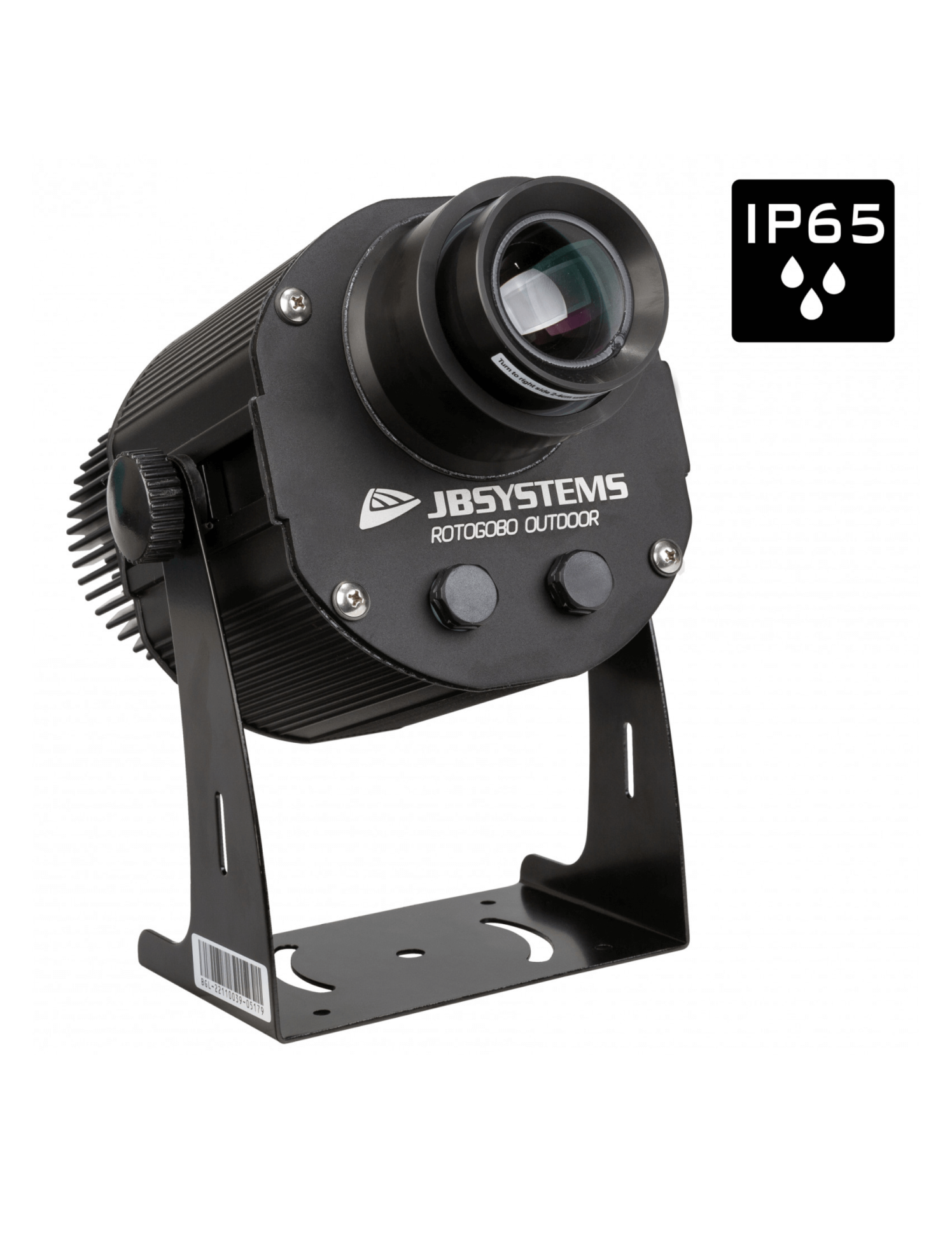

JB Systems Rotobogo Outdoor – High-power outdoor IP65 gobo projector

The Rotobogo Outdoor from JB Systems is a professional outdoor gobo projector designed to deliver extremely sharp and high-visibility logo projections over long distances. Equipped with a 100 W cool-white LED and a professional 4-layer optical lens, it provides impressive brightness and outstanding accuracy — ideal for shops, events, façades, signage, and permanent installations.

Thanks to its IP65 protection rating, it is perfectly suitable for both indoor and outdoor use, even in harsh weather conditions. Its standard 20° beam ensures efficient projection from 1 to 20 metres, maintaining crisp edges with precise manual focus adjustment.

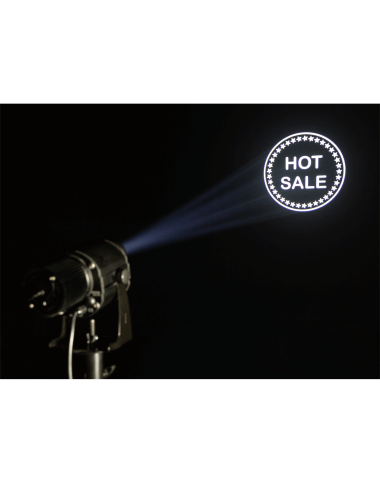

The Rotobogo Outdoor is compatible with standard metal or glass gobos (Ø 37.5 mm, image Ø 24.5 mm). A “HOT SALE” glass gobo is included in the box. Gobo rotation can be enabled or disabled using the dedicated waterproof switch.

For maximum safety, the projector operates on low-voltage 12 V DC and includes an external 150 W IP65 Mean Well power supply. Installation is simplified thanks to the included anchoring bolt, suitable for brick and concrete surfaces.


Features & Specifications:

  • Type: Outdoor LED gobo projector (IP65)

  • Light Source:
    • 100 W cool-white LED
    • Color temperature: 8000–8500 K
    • CRI: 85

  • Optics:
    • 20° beam (20.4° actual)
    • Professional 4-layer lens
    • Precise manual focus

  • Performance:
    • Lux: 1650 @ 5 m (20°)
    • Projection distance: 1 to 20 m

  • Gobos:
    • Compatible with metal/glass gobos Ø 37.5 mm (image Ø 24.5 mm)
    • 1 rotating gobo
    • 1 fixed gobo
    • “HOT SALE” glass gobo included
    • Waterproof ON/OFF switch for rotation

  • Operating Modes:
    • Standalone fixed
    • Standalone automatic
    • Manual mode

  • Power:
    • Power consumption: 105 W
    • External 150 W Mean Well IP65 PSU included
    • Input: AC 100–240 V, 50/60 Hz
    • Low-voltage 12 V DC for enhanced safety

  • Construction:
    • IP65 protection (outdoor)
    • M10 mounting
    • Rugged housing
    • Anchoring bolt included for brick/concrete surfaces

  • Dimensions: 24 × 16 × 20 cm

  • Weight: 3 kg

  • Connectivity: Schuko CEE 7/7 mains input


Key Points:

  • Outdoor IP65 gobo projector ideal for storefronts, façades, signage, events

  • Ultra-bright 100 W cool-white LED with razor-sharp projection

  • High-quality 4-layer lens for outstanding image clarity

  • Rotating gobo function with waterproof on/off switch

  • Compatible with metal and glass gobos (Ø 37.5 mm)

  • Effective projection up to 20 m

  • Safe low-voltage 12 V operation + IP65 power supply included

  • Rugged installation hardware with included anchoring bolt

Manufacturer

Data sheet

Controllable in DMX
No
Category
IP65 outdoor LED logo projector
Brightness
Lux : 1650 @ 5 m
Dimensions
24 × 16 × 20 cm
Power of the light source
LED cold white 100 W
Weight (kg)
3 kg
Light source
LED
Tension
AC 100–240 V
Beam angle
20°
Stroboscope effect
No
Finishing
Black
Power source
External 150 W Mean Well IP65
Battery operation
Not
Protection index
IP65
