Chauvet DJ CoDot ILS

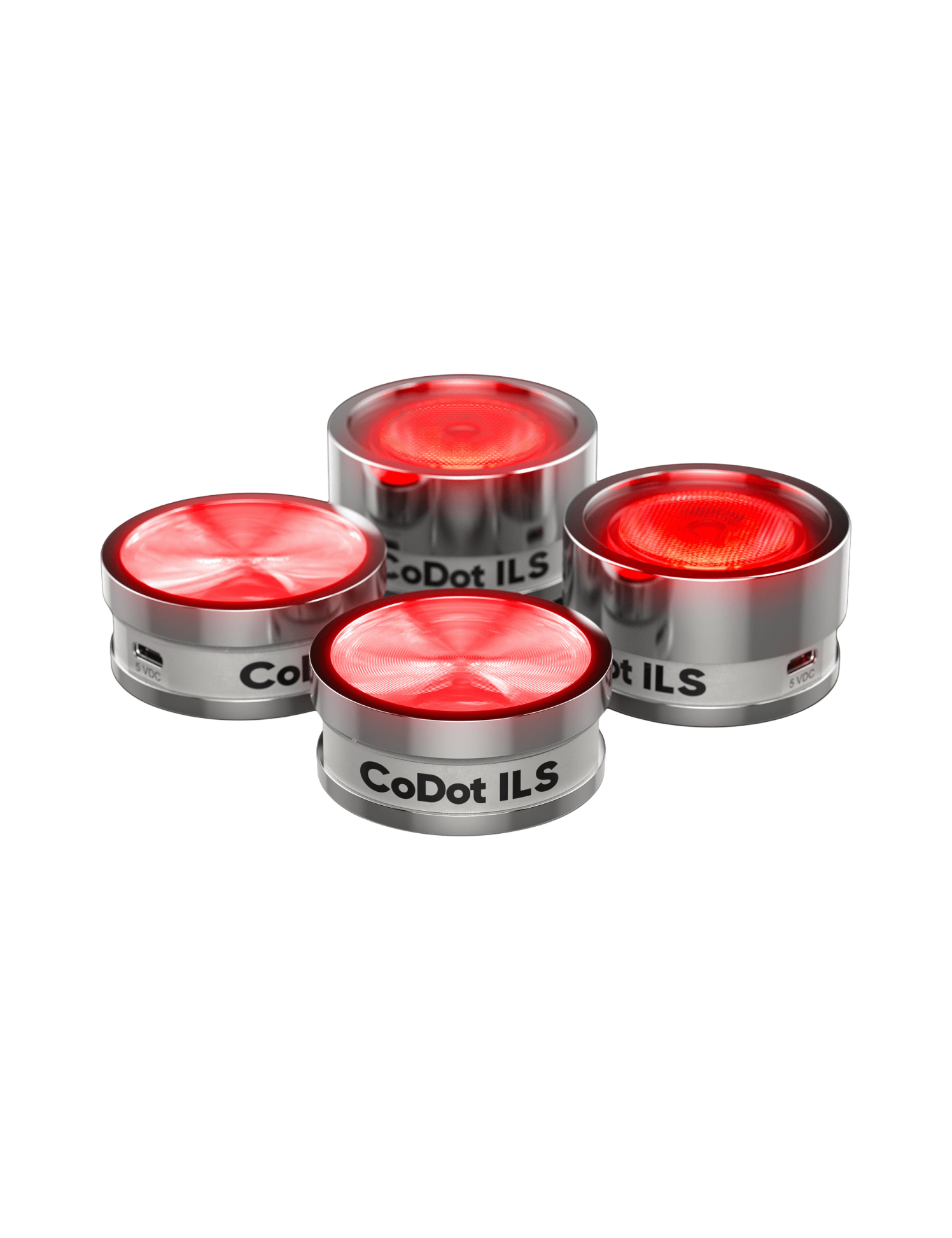

Chauvet DJ CoDot ILS – Pack of 4 versatile RGBW mini LED fixtures

The Chauvet DJ CoDot ILS is a set of 4 ultra-compact RGBW LED sources designed to easily add decorative lighting accents to any space. Thanks to their magnetic base, the CoDot ILS units can be instantly attached to metal surfaces, while the interchangeable lenses allow you to adapt the beam angle to each application.

Compatible with the ILS (Instant Light Shows) ecosystem, these fixtures integrate seamlessly into synchronized lighting setups and can be controlled wirelessly via built-in D-Fi™ or through the RF receiver when using an RFC or RFC-XL remote. CoDot ILS offers a flexible, intuitive solution for mobile entertainers, decorators, DJs, and anyone looking to illuminate hard-to-reach areas.

Each unit features an LED display for easy navigation through settings, as well as a USB-C port enabling daisy-chaining between fixtures. Their miniature format, easy installation, and versatile control options make them a discreet, efficient, and creative lighting tool.

Technical Specifications:

• Type: RGBW mini LED fixtures for subtle decorative lighting


• DMX Channels: 4 or 6


• Light Source: 1 quad-color RGBW 3 W LED (approx. 50,000 h lifespan)


• Strobe Rate: 0 – 20 Hz


• Beam Angle: 19° (installed lens) / 14° (included lens)


• Illuminance: 256 lux @ 2 m (19°) / 442 lux @ 2 m (14°)


• Wireless Control: ILS, built-in D-Fi, RF (RFC / RFC-XL)


• Operating Frequency: 2.4 GHz


• Connectivity: USB-C (linking between units)


• Threaded Insert: M6 (compatible with photo/video tripods)


• Electrical Load: 4 units @120 V / 4 units @230 V


• Input Voltage: 100 – 240 V AC, 50/60 Hz (auto-ranging)


• Power / Current: 7 W, 0.1 A @120 V / 230 V


• Dimensions: 57 × 54 × 24 mm


• Weight: 0.1 kg (per unit)


• Certifications: CE, UKCA, RoHS, FCC


• Included in the Box: 4 CoDot ILS, 8 lenses, 3 short USB cables (0.5 m), 3 long USB cables (2 m), power supply, carrying bag, quick start guide


• Optional Controllers: ILS Command, RFC, RFC-XL



Key Points:

• Pack of 4 RGBW mini LED fixtures for subtle and creative accent lighting


• Magnetic base for instant mounting on metal surfaces


• ILS, D-Fi, and RF compatibility for fully wireless control


• Interchangeable lenses to modify the beam angle (14° or 19°)


• Ultra-compact format with USB-C connectivity and simple navigation via LED display
