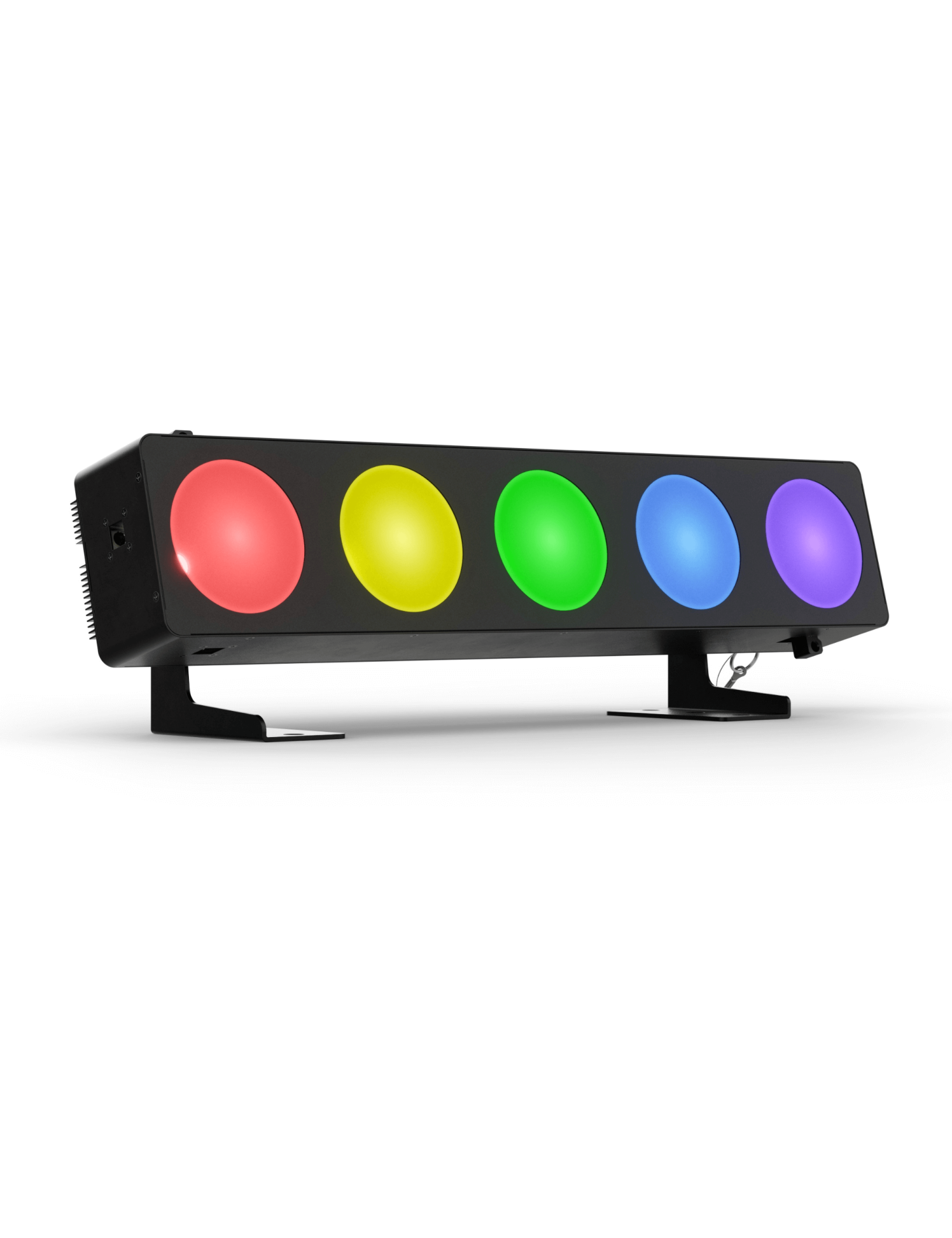

Chauvet DJ Core 5X1 ILS – Versatile COB RGB+WW LED fixture with pixel mapping and ILS compatibility
The Chauvet DJ Core 5X1 ILS is an ultra-versatile professional LED fixture capable of operating as a powerful wash, blinder effect, dynamic chase light or pixel-mappable unit. Thanks to its COB (Chip-On-Board) technology and wide reflector, it delivers saturated colors, natural warm whites and a broad, even diffusion ideal for stages, events and structural lighting setups.
Equipped with five 35 W RGB+WW quad-color LEDs, it delivers impressive brightness (2875 lumens) and professional color rendering suitable for applications requiring natural tones, powerful lighting or synchronized effects. Its 54° beam angle combined with a 75° field angle ensures wide, uniform coverage—perfect for wash installations or multi-fixture configurations.

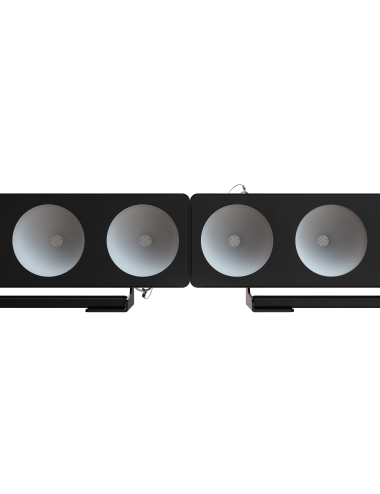

Thanks to its integrated toolless connection system, multiple Core 5X1 ILS fixtures can be linked within seconds to form lines, bars, columns or pixel-mappable matrices for creating spectacular visual effects such as chases, runway effects, LED walls, blinder bursts, and more.
ILS compatibility and wireless control

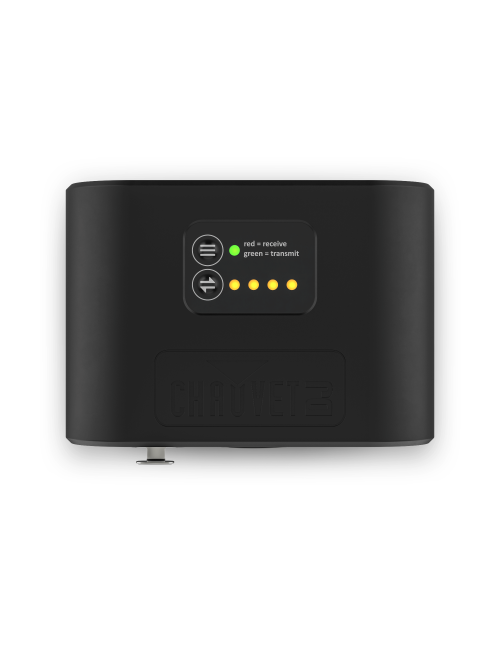

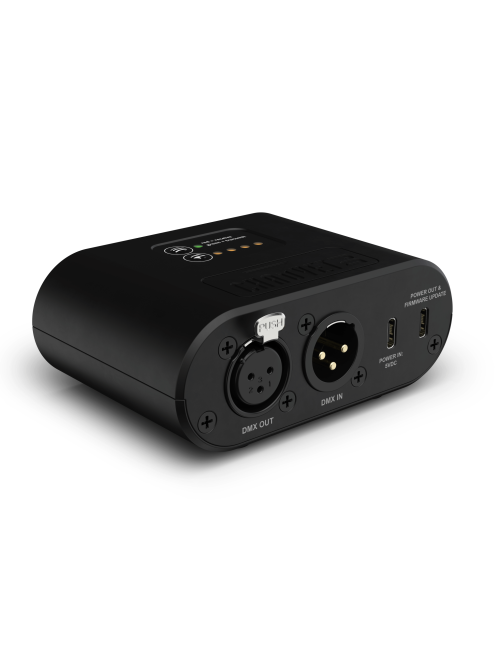

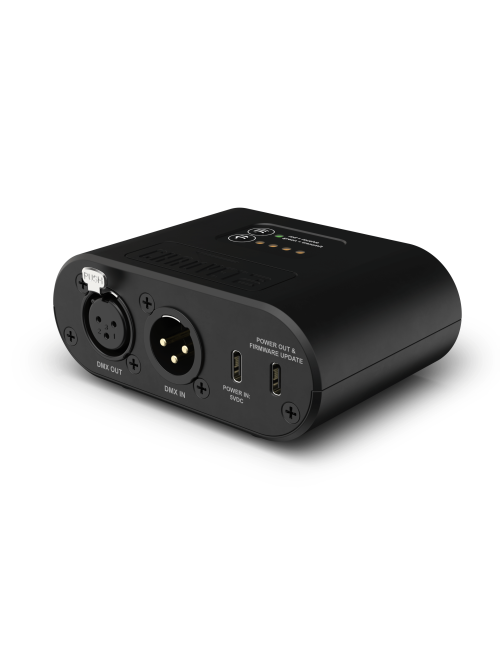

The Core 5X1 ILS is fully compatible with Chauvet DJ’s ILS (Integrated Lighting System) ecosystem, enabling extremely simple and automatic synchronization with all other ILS-enabled fixtures. When adding a D-Fi™ USB (sold separately), it also becomes capable of wireless DMX, simplifying setup and reducing cable runs on stage.
The fixture offers multiple control options: DMX (4, 8 or 22 channels), standalone, RF, Master/Slave or full ILS integration. It can be used as a standalone uplighter thanks to its stable floor design, or combined with other units for large-scale installations.
Rugged construction for touring use

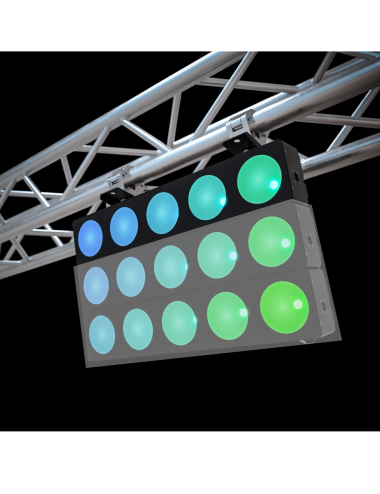

Designed to withstand the demands of frequent transport, the Core 5X1 ILS features a strong and durable chassis. It can be placed on the floor or mounted on structures, and its integrated connection hardware allows complex assemblies without additional accessories.
With its compact design and excellent mechanical strength, it is perfectly suited for rental companies, DJs, event professionals and technicians seeking a versatile, powerful and reliable fixture.
Technical Specifications:
- Type: Versatile LED fixture (pixel-mapping, chase, blinder, wash)
- Light source: 5 × 35 W RGB+WW quad-color LEDs (approx. 50,000 h lifespan)
- Technology: COB with wide reflector for natural and saturated colors
- Illuminance: 953 lux @ 2 m
- Lumens: 2,875 lm
- Beam angle: 54°
- Field angle: 75°
- DMX: 4, 8 or 22 channels
- DMX connectors: 3-pin and 5-pin XLR
- Control modes: DMX, ILS, RF, Master/Slave, standalone
- Wireless compatibility: D-Fi™ USB (optional), ILS
- Strobe: 0 to 20 Hz
- Power input: 100–240 V AC, 50/60 Hz (auto-ranging)
- Power consumption: 120 W, 1.8 A @ 120 V / 113 W, 1.1 A @ 230 V
- Power linking: 6 units @ 120 V – 10 units @ 230 V
- Cable length: 1.52 m (5 ft)
- Threaded insert: 13 mm
- Weight: 5 kg
- Dimensions: 600 × 79 × 120 mm
- Certifications: CE, RoHS
- Optional controllers: ILS Command, RFC, RFC-XL
Key Points:
- Complete versatility: Operates as wash, chase, blinder or pixel-mapping fixture.
- COB technology: Rich colors and natural warm whites with excellent rendering.
- ILS ecosystem: Simple synchronization with the entire Chauvet DJ ILS range.
- Toolless assembly: Quickly connect multiple units to form lines or matrices.
- Flexible control: DMX (4/8/22 channels), standalone, RF, Master/Slave, ILS, D-Fi™ USB.
- Rugged construction: Built to withstand intensive transport and repeated setups.
- Wide coverage: 54° beam and 75° field angle for a uniform and powerful output.
