Chauvet DJ 4BAR Hex ILS – RGBAW+UV Wash Lighting Bar with ILS and Wireless Control

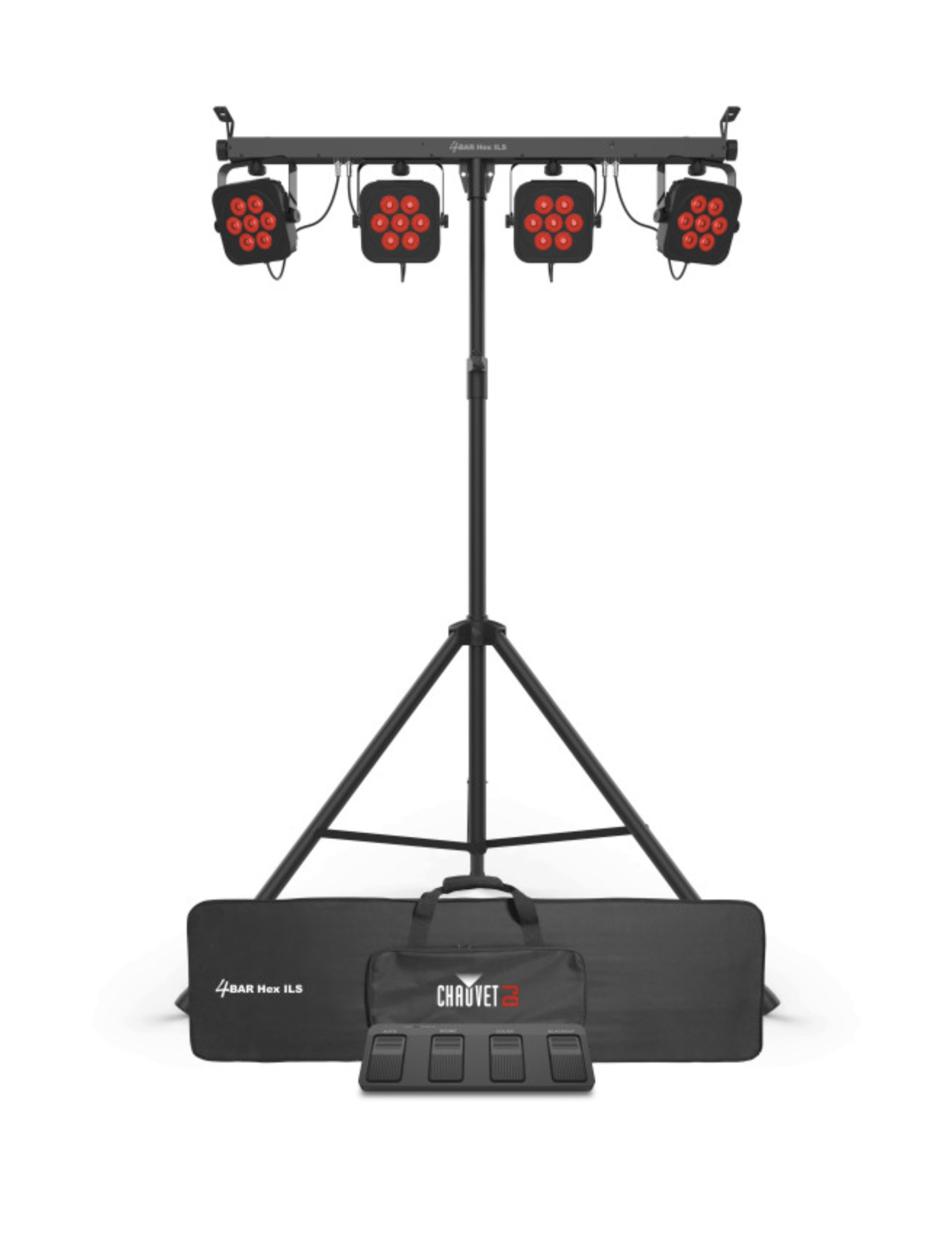

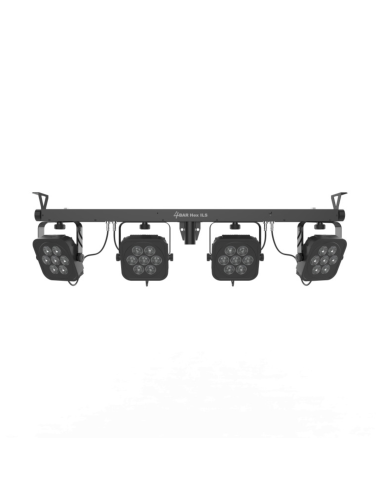

The 4BAR Hex ILS is a complete wash lighting solution that integrates four high-intensity hex LED projectors (RGBAW+UV) on a single bar. With 6-in-1 technology, it delivers an extended color spectrum and natural skin tones, perfect for both performers and stage atmospheres. Easy to transport and set up, the system comes with a sturdy tripod, carrying bag, and wireless footswitch, ensuring fast installation and intuitive operation without extra accessories.
Designed for flexibility, the 4BAR Hex ILS is compatible with the Integrated Lighting System (ILS), enabling instant integration into synchronized shows with other fixtures from the range. D-Fi™ USB compatibility (sold separately) allows for wireless DMX or master/slave control, removing cable clutter. In addition, its built-in USB port supports firmware updates, ensuring an evolving and future-ready solution.
Ideal for DJs, musicians, and event professionals, this system offers multiple control options: DMX, standalone, included wireless footswitch, or optional IRC-6 remote. The individually adjustable heads provide full stage or room coverage, while the built-in mounting bolts allow safe truss installation. With its automated programs, vivid colors, and versatile mounting options, the 4BAR Hex ILS becomes an essential tool to create powerful and spectacular lighting shows effortlessly.
Technical Specifications:
- Type: 4-head wash lighting system with hex LEDs (RGBAW+UV)
- ILS compatibility for coordinated light shows
- D-Fi USB compatibility (sold separately) for wireless DMX or master/slave control
- DMX Channels: 6, 8, or 27
- DMX Connectors: 3-pin XLR
- Light Source: 42 hex LEDs (RGBAW+UV), 5.1 W, approx. 50,000 hrs lifespan
- Strobe Rate: 0 to 20 Hz
- Beam Angle: 16°
- Field Angle: 25°
- Illuminance: 1,570 lux @ 2 m (per head)
- Input Voltage: 100 to 240 V AC, 50/60 Hz (auto-ranging)
- Power Consumption: 97 W, 1.3 A @ 120 V / 94 W, 0.7 A @ 230 V
- Dimensions: 1186 x 50.8 x 305 mm
- Weight: 5.5 kg
- Tripod Height: 2.2 m (7 ft 4 in)
- Compatible Tripod Diameter: 36.8 mm (1.5 in)
- Mounting Bracket: M10
- Certifications: CE, RoHS, UKCA
- Operating Frequencies: D-Fi 2.412–2.484 GHz / Footswitch 433 MHz
- Max Distance: 30.5 m (100 ft) for the footswitch
- Footswitch Power: 9 V battery
- Included Accessories: power cable, tripod with carrying bag, wireless footswitch, main carry bag, quick reference guide
Key Features:
- Complete wash lighting with high-intensity RGBAW+UV hex LEDs
- ILS compatibility for easy integration into synchronized shows
- Extended color spectrum and natural tones thanks to 6-in-1 LED technology
- Wireless control ready with included footswitch or optional IRC-6 remote
- Quick setup with included tripod and carrying bag
- Individually adjustable heads for full stage or room coverage
