Kinta FX ILS

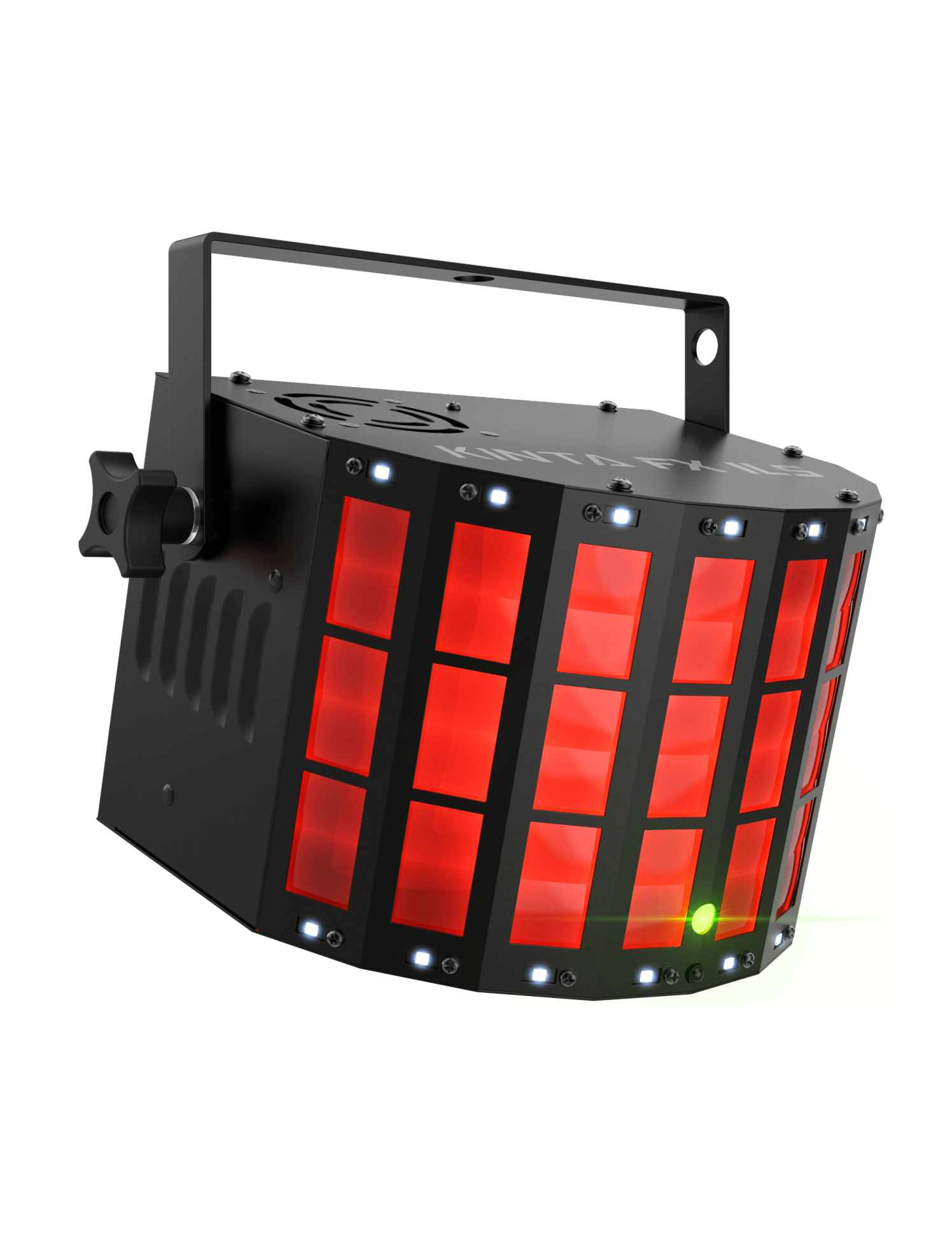

Chauvet DJ Kinta FX ILS – Compact Multi-Effect Projector

The Kinta FX ILS is a versatile multi-effect projector that combines Kinta LED, red/green laser, and SMD strobe in a compact format. It projects hundreds of sharp, dynamic beams, along with sweeping and strobe effects that create dazzling shows.

Compatible with the ILS (Instant Light Shows) ecosystem, it makes it easy to build coordinated lighting scenes. Its D-Fi™ USB connectivity (sold separately) allows wireless control in Master/Slave mode or via DMX. Easy to operate with its built-in display, automatic presets, and optional IRC-6 remote, the Kinta FX ILS is ideal for mobile DJs and event professionals alike.

Robust and compact, it offers an excellent power-to-size ratio and stands out by instantly transforming the atmosphere of any event.

Technical Specifications:

• Type: multi-effect projector (Kinta, laser, strobe)


• DMX Channels: 2 or 9


• DMX Connectors: 3-pin XLR


• Light Source:
  – Kinta: 4 LEDs (red, green, blue, white) 7.5 W, approx. 50,000 h lifespan
  – Strobe: 16 white SMD LEDs 5 W, approx. 50,000 h lifespan
  – Laser: red diode 650 nm / 100 mW, green diode 520 nm / 30 mW


• Strobe Rate: 0 – 20 Hz


• Coverage Angle: 118°


• Power Linking: 17 units @120 V / 33 units @230 V


• Input Voltage: 100 – 240 V AC, 50/60 Hz (auto-ranging)


• Power / Current: 25 W, 0.5 A @120 V / 24 W, 0.2 A @230 V


• Dimensions: 187 x 261 x 187 mm


• Weight: 1.7 kg


• Certifications: CE, FDA, RoHS, UKCA


• Optional Controllers: IRC-6


• Laser Classification: EN/IEC 60825-1:2014, FDA compliant (Laser Notice No. 56, May 8, 2019)



Included in the Box:

• Power cable


• Warranty card


• User manual
