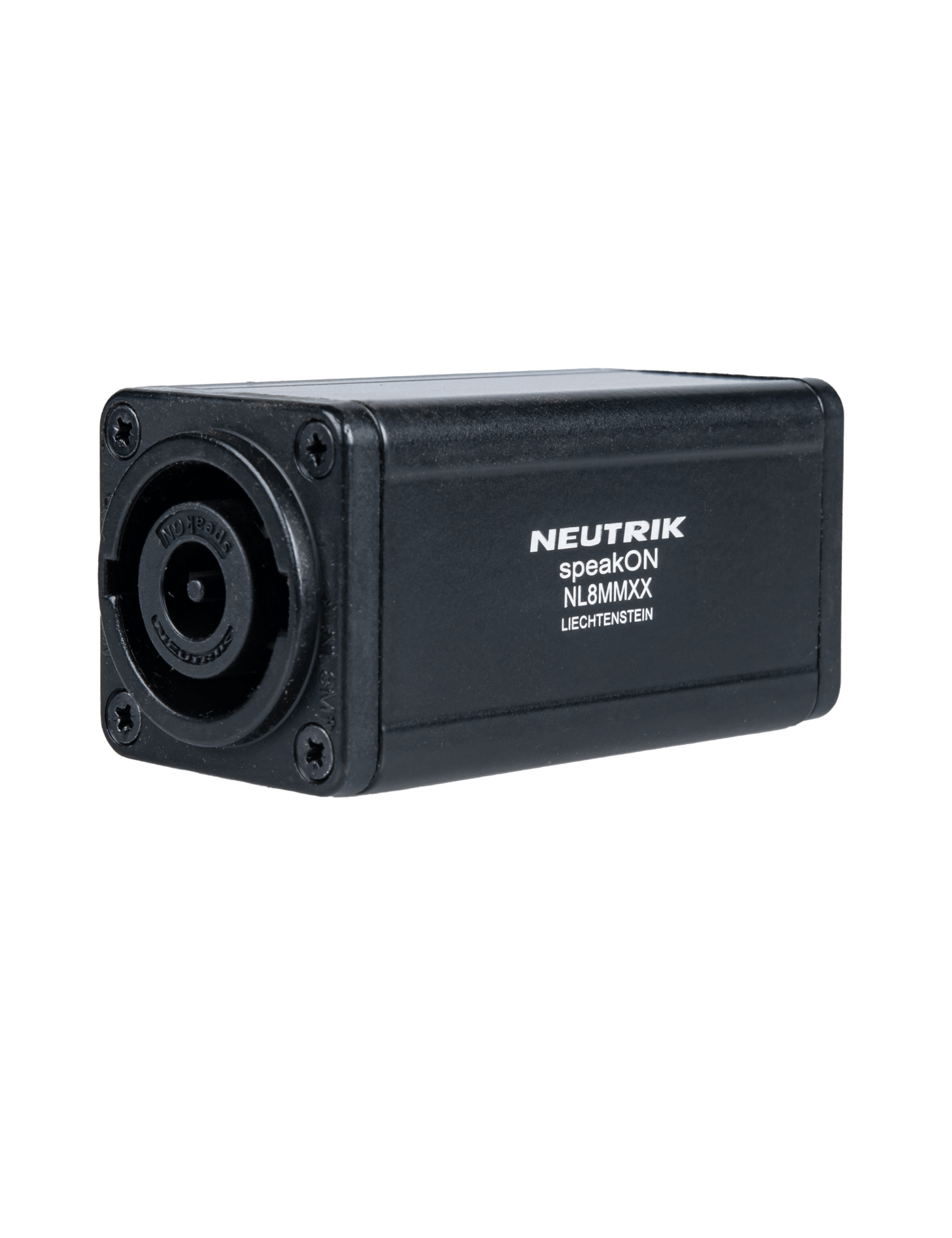

Neutrik NL8MMXX Speakon Adapter 8 points

Reference: NL8MMXX
€35.00
€23.00 - €12.00 Tax included

Neutrik adapter NL8MMXX SpeakON 8 points male/male with quick lock. For cable extension for pro audio speaker

Quantity
  In stock
Shipped within 1 to 2 days

reassuarence-customicon

Manufacturer's warranty: 2 years

reassuarence-customicon

Free delivery from €99

reassuarence-customicon

Easy payment: satisfied or refunded

reassuarence-customicon

Need help ?

I-Ineutrik NL8MMXX SpeakON 8 point adapter is a professional solution for the extension of high power speaker cables via a connection male-male 8 pins. Designed with a robust metal housing and one quick Lock stainless steel lock, it guarantees reliable and secure connection in stage or studio configurations. This model allows to chain two 8p SpeakON cables safely, without loss of signal or risk of mechanical rupture, even under tension.

Compared to its predecessor NL8MM NL8MMXX benefits from better mechanical hold rated current of 25 A RMS continuous, against 15 A for the old version, and zinc alloy shell chromed black finish much more resistant. It is also uL94 V-0 certified for a better fire resistance, making it a more reliable choice for demanding environments, whether they are tours, fixed installations or professional providers.



Characteristics:

  • SpeakON Adapter 8 poles

  • Connectors : male / male

  • Locking : Stainless steel Quick Lock system

  • Contact resistance : < 3 m

  • Assigned voltage : 250 V AC

  • Nominal current by contact : 25 A RMS (continuous)

  • Flame resistance : UL 94 V-0

  • Mechanical life : > 5000 cycles

  • Operating temperature : -30 °C to +80 °C

  • Body : zinc moulded under pressure, chrome black finish

  • Contacts : copper alloy, silver plated (Ag)

  • Insert Polyamide (PA 6.6)





Key Points:


  • SpeakON 8 pole male/male adapter for cable extensions

  • Robust metal housing with chromed black finish

  • Quick Lock of stainless steel

  • Nominal current 25 A RMS by contact

  • Certification UL94 V-0 for increased flame resistance

Manufacturer

Data sheet

Composition
Case: Zinc moulded under pressure
Contact: Copper alloy, silver plated
Insert: Polyamide PA 6.6, V-0 (UL 94)
Ownership
Quick Lock system
Connector
Speakon 8 poles
Format
SpeakON Adapter
Tension
250 V AC
Finishing
Black chrome
Fire classification
Ul 94 v-0
