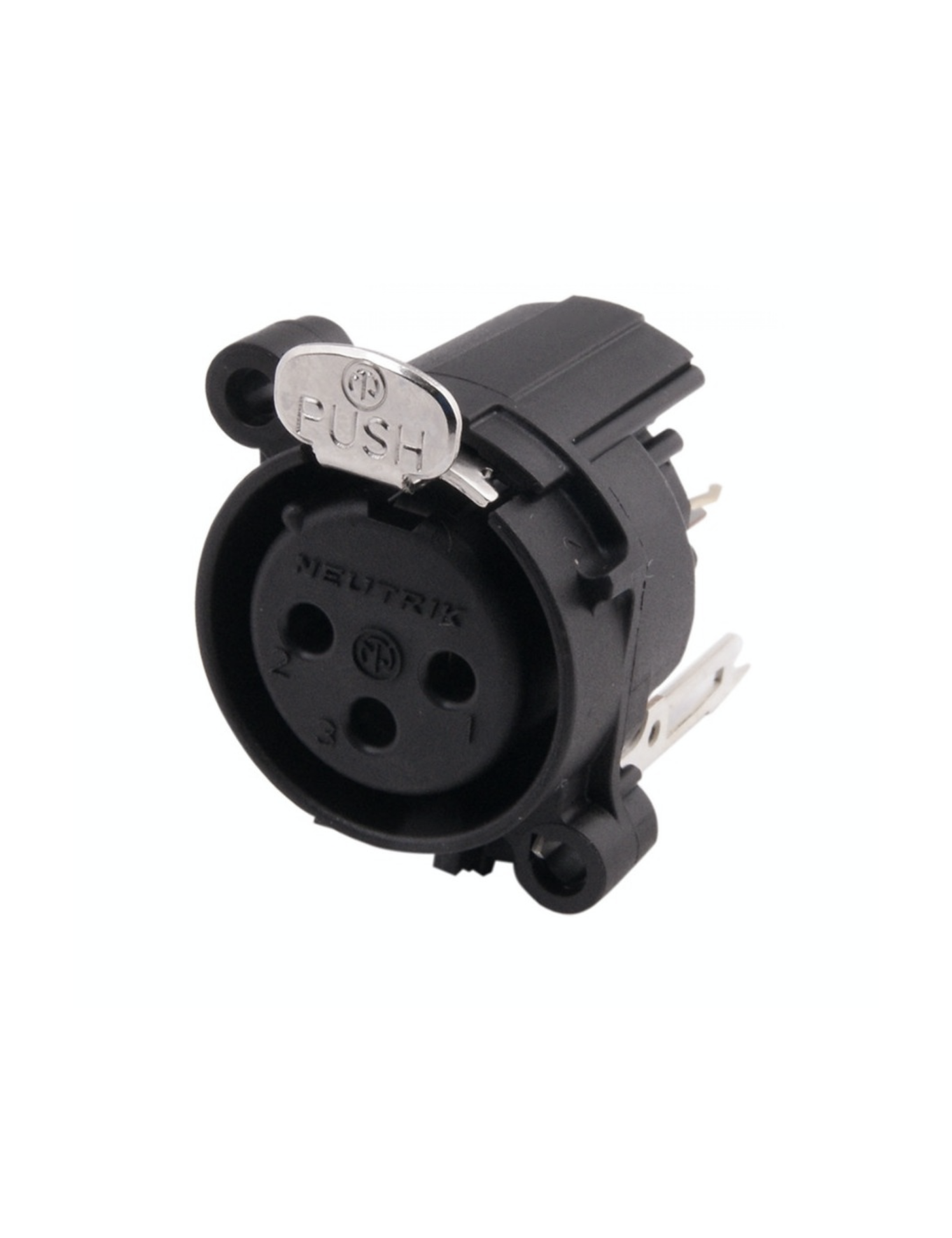

Neutrik NC3FAV2 Embase PCB XLR Female 3 pins

The NC3FAV2 is a female XLR connector 3 points designed for vertical mounting on printed circuit board (PCB). With a plastic round body in compact A format, this model is ideal for applications requiring high density connectors (only 23 mm spacing between centres). Its optimized construction includes hard gold plated tulip contacts with polished contact areas, ensuring reliable conductivity and long life, even in intensive use environments.

The base incorporates a separate mass contact, connected to both the male connector shell and the front panel, ensuring a grounding independent of pin 1. The lock lock system steel perfectly secures the connection. Compliant with standards UL94 V-0 and IEC 61076-2-103, the NC3FAV2 meets the requirements of professional environments while remaining lightweight, economical and particularly well suited to compact audio equipment.

Characteristics:

• Connector XLR 3 pin female


• Assembly : Vertical on PCB


• Frame format : A (plastic round bodies)


• Contact resistance : < 6 m


• Mount orientation : Back (vis A-screw)


• Contacts : CuSn6 bronze contacts


• Insert PA6.6 30% GR


• Life > 1000 cycles


• Protection index : IP40


• Nominal current by contact : 6 A


• Operating temperature : -30 °C to +80 °C


• Flammability : UL 94 V-0


• Approvals : UL, IEC 61076-2-103 compliant


• Weldability : IEC 68-2-20 compliant

Key Points:

• Female XLR connector 3 points in compact format A, vertical mounting PCB


• Lightweight plastic body, ideal for high density connectors


• Gold plated tulip contacts, conductivity and reliability ensured


• Separate mass contact for optimal shielding, independent of pin 1


• Locking robust, >1000 cycles of use
