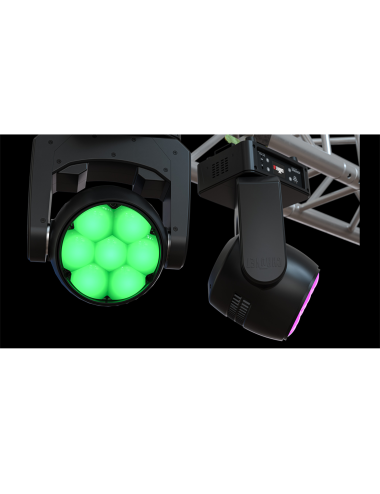

Chauvet DJ Sentinel Wash Q7Z ILS – Compact RGBW Wash moving head with motorized zoom

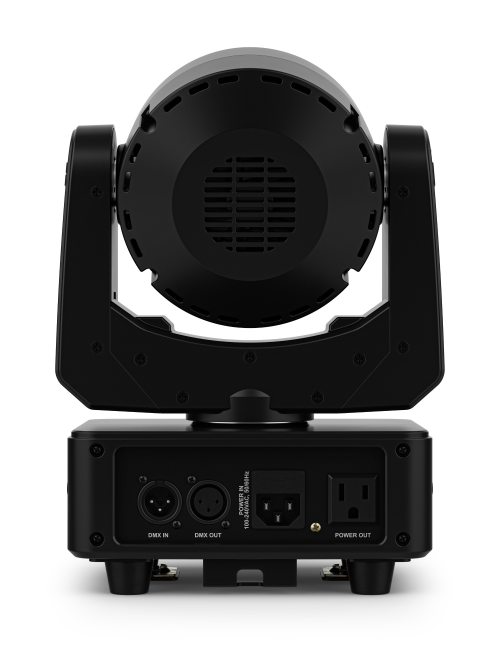

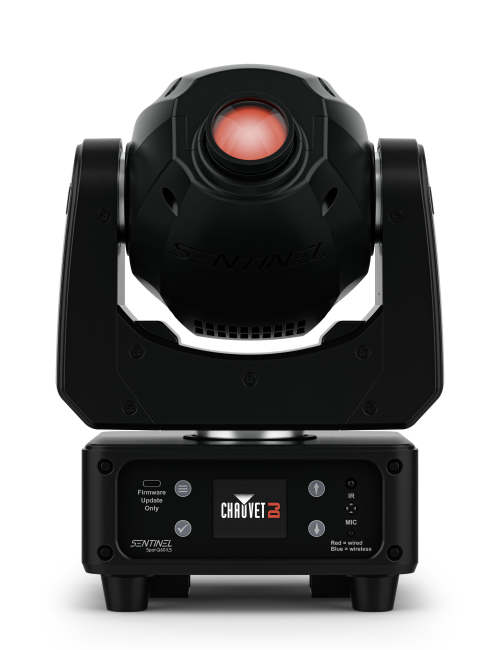

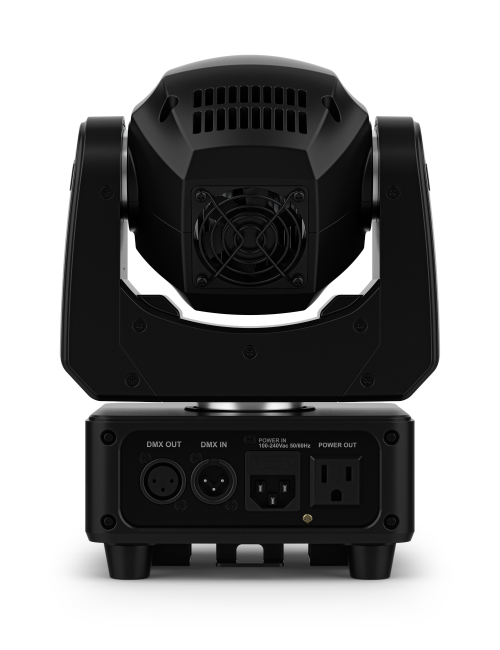

The Sentinel Wash Q7Z ILS is part of a new generation of moving heads designed to deliver power, modern features and seamless integration, alongside the Sentinel Spot Q60 ILS and Sentinel Wash Q120. This series covers the full range of professional lighting needs — Spot, wide Wash and compact Wash — while benefiting from full compatibility with the ILS ecosystem.

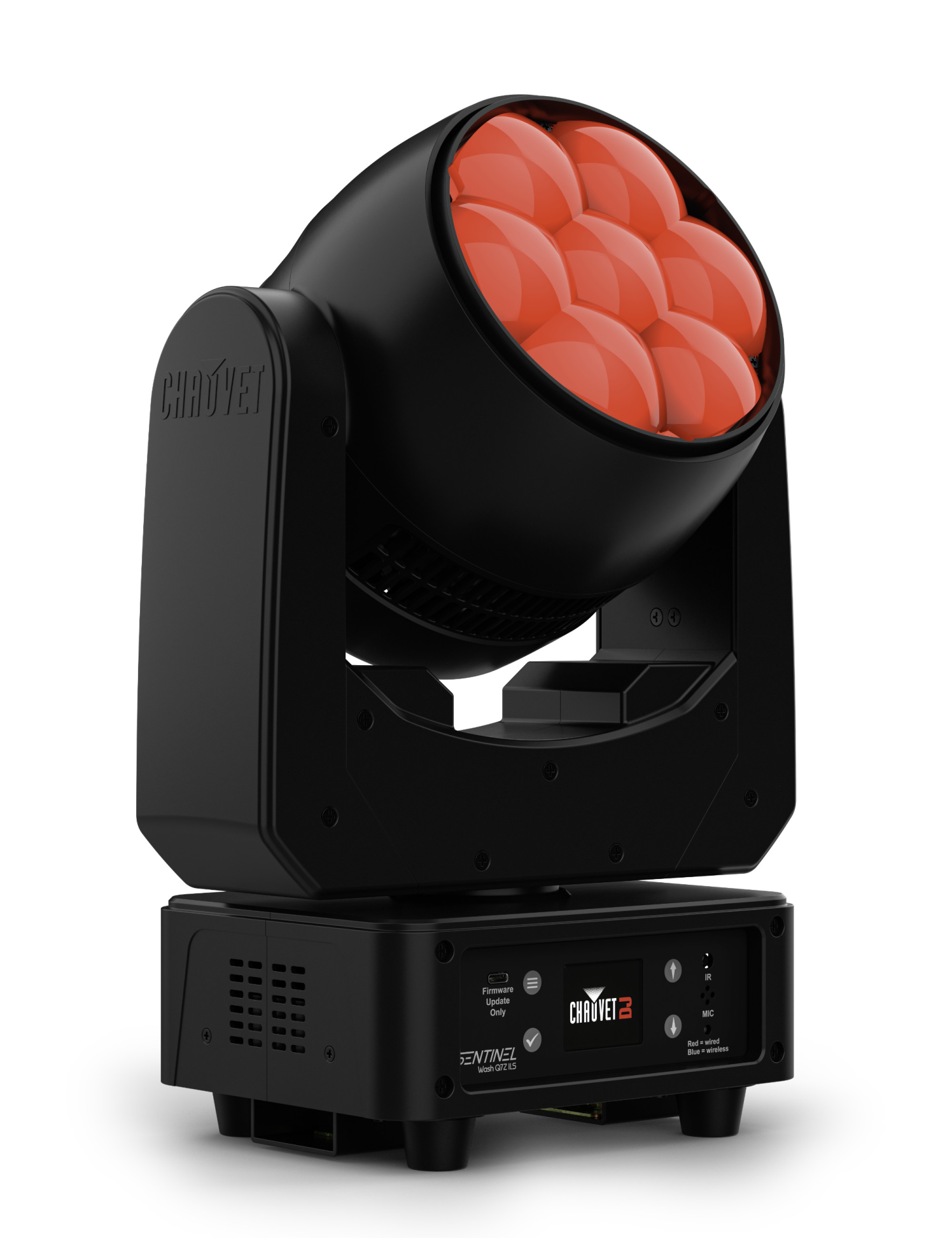

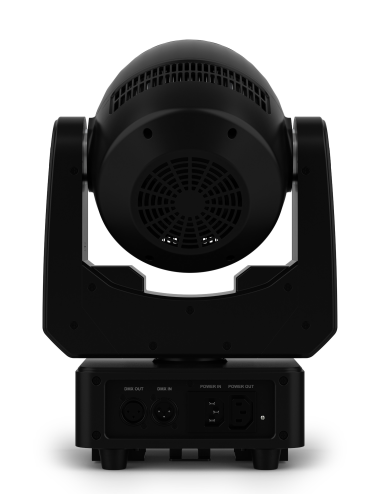

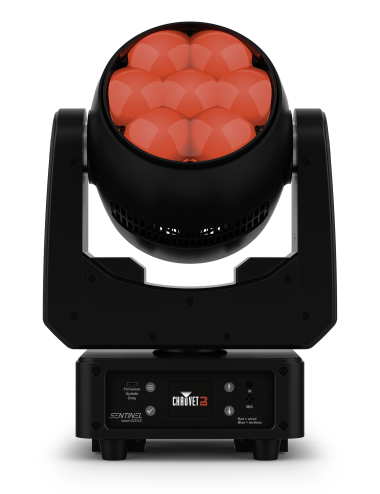

The Sentinel Wash Q7Z ILS features 7 x 20 W RGBW LEDs delivering a total output of 140 W. It produces intense, uniform and perfectly blended colors, suitable for stages, dancefloors and dynamic architectural lighting. Its motorized zoom (5°–27°) allows you to switch instantly from a tight, punchy beam to a wide, immersive wash.
Thanks to its built-in D-Fi transceiver, the Wash Q7Z ILS can communicate wirelessly via DMX or through the ILS (Instant Light Shows) system, making synchronization with other fixtures in the ecosystem instant, intuitive and highly reliable.
Like the rest of the range, it features a Totem mode that keeps the beam focused toward the audience or dancefloor, ensuring consistent visual impact even during complex movements. Its fast and smooth Pan/Tilt movements enable dynamic effects while maintaining excellent precision.
The Sentinel Wash Q7Z ILS offers simple and intuitive operation thanks to its full-color LCD display, power linking capability to reduce cabling, and a compact, rugged design perfectly suited for mobile DJs, event professionals and fixed installations.
Versatile, powerful and extremely easy to integrate into an ILS setup, the Sentinel Wash Q7Z ILS is the ideal solution for achieving a modern, efficient and ready-to-use wash lighting effect.
Specifications:
- Type: Compact RGBW wash moving head with motorized zoom
- Light source: 7 x 20 W RGBW LEDs (140 W total), lifespan approx. 50,000 h
- Zoom: 5° to 27° (motorized)
- Pan / Tilt: 540° / 225°
- Pan/Tilt ranges: 180°, 360°, 540° pan / 90°, 180°, 225° tilt
- DMX: 9 or 14 channels
- DMX connectors: 3-pin XLR
- Compatibility: ILS + built-in D-Fi (wireless DMX/ILS)
- Strobe rate: 0 to 20 Hz
- PWM frequency: 1,200 Hz
- Illuminance: 30,537 lux @ 2 m (5°) – 3,390 lux @ 2 m (27°)
- Power linking: 6 units @ 120 V; 12 units @ 230 V
- Input voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and current: 148 W, 1.2 A @ 120 V, 60 Hz – 146 W, 0.7 A @ 230 V, 50 Hz
- Dimensions: 115 x 61 x 35 mm
- Weight: 6.3 kg
- Certifications: CE, RoHS, FCC
- Cable length: 1.5 m
- Optional controllers: IRC-6, ILS Command
- Included: Power cable, hanging bracket, quick reference guide
Key Points:
- Motorized zoom 5°–27° for tight beams or wide wash coverage
- Full ILS compatibility for instant synchronized light shows
- Built-in D-Fi for wireless DMX or ILS control
- 7 powerful RGBW LEDs (140 W) for rich, uniform colors
- Smooth movement with Pan 540° / Tilt 225°
- Totem mode to keep beams focused on the dancefloor
- 1,200 Hz PWM ideal for video recording
- Compact and lightweight, perfect for mobile DJs and event pros
- Power linking to reduce cabling
