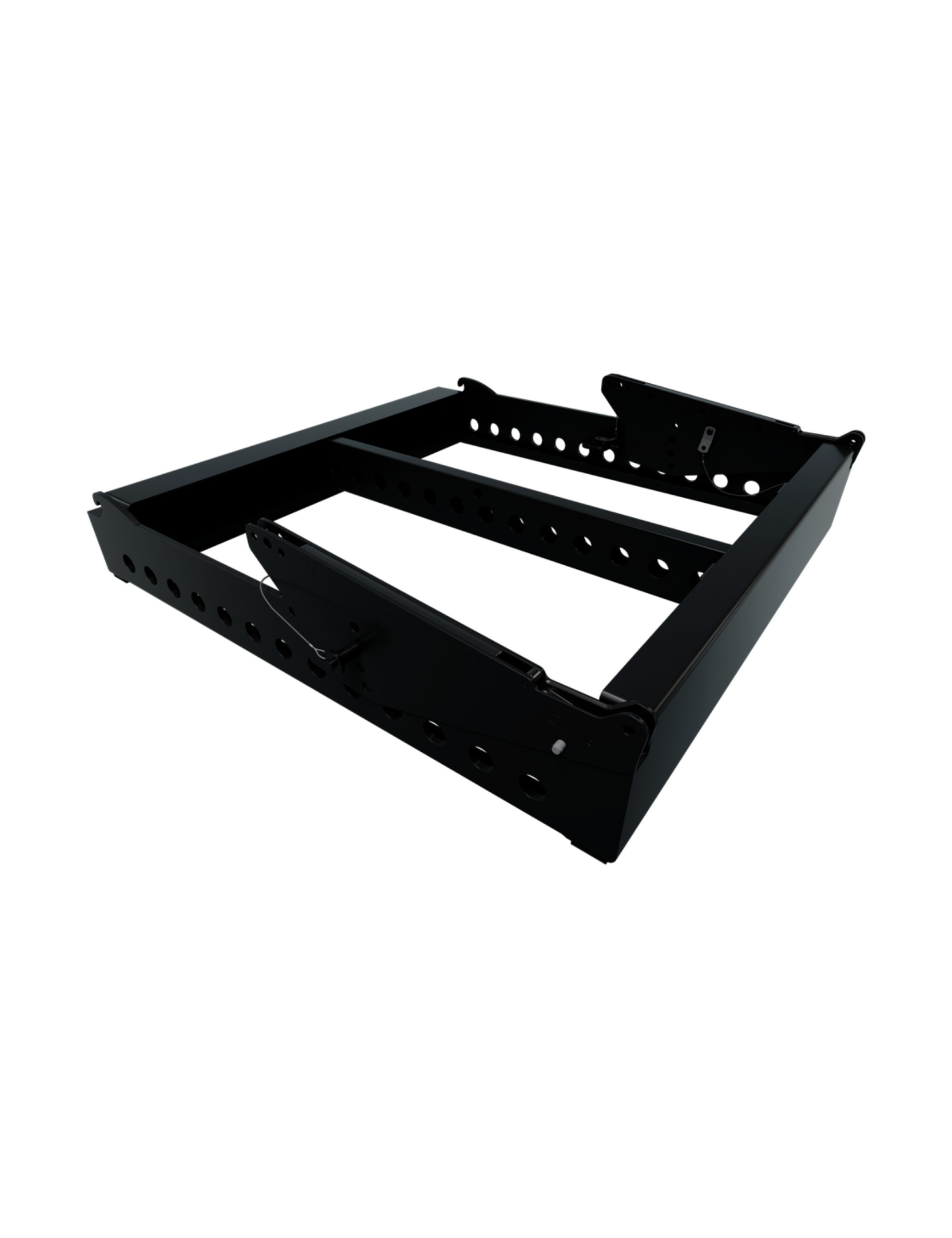

QSC LA108 Array Frame

QSC LA108 Array Frame – Suspension and ground-stack frame for LA108 systems

The LA108 Array Frame is a dedicated rigging frame designed specifically for deploying QSC LA108 line array systems. Its reinforced steel structure ensures safe and reliable suspension while providing excellent stability for flown configurations. With its robust design, the frame supports up to six LA108 loudspeakers, making it ideal for rental companies, production providers, and permanent installations requiring dependable, professional-grade hardware.

Versatile and practical, the Array Frame also supports ground-stack configurations. Users can stack up to four LA108 units on a LS118 or KS118 subwoofer (upright), or on two LS118 / KS212C subwoofers when positioned horizontally. Compact, durable, and easy to handle, the LA108 Array Frame is an essential accessory for fully leveraging the modularity of the QSC L Class array system.

General Specifications:

• Type: Official rigging frame for QSC LA108 systems


• Suspension capacity: Up to 6 × LA108 loudspeakers


• Ground-stack compatibility:
  • 4 × LA108 on 1 × LS118 or KS118 (upright sub)
  • 4 × LA108 on 2 × LS118 or KS212C (horizontal sub)


• Dimensions (H × W × D): 108 × 476 × 600 mm


• Net weight: 10.9 kg


• Shipping dimensions: 191 × 559 × 683 mm


• Shipping weight: 12.5 kg
