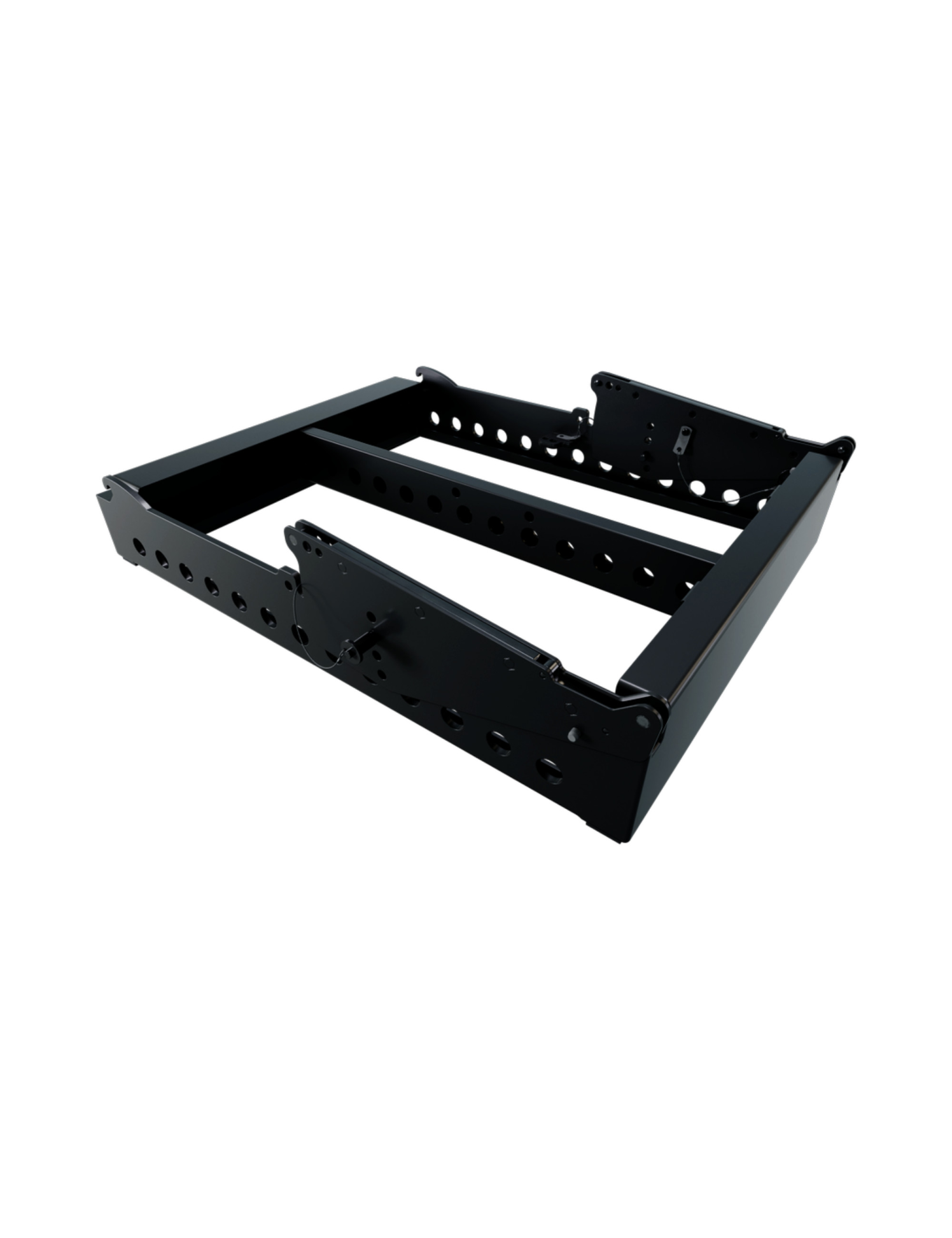

QSC LA112 Array Frame

QSC LA112 Array Frame – Flying and stacking frame for LA112 systems

The LA112 Array Frame is a dedicated flying frame designed for deploying LA112 line array systems developed by QSC. Its reinforced steel construction ensures secure and stable suspension, supporting up to six LA112 loudspeakers in a vertical rigging configuration. This makes it an ideal solution for rental companies, touring providers, and permanent installations requiring durable, reliable hardware that meets professional industry standards.

Versatile and easy to integrate, the LA112 Array Frame also supports ground-stack configurations: up to three LA112 units can be stacked on one or two LS118 or KS212C subwoofers when they are positioned on their side. For these ground-stack configurations, the LA112-AF used together with the LA112-KIT-SA (stacking adapter), or the equivalent LA108-AF / LA108-KIT-SA accessories, must be mounted to engage with the M20 threaded socket located on the top or side of the LS118 / KS212C subwoofers.

Compact, rugged, and straightforward to handle, the LA112 Array Frame is an essential accessory for taking full advantage of the modularity and performance of the QSC L Class line array system.

General Specifications:

• Type: Official flying frame for QSC LA112 systems


• Suspension capacity: Up to 6 LA112 loudspeakers


• Ground-stack compatibility:


  • 3 × LA112 on 1 × LS118 or KS212C (side-laid sub)
  • 3 × LA112 on 2 × LS118 or KS212C (two side-laid subs)


• Dimensions (H × W × D): 108 × 583 × 600 mm


• Net weight: 11.6 kg


• Shipping dimensions: 191 × 668 × 759 mm


• Shipping weight: 13.5 kg
