AT2010

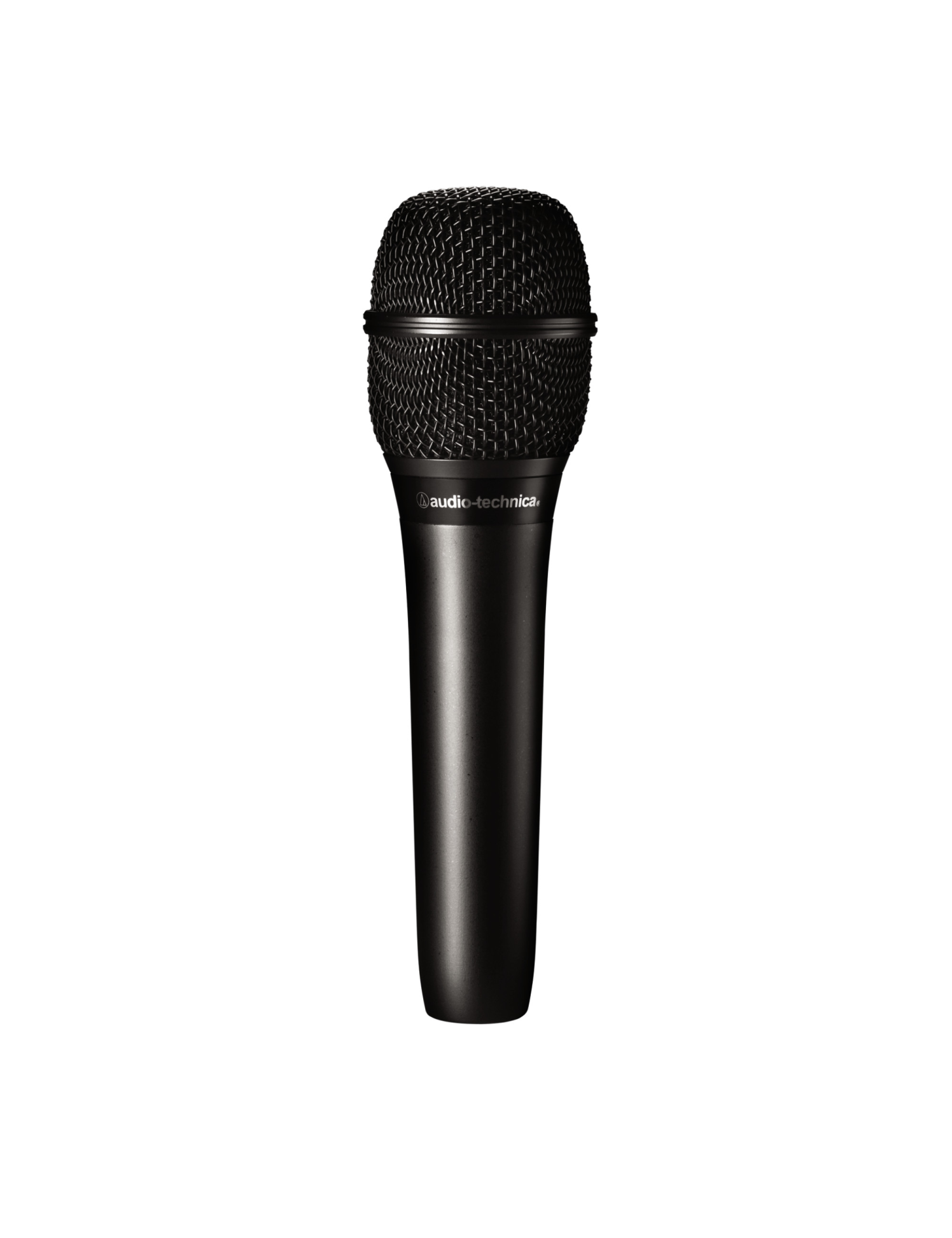

Audio-Technica AT2010 – The cardioid condenser microphone that delivers studio quality on stage

The AT2010 is a condenser microphone designed for live vocals, engineered to provide singers and performers the same clarity, precision, and intelligibility as studio microphones from the 20 Series. It features the same 16 mm low-mass diaphragm as the renowned studio microphone AT2020, known for its transparency and natural sound.

With its extended frequency response and excellent transient response, the AT2010 delivers a pure, balanced, and faithful sound, perfectly suited for soloists, jazz performances, places of worship, and any situation where vocal clarity and pitch accuracy are essential.

The cardioid pattern effectively reduces side and rear pickup, providing better vocal isolation and improved monitor control. Its robust metal construction ensures reliable use over many years, even in demanding stage environments.

The AT2010 also features a multi-layer grille that minimizes plosives, sibilance, and breath sounds without compromising high-frequency clarity. It can handle a high sound pressure level and offers exceptional dynamic range, enhancing its versatility.

Supplied with a Quiet-Flex™ shock mount, a 5/8”-27 → 3/8”-16 adapter, and a soft protective pouch, the AT2010 is stage-ready right out of the box.

Technical Specifications:

• Type: Electret condenser


• Polar pattern: Cardioid


• Frequency response: 40 – 20,000 Hz


• Sensitivity: -48 dB (3.9 mV) ref. 1V/Pa (1 kHz)


• Maximum SPL: 136 dB SPL (1 kHz at 1% THD)


• Dynamic range: 113 dB (1 kHz at max SPL)


• Signal-to-noise ratio: 71 dB (1 kHz/Pa)


• Power supply: 48V phantom, 2 mA typical


• Weight: 233 g


• Dimensions: Length 179.1 mm; Max Ø 50.8 mm


• Connector: Built-in 3-pin XLRM

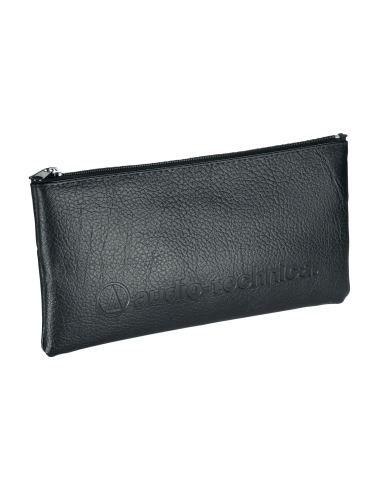

• Included accessories: Quiet-Flex™ AT8470 shock mount, 5/8"-27 → 3/8"-16 adapter, soft pouch



Key Points:

• Studio-quality sound on stage thanks to the 16 mm diaphragm derived from the AT2020.


• Exceptional vocal clarity, ideal for soloists, jazz, and places of worship.


• Cardioid pattern for improved source isolation.


• Multi-layer grille reducing plosives, breath sounds, and sibilance.


• Wide dynamic range and high SPL handling.


• Robust metal construction built to last.


• Gold-plated XLRM connector resistant to corrosion.


• Quiet-Flex™ mount included for flexible, silent positioning.


• Complete solution with adapter and protective pouch.
